Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2017-12-03 23:17:15.2 |
| Date & Time (Local) | 1396/9/13 02:47:15.2 |

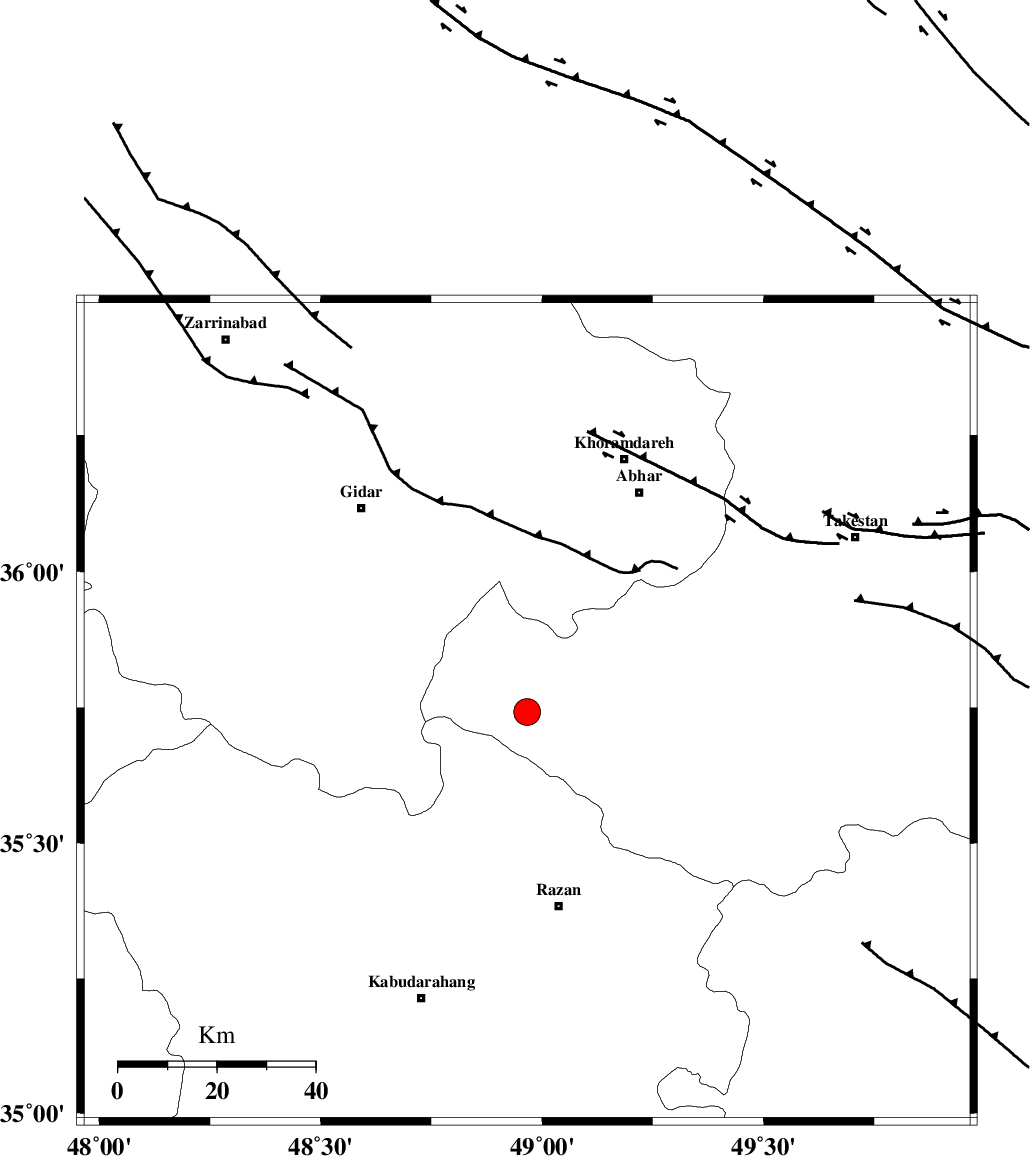

| Location | Lat:35.742 Lon: 48.966 |
| Region | Ghazvin Province, 40 km North of Razan |
Nearest Cities |
|
| 27 km North East of Kahla, Zanjan Province | |
| 29 km West of Ab-e garm, Ghazvin Province | |
| 29 km North East of Khorandeh, Hamedan Province | |
| 30 km North West of Avaj, Ghazvin Province | |
| 36 km North East of Damag, Hamedan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 15 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 32 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 57 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123265 | IIEES | GIDE | N | 1070.3 | 0.34 | 2017-12-03 23:18:06 | 2017-12-04 04:41:00 | n |
| 123266 | IIEES | GIDE | E | 904.3 | 0.54 | 2017-12-03 23:18:08 | 2017-12-04 04:41:00 | n |
| 123267 | IIEES | SNGE | E | 1390.4 | 0.35 | 2017-12-03 23:18:02 | 2017-12-04 04:41:00 | n |
| 123268 | IIEES | SNGE | N | 2477.3 | 0.47 | 2017-12-03 23:18:02 | 2017-12-04 04:41:00 | n |
| 123269 | IIEES | KHMZ | E | 507.4 | 0.39 | 2017-12-03 23:18:26 | 2017-12-04 04:41:00 | n |
| 123270 | IIEES | KHMZ | N | 567.2 | 0.62 | 2017-12-03 23:18:29 | 2017-12-04 04:41:00 | n |
| 123271 | IIEES | GHVR | E | 416.2 | 0.84 | 2017-12-03 23:18:40 | 2017-12-04 04:41:00 | n |
| 123272 | IIEES | GHVR | N | 280.5 | 0.68 | 2017-12-03 23:18:42 | 2017-12-04 04:41:00 | n |
| 123273 | IIEES | DAMV | E | 297.6 | 0.82 | 2017-12-03 23:18:39 | 2017-12-04 04:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2017-12-03 23:17:33 | -0.31 | y | 106 | 346 | |||
| IIEES | GIDE | Z | Pg | E | 2017-12-03 23:17:41 | -0.12 | y | 156 | 33 | |||
| IIEES | ASAO | Z | Pg | E | 2017-12-03 23:17:42 | -0.33 | y | 164 | 144 | |||
| IIEES | SNGE | Z | Pg | E | 2017-12-03 23:17:41 | -0.9 | y | 164 | 244 | |||
| IIEES | THKV | Z | Pg | E | 2017-12-03 23:17:44 | 0.03 | y | 174 | 83 | |||
| IIEES | CHTH | Z | Pg | E | 2017-12-03 23:17:46 | -0.64 | y | 196 | 84 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-03 23:17:53 | 0.4 | y | 240 | 157 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-03 23:17:55 | 1.35 | n | 4 | 251 | 123 | ||
| IIEES | DAMV | Z | Pn | E | 2017-12-03 23:17:57 | 0.38 | y | 272 | 92 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-03 23:18:06 | 0.42 | y | 345 | 228 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-03 23:18:07 | 0.28 | y | 354 | 345 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-03 23:18:23 | 0.55 | y | 481 | 132 | |||
| IIEES | MAKU | Z | Pn | E | 2017-12-03 23:18:32 | 1.02 | y | 551 | 318 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-03 23:18:42 | -0.14 | y | 638 | 124 | |||
| IIEES | MRVT | Z | Pn | E | 2017-12-03 23:18:45 | -0.4 | y | 671 | 69 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-03 23:19:00 | 0.42 | y | 782 | 105 | |||
