Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2017-12-04 00:32:46.2 |
| Date & Time (Local) | 1396/9/13 04:02:46.2 |

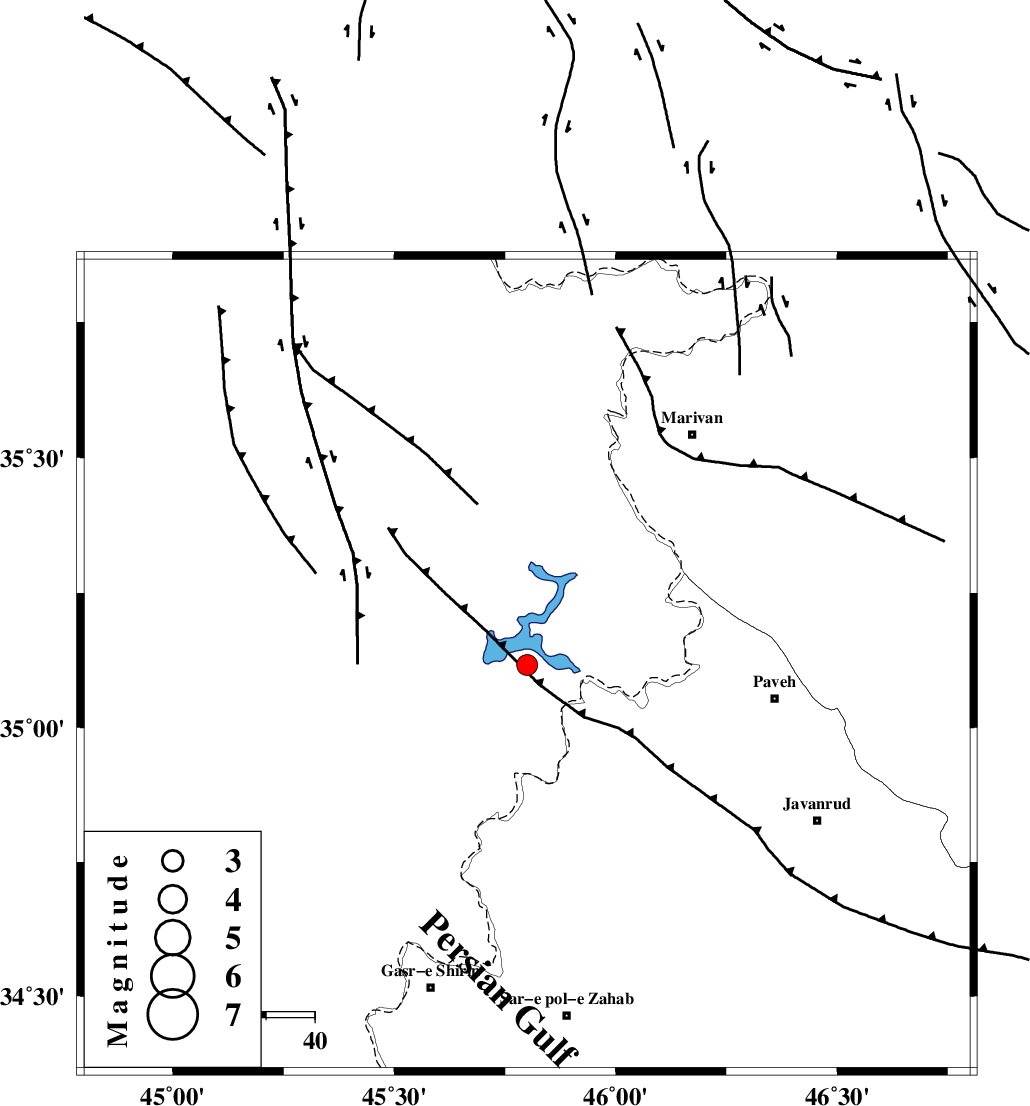

| Location | Lat:35.116 Lon: 45.8 |
| Region | Iraq, 39 km North of Tazehabad |
Nearest Cities |
|
| 15 km North West of Markhil, Kermanshah Province | |
| 33 km North West of Dehsheykh, Kermanshah Province | |
| 33 km North West of Bayangan, Kermanshah Province | |
| 37 km North West of Mazran, Kermanshah Province | |
| 37 km North West of Dudan, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 14 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 46 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 56 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123342 | IIEES | SNGE | E | 147.9 | 0.42 | 2017-12-04 00:33:35 | 2017-12-04 07:57:00 | n |
| 123343 | IIEES | ILBA | N | 212.4 | 0.63 | 2017-12-04 00:33:39 | 2017-12-04 07:57:00 | n |
| 123344 | IIEES | KHMZ | N | 14.8 | 0.64 | 2017-12-04 00:34:56 | 2017-12-04 07:57:00 | n |
| 123345 | IIEES | KHMZ | E | 11.3 | 0.51 | 2017-12-04 00:35:03 | 2017-12-04 07:57:00 | n |
| 123346 | IIEES | GIDE | N | 11.1 | 0.59 | 2017-12-04 00:34:58 | 2017-12-04 07:57:00 | n |
| 123347 | IIEES | GIDE | E | 15.2 | 0.59 | 2017-12-04 00:34:58 | 2017-12-04 07:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-12-04 00:33:10 | -0.18 | y | 141 | 91 | |||
| IIEES | SNGE | E | Sg | E | 2017-12-04 00:33:28 | -0.15 | y | 141 | 91 | |||
| IIEES | ILBA | Z | Pg | E | 2017-12-04 00:33:15 | -0.35 | y | 170 | 167 | |||
| IIEES | ILBA | N | Sg | E | 2017-12-04 00:33:36 | 0.08 | y | 170 | 167 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-04 00:33:33 | -0.11 | y | 312 | 56 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-04 00:33:44 | 0.9 | y | 392 | 98 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-04 00:33:46 | 0.17 | y | 412 | 111 | |||
| IIEES | GIDE | Z | Pn | E | 2017-12-04 00:33:47 | -0.09 | y | 421 | 60 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-04 00:33:50 | -0.1 | y | 450 | 24 | |||
