Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2017-11-30 12:52:46.1 |
| Date & Time (Local) | 1396/9/9 16:22:46.1 |

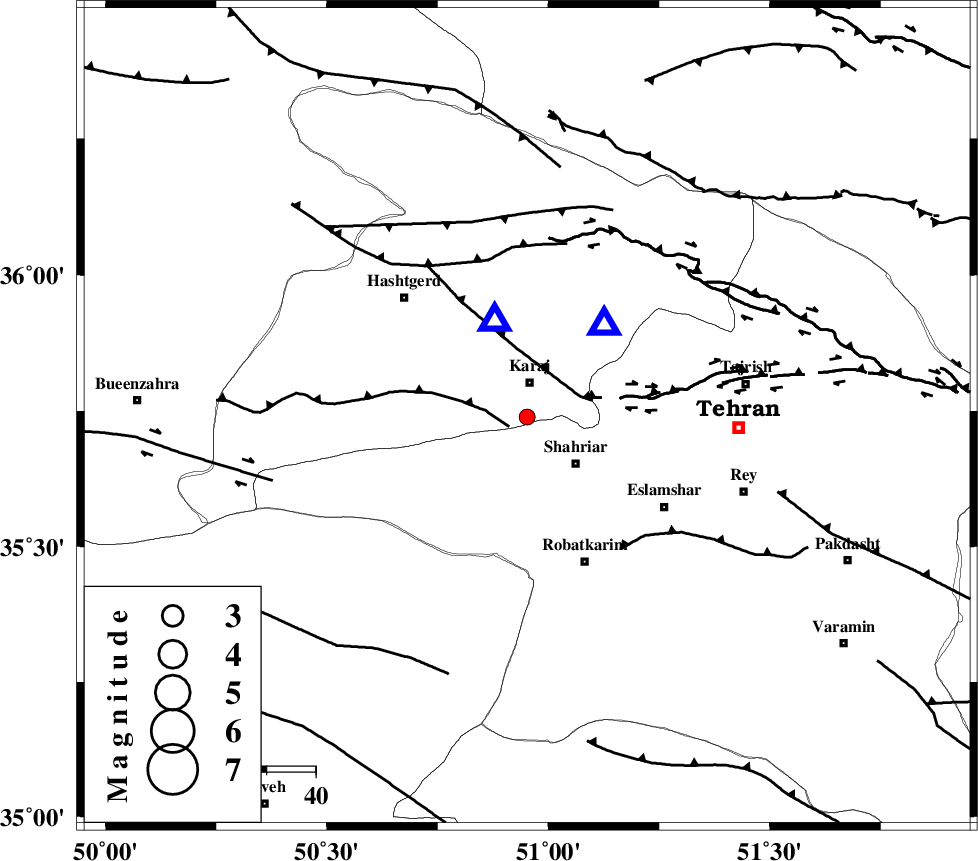

| Location | Lat:35.739 Lon: 50.952 |
| Region | Tehran Province, 7 km of Karaj |
Nearest Cities |
|
| 7 km of Karaj, Tehran Province | |
| 9 km North of Malard, Tehran Province | |
| 14 km North West of Shahriyar, Tehran Province | |
| 17 km North of Joqin, Tehran Province | |
| 22 km South of Barghan, Tehran Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ESHTEHARD_F (Length: 69 km) , Distance to epicenter: 4 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 12 km | |
| MOSHA_F (Length: 234 km) , Distance to epicenter: 33 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123398 | IIEES | CHTH | E | 887.5 | 0.1 | 2017-11-30 12:52:55 | 2017-12-04 11:37:00 | n |
| 123399 | IIEES | CHTH | N | 1021.4 | 0.16 | 2017-11-30 12:52:55 | 2017-12-04 11:37:00 | n |
| 123400 | IIEES | DAMV | E | 48.4 | 0.15 | 2017-11-30 12:53:15 | 2017-12-04 11:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2017-11-30 12:52:51 | 0.32 | y | 20.7 | 341 | |||
| IIEES | THKV | N | Sg | E | 2017-11-30 12:52:54 | -0.06 | y | 20.7 | 341 | |||
| IIEES | CHTH | Z | Pg | E | 2017-11-30 12:52:51 | -0.07 | y | 24.5 | 40 | |||
| IIEES | CHTH | N | Sg | E | 2017-11-30 12:52:55 | -0.12 | y | 24.5 | 40 | |||
| IIEES | DAMV | Z | Pg | E | 2017-11-30 12:53:02 | 0.05 | y | 93 | 97 | |||
| IIEES | GHVR | Z | Pg | E | 2017-11-30 12:53:09 | 0.15 | y | 142 | 169 | |||
| IIEES | ASAO | Z | Pg | E | 2017-11-30 12:53:12 | -0.23 | y | 157 | 213 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-30 12:53:22 | -0.03 | y | 229 | 298 | |||
