Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-12-13 03:39:58.6 |
| Date & Time (Local) | 1396/9/22 07:09:58.6 |

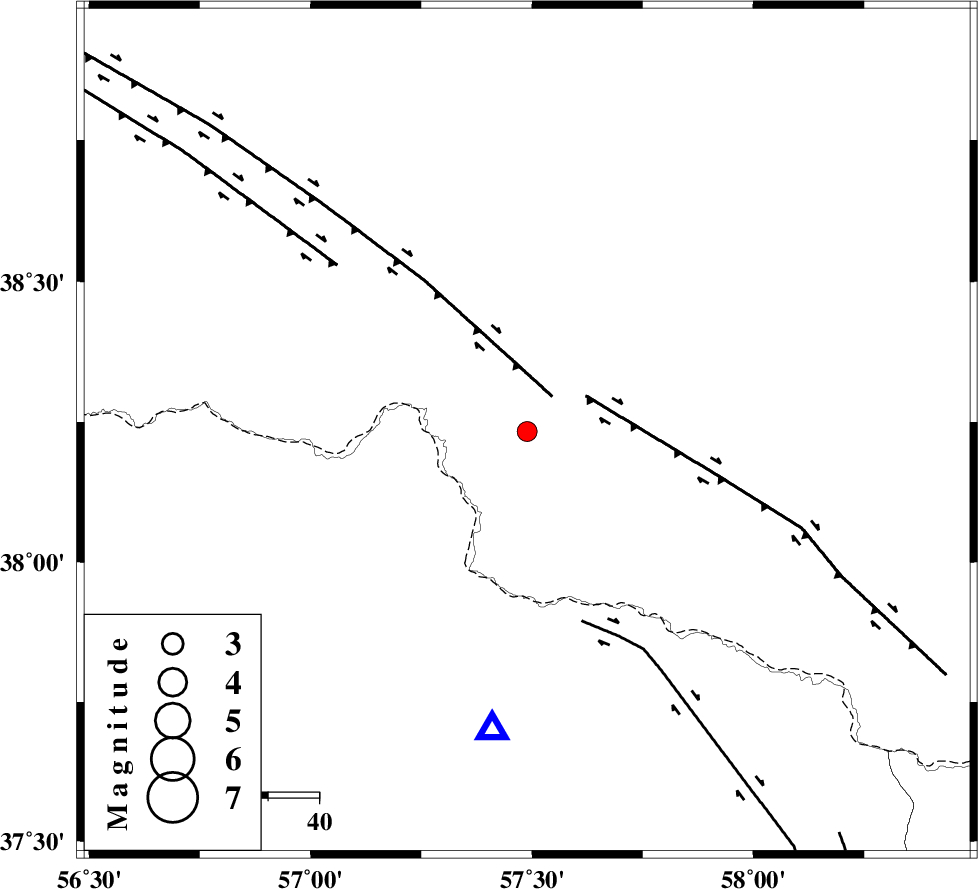

| Location | Lat:38.233 Lon: 57.489 |
| Region | Turkmenistan, 86 km North-East of Bojnurd |
Nearest Cities |
|
| 37 km North of Gifan olia, Khorasan(north) Province | |
| 46 km North East of Raz, Khorasan(north) Province | |
| 57 km North East of Tangehzar, Khorasan(north) Province | |
| 59 km North West of Yangi ghale-ye bala, Khorasan(north) Province | |
| 67 km North East of Yekehsoud-e paeen, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 9 km | |
| MAIN_KOPEHDAGH_F3 (Length: 96 km) , Distance to epicenter: 14 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 39 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >6.4 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 124310 | IIEES | BJRD | E | 1139.3 | 0.22 | 2017-12-13 03:40:19 | 2017-12-13 08:22:00 | n |
| 124311 | IIEES | BJRD | N | 736.8 | 0.38 | 2017-12-13 03:40:22 | 2017-12-13 08:22:00 | n |
| 124312 | IIEES | MRVT | E | 248.9 | 0.42 | 2017-12-13 03:40:39 | 2017-12-13 08:22:00 | n |
| 124313 | IIEES | MRVT | N | 191.8 | 0.29 | 2017-12-13 03:40:45 | 2017-12-13 08:22:00 | n |
| 124314 | IIEES | TABS | N | 3.8 | 0.53 | 2017-12-13 03:42:11 | 2017-12-13 08:22:00 | n |
| 124315 | IIEES | SHRT | N | 2.6 | 0.64 | 2017-12-13 03:42:21 | 2017-12-13 08:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2017-12-13 03:40:09 | 0.12 | y | 59.6 | 187 | |||
| IIEES | BJRD | E | Sg | E | 2017-12-13 03:40:16 | -0.04 | y | 59.6 | 187 | |||
| IIEES | MRVT | Z | Pg | E | 2017-12-13 03:40:21 | 0.08 | y | 139 | 243 | |||
| IIEES | MRVT | N | Sg | E | 2017-12-13 03:40:38 | 0.11 | y | 139 | 243 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-13 03:40:40 | -0.61 | y | 280 | 208 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-13 03:41:09 | 0.32 | y | 510 | 184 | |||
| IIEES | SHRT | Z | Pn | E | 2017-12-13 03:41:16 | 0.19 | y | 568 | 153 | |||
