Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2017-12-17 22:54:01.5 |
| Date & Time (Local) | 1396/9/27 02:24:01.5 |

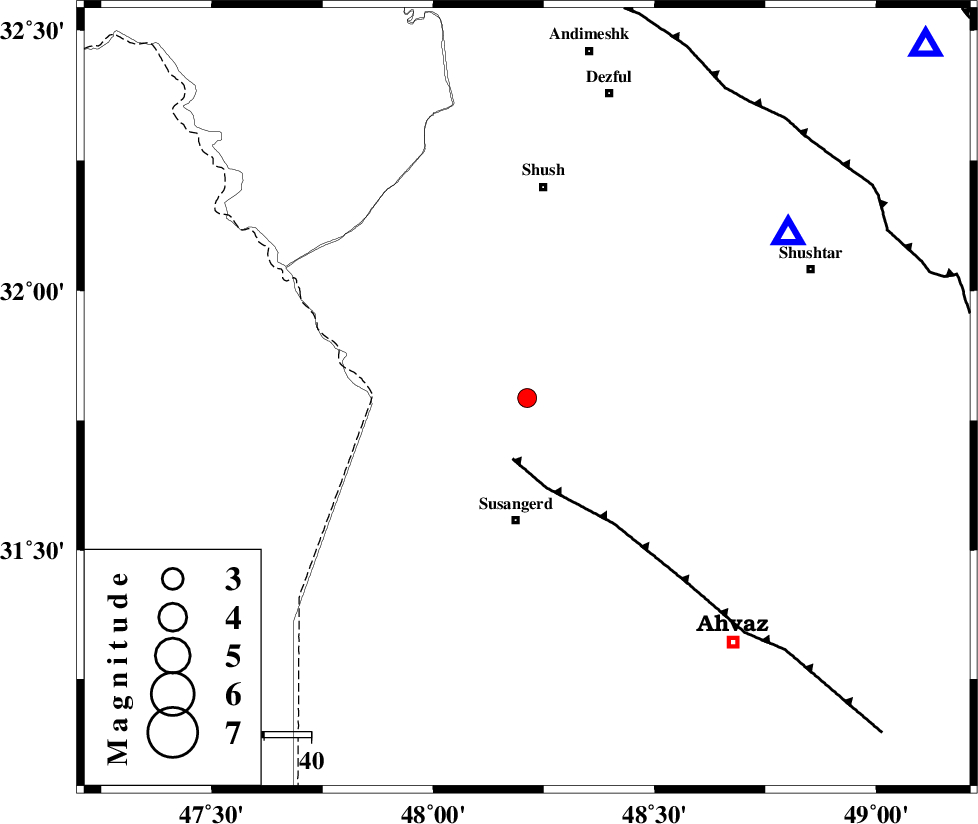

| Location | Lat:31.793 Lon: 48.212 |
| Region | Khoozestan Province, 26 km North of Susangerd |
Nearest Cities |
|
| 16 km West of Abdolkhan-eali, Khoozestan Province | |
| 23 km North East of Bostan, Khoozestan Province | |
| 26 km North of Susangerd, Khoozestan Province | |
| 29 km North of Jalaliyeh, Khoozestan Province | |
| 39 km North East of Hoveizeh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 13 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 79 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 107 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 124726 | IIEES | KHMZ | E | 33 | 0.54 | 2017-12-17 22:55:22 | 2017-12-18 09:24:00 | n |
| 124727 | IIEES | KHMZ | N | 27.7 | 0.6 | 2017-12-17 22:55:27 | 2017-12-18 09:24:00 | n |
| 124728 | IIEES | ILBA | N | 34.3 | 0.68 | 2017-12-17 22:55:32 | 2017-12-18 09:24:00 | n |
| 124729 | IIEES | ASAO | N | 15.2 | 0.6 | 2017-12-17 22:55:43 | 2017-12-18 09:24:00 | n |
| 124730 | IIEES | ASAO | E | 15.1 | 0.52 | 2017-12-17 22:55:56 | 2017-12-18 09:24:00 | n |
| 124731 | IIEES | SNGE | N | 16.4 | 0.53 | 2017-12-17 22:55:56 | 2017-12-18 09:24:00 | n |
| 124732 | IIEES | SNGE | E | 14.7 | 0.53 | 2017-12-17 22:56:00 | 2017-12-18 09:24:00 | n |
| 124733 | IIEES | DAMV | E | 4.8 | 0.36 | 2017-12-17 22:56:48 | 2017-12-18 09:24:00 | n |
| 124734 | IIEES | DAMV | N | 4.3 | 0.64 | 2017-12-17 22:56:50 | 2017-12-18 09:24:00 | n |
| 124735 | IIEES | GHIR | N | 2.4 | 0.38 | 2017-12-17 22:56:32 | 2017-12-18 09:24:00 | n |
| 124736 | IIEES | GHIR | E | 2.1 | 0.68 | 2017-12-17 22:56:39 | 2017-12-18 09:24:00 | n |
| 124737 | IIEES | YZKH | E | 2 | 0.57 | 2017-12-17 22:56:32 | 2017-12-18 09:24:00 | n |
| 124738 | IIEES | YZKH | N | 1.2 | 0.57 | 2017-12-17 22:56:36 | 2017-12-18 09:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-17 22:54:43 | 0.39 | y | 271 | 37 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-17 22:54:43 | -0.2 | y | 277 | 318 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-17 22:54:52 | 0.3 | y | 349 | 28 | |||
| IIEES | SNGE | Z | Pn | E | 2017-12-17 22:54:55 | 0.1 | y | 375 | 348 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-17 22:55:04 | -0.15 | y | 447 | 74 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-17 22:55:17 | -0.47 | y | 550 | 38 | |||
| IIEES | GHIR | Z | Pn | E | 2017-12-17 22:55:24 | 0.46 | y | 603 | 129 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-17 22:55:23 | -0.69 | y | 606 | 82 | |||
