Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2017-12-18 11:21:23.8 |
| Date & Time (Local) | 1396/9/27 14:51:23.8 |

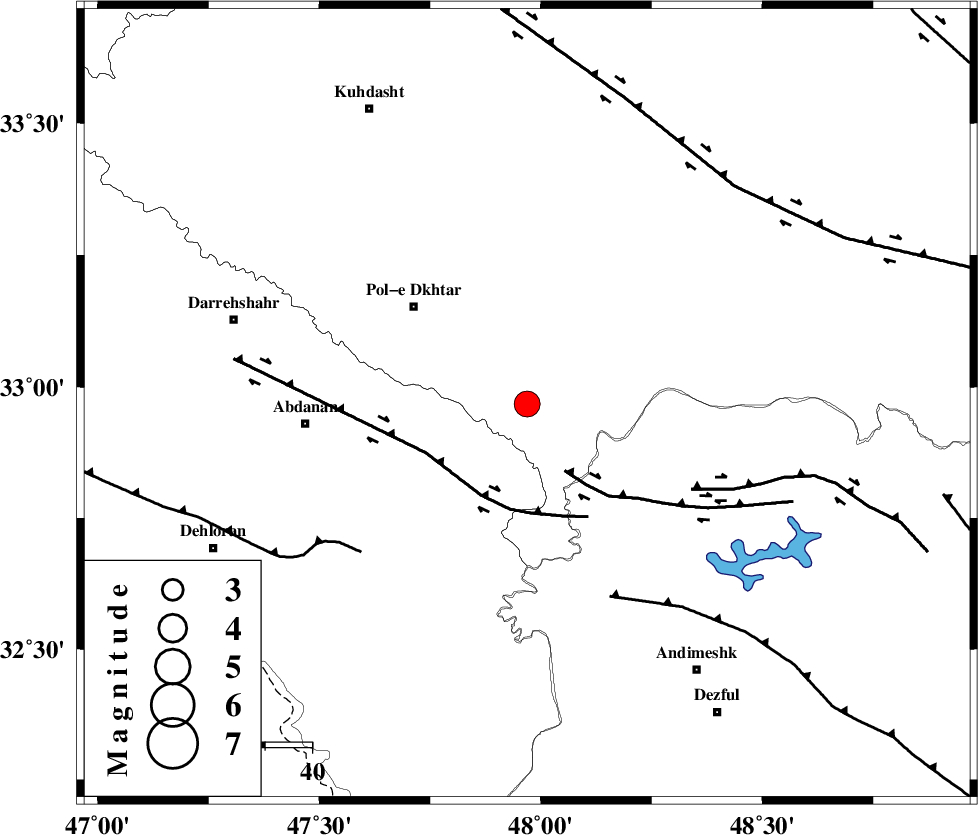

| Location | Lat:32.967 Lon: 47.969 |
| Region | Lorestan Province, 32 km South-East of Pol-e dokhtar |
Nearest Cities |
|
| 30 km South East of Sarab hammam, Lorestan Province | |
| 32 km South East of Pol-e dokhtar, Lorestan Province | |
| 34 km North West of Bidruyeh, Khoozestan Province | |
| 38 km North East of Sarabbagh, Ilam Province | |
| 39 km South East of Morani, Lorestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 16 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 39 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >6.7 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 124758 | IIEES | ILBA | N | 383.8 | 0.55 | 2017-12-18 11:22:19 | 2017-12-18 11:53:00 | n |
| 124759 | IIEES | KHMZ | N | 459.9 | 0.4 | 2017-12-18 11:22:27 | 2017-12-18 11:53:00 | n |
| 124760 | IIEES | KHMZ | E | 405.9 | 0.6 | 2017-12-18 11:22:30 | 2017-12-18 11:53:00 | n |
| 124761 | IIEES | SNGE | N | 362.7 | 0.68 | 2017-12-18 11:22:42 | 2017-12-18 11:53:00 | n |
| 124762 | IIEES | SNGE | E | 394.1 | 0.68 | 2017-12-18 11:22:42 | 2017-12-18 11:53:00 | n |
| 124763 | IIEES | ASAO | E | 243.6 | 0.59 | 2017-12-18 11:22:43 | 2017-12-18 11:53:00 | n |
| 124764 | IIEES | ASAO | N | 310.6 | 0.74 | 2017-12-18 11:22:44 | 2017-12-18 11:53:00 | n |
| 124765 | IIEES | GHVR | N | 223 | 0.44 | 2017-12-18 11:23:12 | 2017-12-18 11:53:00 | n |
| 124766 | IIEES | GHVR | E | 224.2 | 0.7 | 2017-12-18 11:23:14 | 2017-12-18 11:53:00 | n |
| 124767 | IIEES | NASN | E | 35.8 | 0.68 | 2017-12-18 11:23:40 | 2017-12-18 11:53:00 | n |
| 124768 | IIEES | DAMV | E | 37.3 | 0.53 | 2017-12-18 11:23:49 | 2017-12-18 11:53:00 | n |
| 124769 | IIEES | DAMV | N | 45.9 | 0.78 | 2017-12-18 11:23:58 | 2017-12-18 11:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-12-18 11:21:52 | -0.47 | y | 180 | 294 | |||
| IIEES | ILBA | N | Sg | E | 2017-12-18 11:22:15 | 0.36 | y | 180 | 294 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-18 11:21:57 | 0.2 | y | 205 | 65 | |||
| IIEES | SNGE | Z | Pn | E | 2017-12-18 11:22:01 | -0.16 | y | 243 | 346 | |||
| IIEES | SNGE | N | Sg | E | 2017-12-18 11:22:32 | 0.27 | y | 243 | 346 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-18 11:22:03 | 0.21 | y | 259 | 47 | |||
| IIEES | ASAO | E | Sg | E | 2017-12-18 11:22:36 | -0.17 | y | 259 | 47 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-18 11:22:15 | 0.85 | y | 347 | 60 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-18 11:22:22 | -0.67 | y | 416 | 9 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-18 11:22:24 | -0.7 | y | 437 | 41 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-18 11:22:26 | -1.69 | n | 4 | 453 | 91 | ||
| IIEES | DAMV | Z | Pn | E | 2017-12-18 11:22:30 | 0 | y | 472 | 50 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-18 11:22:52 | 0.15 | y | 648 | 359 | |||
