Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2017-12-21 01:48:02.1 |
| Date & Time (Local) | 1396/9/30 05:18:02.1 |

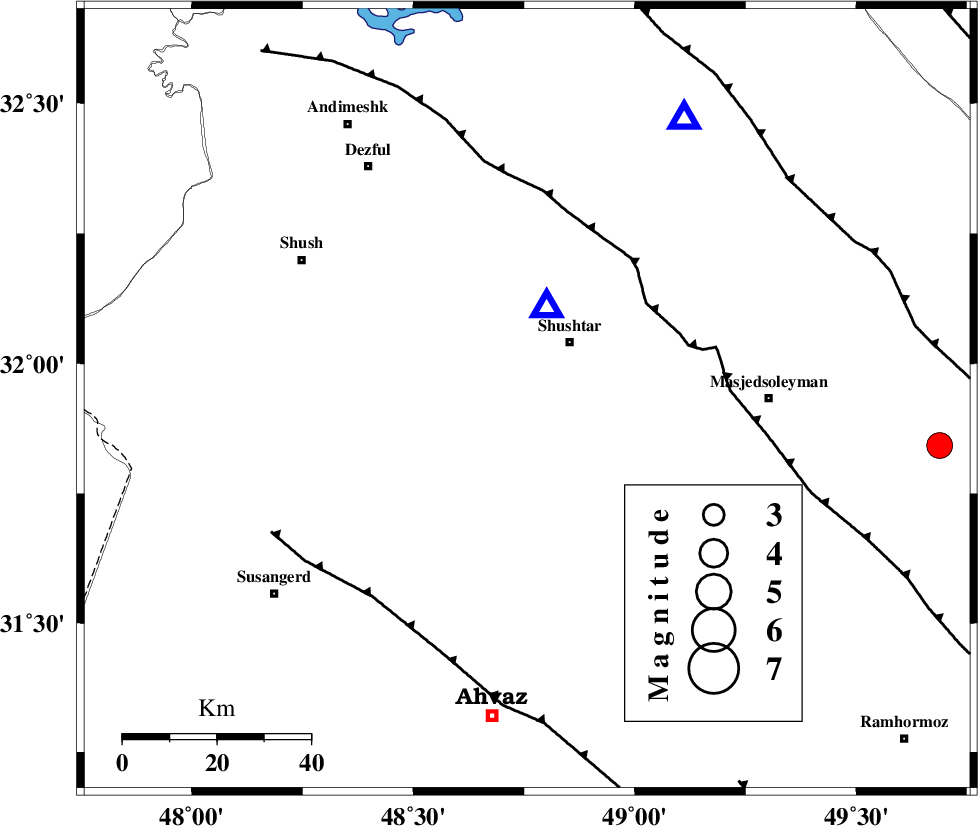

| Location | Lat:31.931 Lon: 48.757 |
| Region | Khoozestan Province, 15 km South of Shushtar |
Nearest Cities |
|
| 8 km of Mehdiabad, Khoozestan Province | |
| 10 km of Sardarabad, Khoozestan Province | |
| 15 km South of Shushtar, Khoozestan Province | |
| 17 km North West of Arabhasan, Khoozestan Province | |
| 31 km South of Samaleh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 54 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 73 km | |
| Number of Phases | 18 |
| RMS | 0.6 |
| Number of Stations | 17 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 125142 | IIEES | KHMZ | N | 313.1 | 0.88 | 2017-12-21 01:49:18 | 2017-12-21 09:38:00 | n |
| 125143 | IIEES | ILBA | N | 193.7 | 0.66 | 2017-12-21 01:49:39 | 2017-12-21 09:38:00 | n |
| 125144 | IIEES | ASAO | E | 109 | 0.67 | 2017-12-21 01:49:40 | 2017-12-21 09:38:00 | n |
| 125145 | IIEES | GHVR | N | 74.7 | 0.71 | 2017-12-21 01:49:56 | 2017-12-21 09:38:00 | n |
| 125146 | IIEES | AHRM | E | 103.8 | 0.67 | 2017-12-21 01:50:18 | 2017-12-21 09:38:00 | n |
| 125147 | IIEES | AHRM | N | 124.5 | 0.56 | 2017-12-21 01:50:25 | 2017-12-21 09:38:00 | n |
| 125148 | IIEES | ZNJK | E | 30.9 | 0.96 | 2017-12-21 01:50:58 | 2017-12-21 09:38:00 | n |
| 125149 | IIEES | GIDE | N | 19.3 | 0.76 | 2017-12-21 01:51:08 | 2017-12-21 09:38:00 | n |
| 125150 | IIEES | GIDE | E | 35.1 | 0.81 | 2017-12-21 01:51:08 | 2017-12-21 09:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-21 01:48:39 | 0.6 | y | 230 | 29 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-21 01:48:46 | -0.75 | y | 304 | 309 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-21 01:48:49 | 0.68 | y | 313 | 22 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-21 01:48:56 | 1.41 | n | 4 | 366 | 39 | ||
| IIEES | SNGE | Z | Pn | E | 2017-12-21 01:48:56 | 0.5 | y | 374 | 340 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-21 01:48:58 | -0.11 | y | 393 | 75 | |||
| IIEES | AHRM | N | Pn | E | 2017-12-21 01:49:02 | 0.83 | y | 418 | 144 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-21 01:49:10 | 0.33 | y | 484 | 23 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-21 01:49:10 | -0.21 | y | 493 | 26 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-21 01:49:12 | -0.29 | y | 507 | 35 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-21 01:49:14 | -0.38 | y | 526 | 359 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-21 01:49:17 | -0.98 | y | 553 | 83 | |||
| IIEES | GIDE | Z | Pn | E | 2017-12-21 01:49:20 | 0.06 | y | 564 | 11 | |||
| IIEES | KRBR | Z | Pn | E | 2017-12-21 01:49:48 | -0.07 | y | 794 | 104 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-21 01:49:49 | -0.74 | y | 806 | 74 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-21 01:49:49 | -0.47 | y | 809 | 54 | |||
| IIEES | BNDS | Z | Pn | E | 2017-12-21 01:49:54 | -4.32 | n | 4 | 876 | 123 | ||
| IIEES | BSRN | Z | Pn | E | 2017-12-21 01:50:10 | -0.69 | y | 980 | 87 | |||
