Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-12-25 00:20:33.1 |
| Date & Time (Local) | 1396/10/4 03:50:33.1 |

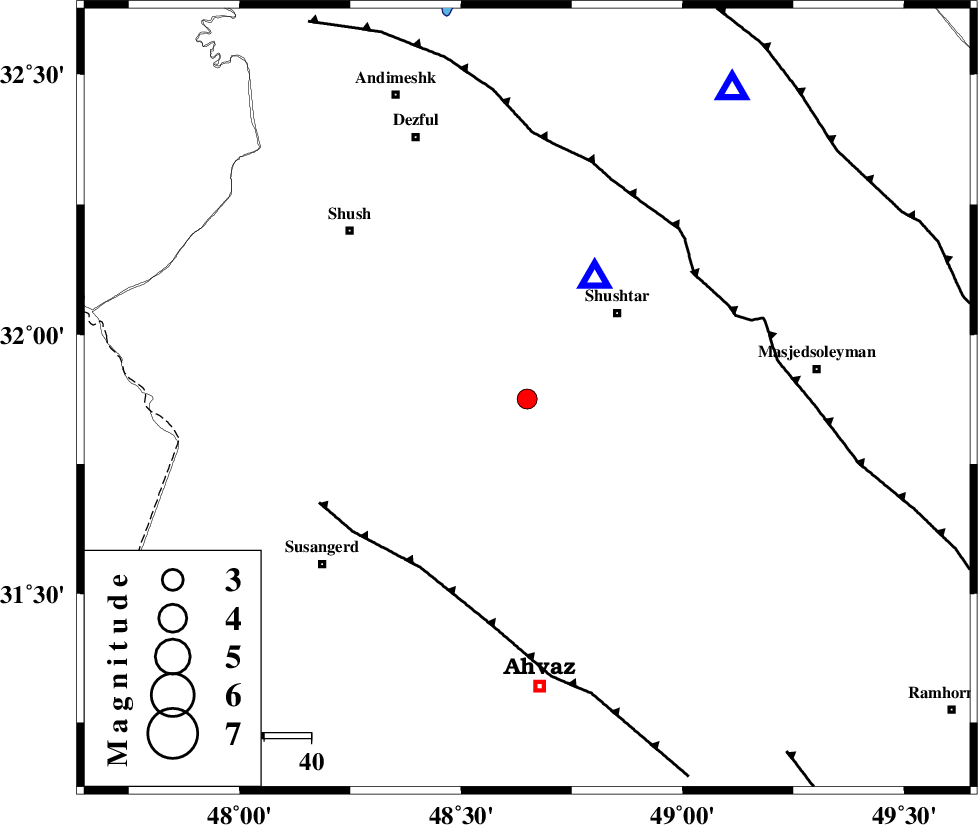

| Location | Lat:31.876 Lon: 48.649 |
| Region | Khoozestan Province, 27 km South-West of Shushtar |
Nearest Cities |
|
| 20 km West of Mehdiabad, Khoozestan Province | |
| 20 km South West of Sardarabad, Khoozestan Province | |
| 23 km North West of Arabhasan, Khoozestan Province | |
| 26 km North East of Abdolkhan-eali, Khoozestan Province | |
| 27 km South West of Shushtar, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 43 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 44 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 85 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 125435 | IIEES | SNGE | N | 17.4 | 0.96 | 2017-12-25 00:22:46 | 2017-12-25 08:10:00 | n |
| 125436 | IIEES | GHVR | N | 11.7 | 0.42 | 2017-12-25 00:22:25 | 2017-12-25 08:10:00 | n |
| 125437 | IIEES | GHVR | E | 16.4 | 0.73 | 2017-12-25 00:22:33 | 2017-12-25 08:10:00 | n |
| 125438 | IIEES | AHRM | N | 16.1 | 0.49 | 2017-12-25 00:22:36 | 2017-12-25 08:10:00 | n |
| 125439 | IIEES | AHRM | E | 14.6 | 0.65 | 2017-12-25 00:22:59 | 2017-12-25 08:10:00 | n |
| 125440 | IIEES | GHIR | N | 3.7 | 0.46 | 2017-12-25 00:22:54 | 2017-12-25 08:10:00 | n |
| 125441 | IIEES | GHIR | E | 3.6 | 0.15 | 2017-12-25 00:23:04 | 2017-12-25 08:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-25 00:21:11 | 0.26 | y | 241 | 30 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-25 00:21:17 | -0.31 | y | 300 | 311 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-25 00:21:20 | -0.34 | y | 323 | 23 | |||
| IIEES | SNGE | Z | Pn | E | 2017-12-25 00:21:28 | 0.28 | y | 377 | 342 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-25 00:21:28 | 0.55 | y | 377 | 39 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-25 00:21:31 | -0.27 | y | 405 | 74 | |||
| IIEES | AHRM | Z | Pn | E | 2017-12-25 00:21:33 | 0.39 | y | 420 | 142 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-25 00:21:50 | -0.66 | y | 564 | 83 | |||
| IIEES | GHIR | Z | Pn | E | 2017-12-25 00:21:52 | -0.06 | y | 577 | 132 | |||
