Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2017-12-26 01:59:25.2 |
| Date & Time (Local) | 1396/10/5 05:29:25.2 |

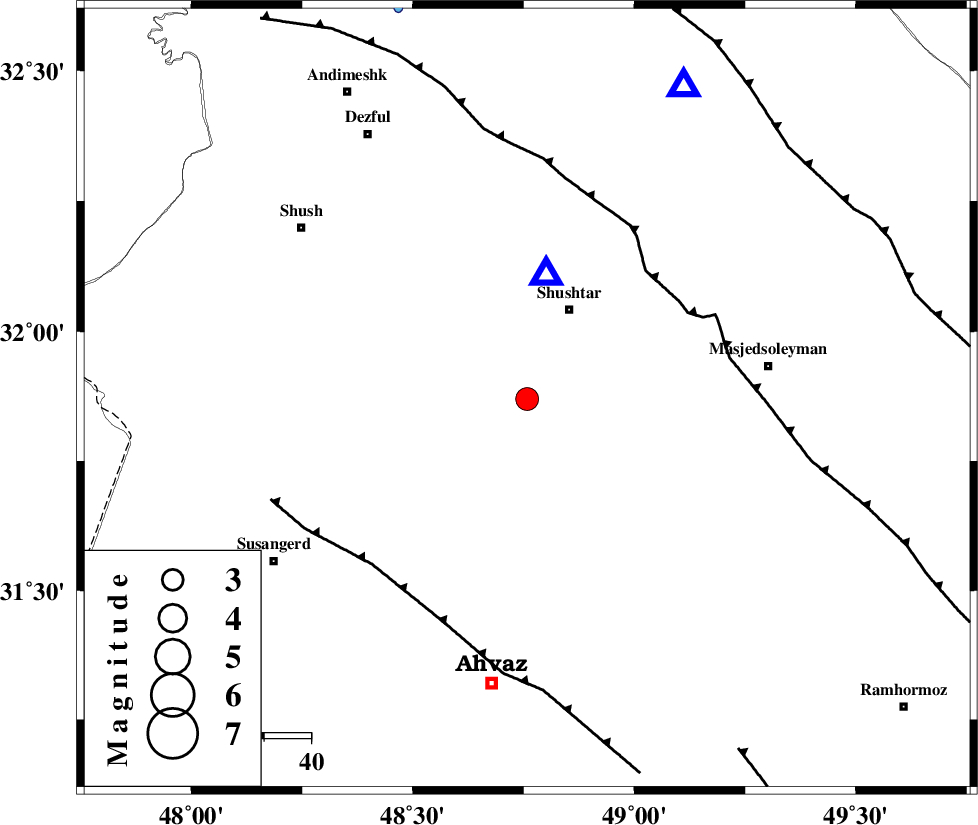

| Location | Lat:31.87 Lon: 48.758 |
| Region | Khoozestan Province, 21 km South of Shushtar |
Nearest Cities |
|
| 12 km of Mehdiabad, Khoozestan Province | |
| 13 km North West of Arabhasan, Khoozestan Province | |
| 16 km South of Sardarabad, Khoozestan Province | |
| 21 km South of Shushtar, Khoozestan Province | |
| 34 km North West of Mollasani, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 37 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 49 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 77 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 125503 | IIEES | KHMZ | N | 137.4 | 0.57 | 2017-12-26 02:00:40 | 2017-12-26 06:57:00 | n |
| 125504 | IIEES | KHMZ | E | 227.9 | 0.52 | 2017-12-26 02:00:43 | 2017-12-26 06:57:00 | n |
| 125505 | IIEES | ILBA | N | 95.7 | 0.52 | 2017-12-26 02:01:12 | 2017-12-26 06:57:00 | n |
| 125506 | IIEES | ASAO | N | 80.7 | 0.52 | 2017-12-26 02:01:06 | 2017-12-26 06:57:00 | n |
| 125507 | IIEES | ASAO | E | 96.3 | 0.44 | 2017-12-26 02:01:11 | 2017-12-26 06:57:00 | n |
| 125508 | IIEES | GHVR | E | 45 | 0.67 | 2017-12-26 02:01:22 | 2017-12-26 06:57:00 | n |
| 125509 | IIEES | GHVR | N | 61.2 | 0.52 | 2017-12-26 02:01:25 | 2017-12-26 06:57:00 | n |
| 125510 | IIEES | SNGE | N | 40.4 | 0.38 | 2017-12-26 02:01:21 | 2017-12-26 06:57:00 | n |
| 125511 | IIEES | SNGE | E | 40.1 | 0.57 | 2017-12-26 02:01:25 | 2017-12-26 06:57:00 | n |
| 125512 | IIEES | AHRM | N | 40 | 0.6 | 2017-12-26 02:01:08 | 2017-12-26 06:57:00 | n |
| 125513 | IIEES | AHRM | E | 25.7 | 0.33 | 2017-12-26 02:01:13 | 2017-12-26 06:57:00 | n |
| 125514 | IIEES | THKV | E | 16.7 | 0.44 | 2017-12-26 02:01:51 | 2017-12-26 06:57:00 | n |
| 125515 | IIEES | DAMV | N | 18.9 | 0.72 | 2017-12-26 02:02:07 | 2017-12-26 06:57:00 | n |
| 125516 | IIEES | DAMV | E | 15.7 | 0.56 | 2017-12-26 02:02:10 | 2017-12-26 06:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-26 02:00:02 | 0.02 | y | 236 | 28 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-26 02:00:10 | -0.48 | y | 308 | 310 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-26 02:00:13 | 0.47 | y | 320 | 21 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-26 02:00:19 | 0.58 | y | 371 | 38 | |||
| IIEES | SNGE | Z | Pn | E | 2017-12-26 02:00:20 | 0.25 | y | 381 | 340 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-26 02:00:21 | -0.35 | y | 395 | 74 | |||
| IIEES | AHRM | Z | Pn | E | 2017-12-26 02:00:24 | 0.58 | y | 413 | 143 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-26 02:00:33 | -0.36 | y | 490 | 23 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-26 02:00:34 | -0.29 | n | 4 | 499 | 25 | ||
| IIEES | DAMV | Z | Pn | E | 2017-12-26 02:00:36 | 0.08 | y | 512 | 35 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-26 02:00:40 | -1.12 | y | 553 | 82 | |||
