Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2018-01-02 23:39:15.1 |
| Date & Time (Local) | 1396/10/13 03:09:15.1 |

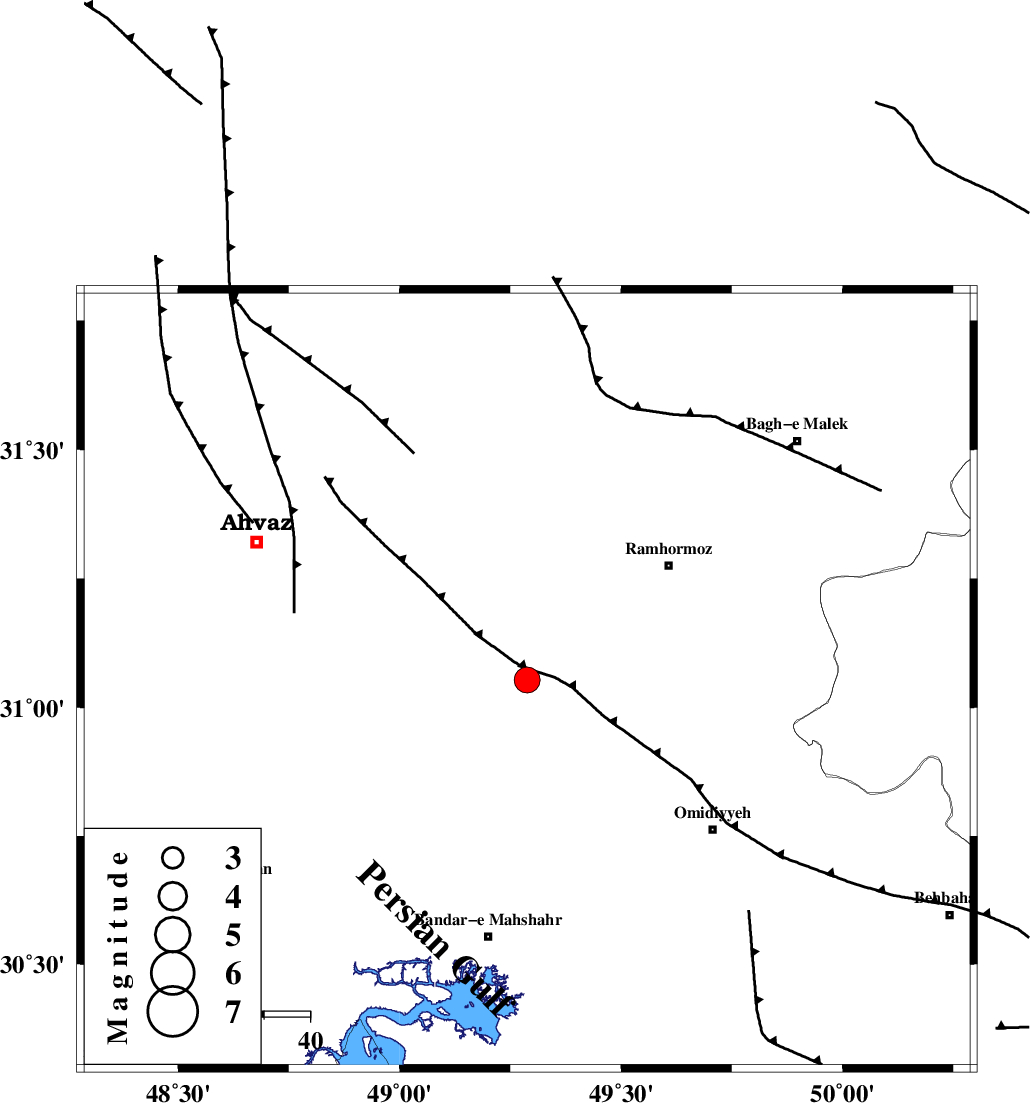

| Location | Lat:31.053 Lon: 49.288 |
| Region | Khoozestan Province, 39 km South-West of Ramhormoz |
Nearest Cities |
|
| 15 km North West of Meshrageh, Khoozestan Province | |
| 21 km North West of Ramshir, Khoozestan Province | |
| 27 km South West of Marbacheh, Khoozestan Province | |
| 30 km North West of Abdoliyeh, Khoozestan Province | |
| 36 km South East of Mashrehat, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 6 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 28 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 62 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 126003 | IIEES | KHMZ | E | 156.1 | 0.48 | 2018-01-02 23:40:42 | 2018-01-03 07:54:00 | n |
| 126004 | IIEES | AHRM | N | 134.7 | 0.72 | 2018-01-02 23:40:56 | 2018-01-03 07:54:00 | n |
| 126005 | IIEES | ASAO | E | 79.3 | 0.39 | 2018-01-02 23:41:09 | 2018-01-03 07:54:00 | n |
| 126006 | IIEES | ASAO | N | 69.7 | 0.68 | 2018-01-02 23:41:17 | 2018-01-03 07:54:00 | n |
| 126007 | IIEES | ILBA | N | 50.3 | 0.47 | 2018-01-02 23:41:37 | 2018-01-03 07:54:00 | n |
| 126008 | IIEES | GHVR | N | 70.7 | 0.55 | 2018-01-02 23:41:20 | 2018-01-03 07:54:00 | n |
| 126009 | IIEES | GHVR | E | 77.6 | 0.73 | 2018-01-02 23:41:24 | 2018-01-03 07:54:00 | n |
| 126010 | IIEES | SNGE | N | 65.3 | 0.53 | 2018-01-02 23:41:15 | 2018-01-03 07:54:00 | n |
| 126011 | IIEES | SNGE | E | 82.1 | 0.59 | 2018-01-02 23:41:18 | 2018-01-03 07:54:00 | n |
| 126012 | IIEES | THKV | N | 20.7 | 0.62 | 2018-01-02 23:42:05 | 2018-01-03 07:54:00 | n |
| 126013 | IIEES | CHTH | E | 19.9 | 0.9 | 2018-01-02 23:42:04 | 2018-01-03 07:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-02 23:40:01 | 0.78 | y | 305 | 12 | |||
| IIEES | AHRM | Z | Pn | E | 2018-01-02 23:40:01 | 0.16 | y | 311 | 141 | |||
| IIEES | NASN | Z | Pn | E | 2018-01-02 23:40:11 | 0.21 | y | 385 | 59 | |||
| IIEES | ASAO | Z | Pn | E | 2018-01-02 23:40:12 | 0.62 | y | 394 | 10 | |||
| IIEES | ILBA | Z | Pn | E | 2018-01-02 23:40:12 | -0.51 | y | 407 | 315 | |||
| IIEES | GHVR | Z | Pn | E | 2018-01-02 23:40:15 | 0.44 | y | 422 | 25 | |||
| IIEES | GHIR | Z | Pn | E | 2018-01-02 23:40:21 | 0.27 | y | 471 | 130 | |||
| IIEES | SNGE | Z | Pn | E | 2018-01-02 23:40:22 | -0.06 | y | 483 | 338 | |||
| IIEES | YZKH | Z | Pn | E | 2018-01-02 23:40:27 | -0.67 | y | 524 | 72 | |||
| IIEES | THKV | Z | Pn | E | 2018-01-02 23:40:32 | -0.02 | y | 559 | 15 | |||
| IIEES | CHTH | Z | Pn | E | 2018-01-02 23:40:32 | -0.6 | y | 565 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2018-01-02 23:40:32 | -0.76 | y | 566 | 25 | |||
| IIEES | TABS | Z | Pn | E | 2018-01-02 23:40:59 | -1.06 | y | 791 | 67 | |||
