Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2018-01-22 16:14:40.2 |
| Date & Time (Local) | 1396/11/2 19:44:40.2 |
| Location | Lat:38.275 Lon: 46.038 |
| Region | Azarbaijan Sharghi Province, 29 km South-East of Marand |
Nearest Cities |
|
| 5 km North of Sufiyan, Azarbaijan Sharghi Province | |
| 12 km North West of Amand, Azarbaijan Sharghi Province | |
| 13 km North East of Neematollah, Azarbaijan Sharghi Province | |
| 21 km South East of Bonab, Azarbaijan Sharghi Province | |
| 22 km North of Mayansofla, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

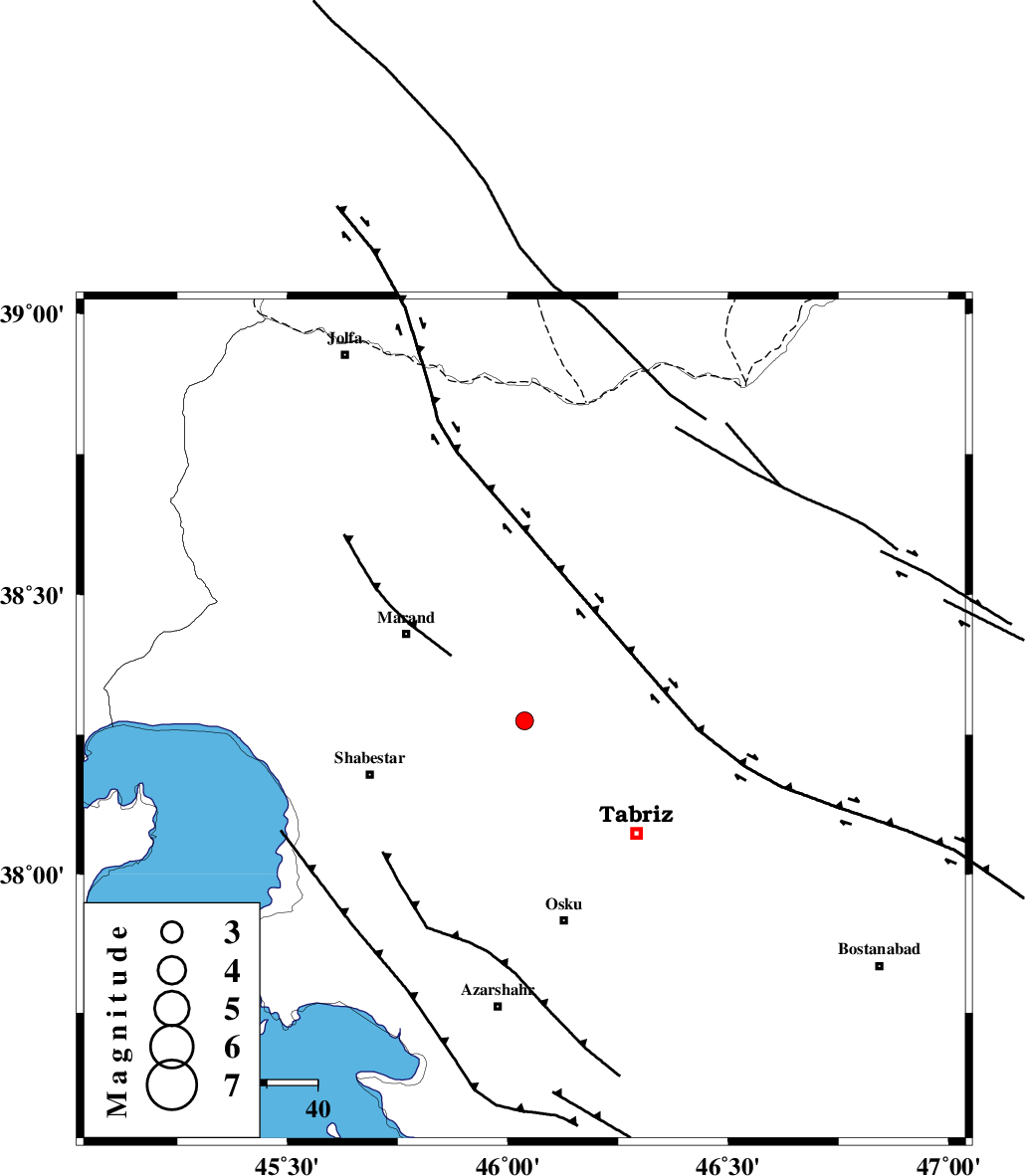

Faults within 150 km: |
|
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 5 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 49 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127405 | IIEES | GRMI | E | 55.1 | 0.52 | 2018-01-22 16:15:31 | 2018-01-23 07:45:00 | n |
| 127406 | IIEES | SRSL | N | 30 | 0.68 | 2018-01-22 16:15:52 | 2018-01-23 07:45:00 | n |
| 127407 | IIEES | SRSL | E | 31.5 | 0.53 | 2018-01-22 16:15:54 | 2018-01-23 07:45:00 | n |
| 127408 | IIEES | SNGE | E | 6.2 | 0.66 | 2018-01-22 16:16:29 | 2018-01-23 07:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-01-22 16:15:07 | -0.26 | y | 168 | 316 | |||
| IIEES | GRMI | Z | Pg | E | 2018-01-22 16:15:08 | -0.23 | y | 172 | 69 | |||
| IIEES | GRMI | E | Sg | E | 2018-01-22 16:15:29 | 0.05 | y | 172 | 69 | |||
| IIEES | SRSL | Z | Pn | E | 2018-01-22 16:15:17 | 0.27 | y | 235 | 193 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-01-22 16:15:24 | 0.34 | y | 294 | 126 | |||
| IIEES | SNGE | Z | Pn | E | 2018-01-22 16:15:34 | 0.48 | y | 372 | 161 | |||
| IIEES | SNGE | E | Sg | E | 2018-01-22 16:16:23 | -0.66 | y | 372 | 161 | |||
