Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2018-02-02 13:54:42.4 |
| Date & Time (Local) | 1396/11/13 17:24:42.4 |

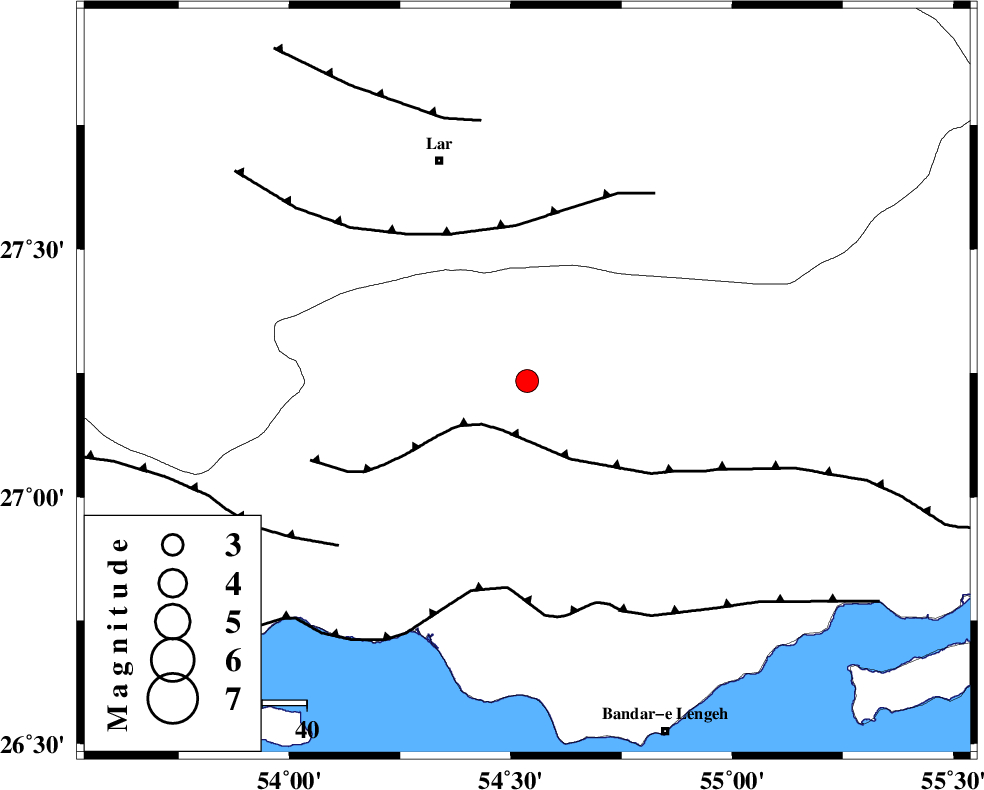

| Location | Lat:27.234 Lon: 54.537 |
| Region | Hormozgan Province, 18 km -East of Bastak |
Nearest Cities |
|
| 18 km North East of Bastak, Hormozgan Province | |
| 35 km North East of Jenah, Hormozgan Province | |
| 53 km South East of Lar, Fars Province | |
| 54 km South East of Latifi, Fars Province | |
| 58 km South East of Bagh, Fars Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 12 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 35 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 47 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >8.4 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127749 | IIEES | BNDS | N | 315.4 | 0.41 | 2018-02-02 13:55:34 | 2018-02-03 06:59:00 | n |
| 127750 | IIEES | AHRM | N | 41.9 | 0.6 | 2018-02-02 13:56:43 | 2018-02-03 06:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2018-02-02 13:55:09 | 0.16 | y | 163 | 83 | |||
| IIEES | BNDS | N | Sg | E | 2018-02-02 13:55:28 | -0.28 | y | 163 | 83 | |||
| IIEES | GHIR | Z | Pg | E | 2018-02-02 13:55:14 | 0.1 | y | 192 | 308 | |||
| IIEES | GHIR | Z | Sg | E | 2018-02-02 13:55:37 | 0.03 | y | 192 | 308 | |||
| IIEES | AHRM | Z | Pn | E | 2018-02-02 13:55:34 | -0.25 | y | 366 | 300 | |||
| IIEES | YZKH | Z | Pn | E | 2018-02-02 13:56:01 | 0.16 | y | 572 | 1 | |||
| IIEES | NASN | Z | Pn | E | 2018-02-02 13:56:08 | -0.53 | y | 639 | 345 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-02-02 13:56:13 | 0.48 | y | 665 | 65 | |||
| IIEES | BSRN | Z | Pn | E | 2018-02-02 13:56:15 | 0.32 | y | 687 | 39 | |||
