Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2018-02-01 23:31:08.1 |
| Date & Time (Local) | 1396/11/13 03:01:08.1 |

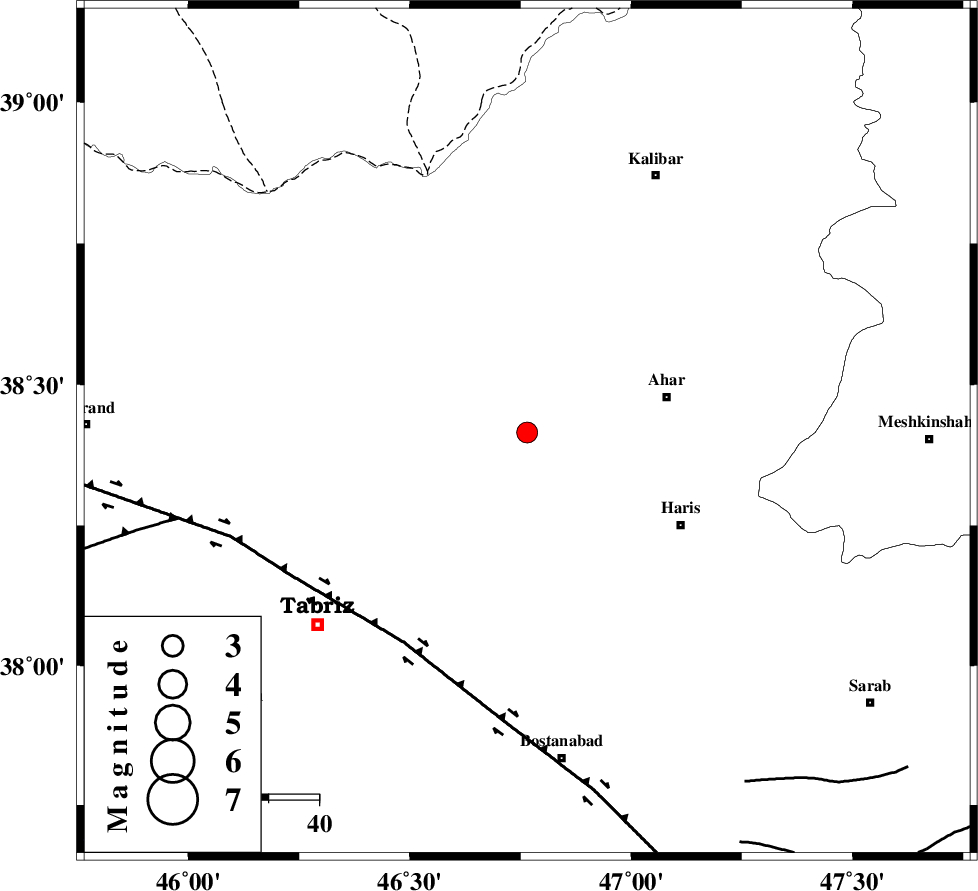

| Location | Lat:38.415 Lon: 46.765 |
| Region | Azarbaijan Sharghi Province, 28 km -West of Ahar |
Nearest Cities |
|
| 14 km East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 19 km North East of Sarand, Azarbaijan Sharghi Province | |
| 20 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 22 km North of Bilverdi, Azarbaijan Sharghi Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 71 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 81 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127789 | IIEES | GIDE | N | 32.2 | 0.43 | 2018-02-01 23:32:43 | 2018-02-03 08:36:00 | n |
| 127790 | IIEES | GIDE | E | 26.5 | 0.69 | 2018-02-01 23:32:43 | 2018-02-03 08:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2018-02-01 23:31:26 | -0.09 | y | 108 | 66 | |||
| IIEES | GRMI | N | Sg | E | 2018-02-01 23:31:39 | 0.09 | y | 108 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2018-02-01 23:31:41 | -0.05 | y | 209 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-02-01 23:31:47 | -0.31 | y | 257 | 138 | |||
| IIEES | SRSL | Z | Pn | E | 2018-02-01 23:31:49 | 0.18 | y | 271 | 206 | |||
| IIEES | GIDE | Z | Pn | E | 2018-02-01 23:31:55 | 0.11 | y | 323 | 120 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-01 23:32:01 | 0.02 | y | 372 | 172 | |||
| IIEES | CHTH | Z | Pn | E | 2018-02-01 23:32:15 | 0.21 | y | 477 | 124 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-01 23:32:20 | -0.13 | y | 519 | 145 | |||
