Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2018-02-05 18:13:12.5 |
| Date & Time (Local) | 1396/11/16 21:43:12.5 |

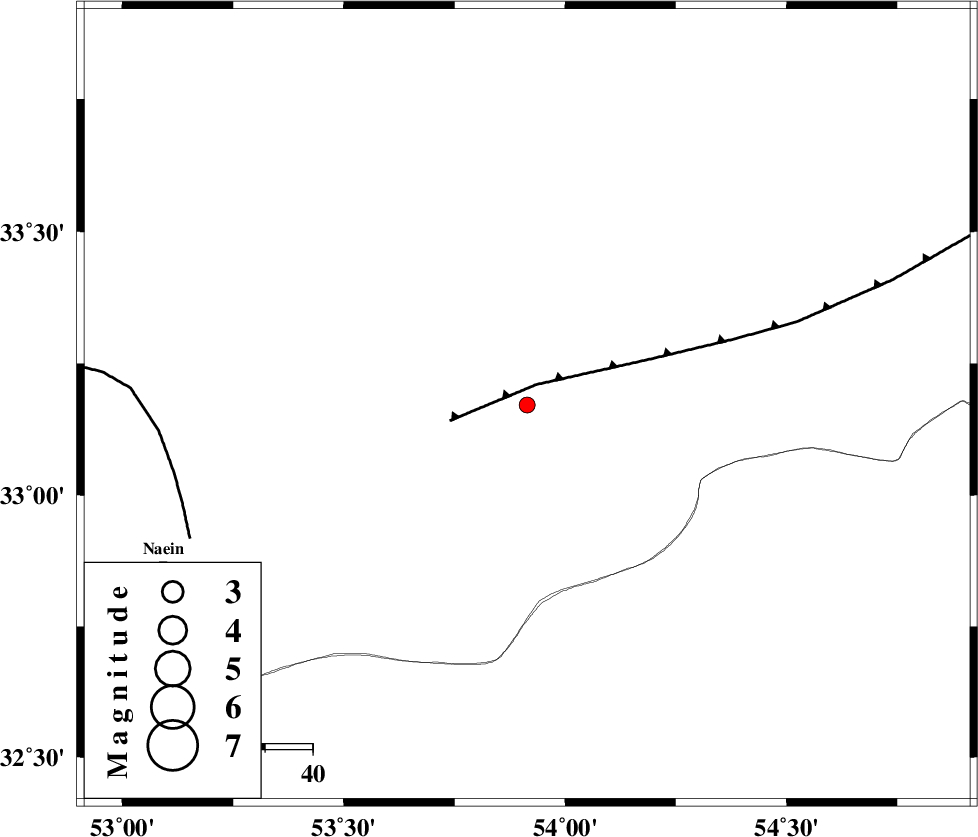

| Location | Lat:33.171 Lon: 53.914 |
| Region | Esfahan Province, 96 km North-West of Ardakan |
Nearest Cities |
|
| 25 km South East of Anarak, Esfahan Province | |
| 66 km South West of Chupanan, Esfahan Province | |
| 74 km South East of Maedan, Esfahan Province | |
| 81 km North East of Baferan, Esfahan Province | |
| 83 km North West of Zarrin, Yazd Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 5 km | |
| CHAH_ZANGUL_F (Length: 123 km) , Distance to epicenter: 75 km | |
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 88 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127976 | IIEES | NASN | N | 50.7 | 0.18 | 2018-02-05 18:13:46 | 2018-02-06 07:09:00 | n |
| 127977 | IIEES | GHVR | N | 12.4 | 0.48 | 2018-02-05 18:14:39 | 2018-02-06 07:09:00 | n |
| 127978 | IIEES | GHVR | E | 17.2 | 0.75 | 2018-02-05 18:14:49 | 2018-02-06 07:09:00 | n |
| 127979 | IIEES | TABS | N | 11.7 | 0.34 | 2018-02-05 18:14:48 | 2018-02-06 07:09:00 | n |
| 127980 | IIEES | TABS | E | 6.2 | 0.5 | 2018-02-05 18:14:48 | 2018-02-06 07:09:00 | n |
| 127981 | IIEES | SHRO | E | 5.7 | 0.54 | 2018-02-05 18:15:12 | 2018-02-06 07:09:00 | n |
| 127982 | IIEES | SHRO | N | 4.7 | 0.54 | 2018-02-05 18:15:16 | 2018-02-06 07:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2018-02-05 18:13:31 | 0.33 | y | 107 | 144 | |||
| IIEES | YZKH | E | Sg | E | 2018-02-05 18:13:44 | -0.07 | y | 107 | 144 | |||
| IIEES | NASN | Z | Pg | E | 2018-02-05 18:13:31 | -0.26 | y | 111 | 249 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-05 18:13:56 | 0.37 | y | 287 | 301 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-05 18:13:58 | -0.19 | y | 303 | 79 | |||
| IIEES | SHRO | Z | Pn | E | 2018-02-05 18:14:06 | -0.05 | y | 369 | 31 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-05 18:14:09 | -0.08 | y | 391 | 294 | |||
| IIEES | BSRN | Z | Pn | E | 2018-02-05 18:14:23 | -0.11 | y | 507 | 104 | |||
