Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2018-02-06 21:25:26.9 |
| Date & Time (Local) | 1396/11/18 00:55:26.9 |

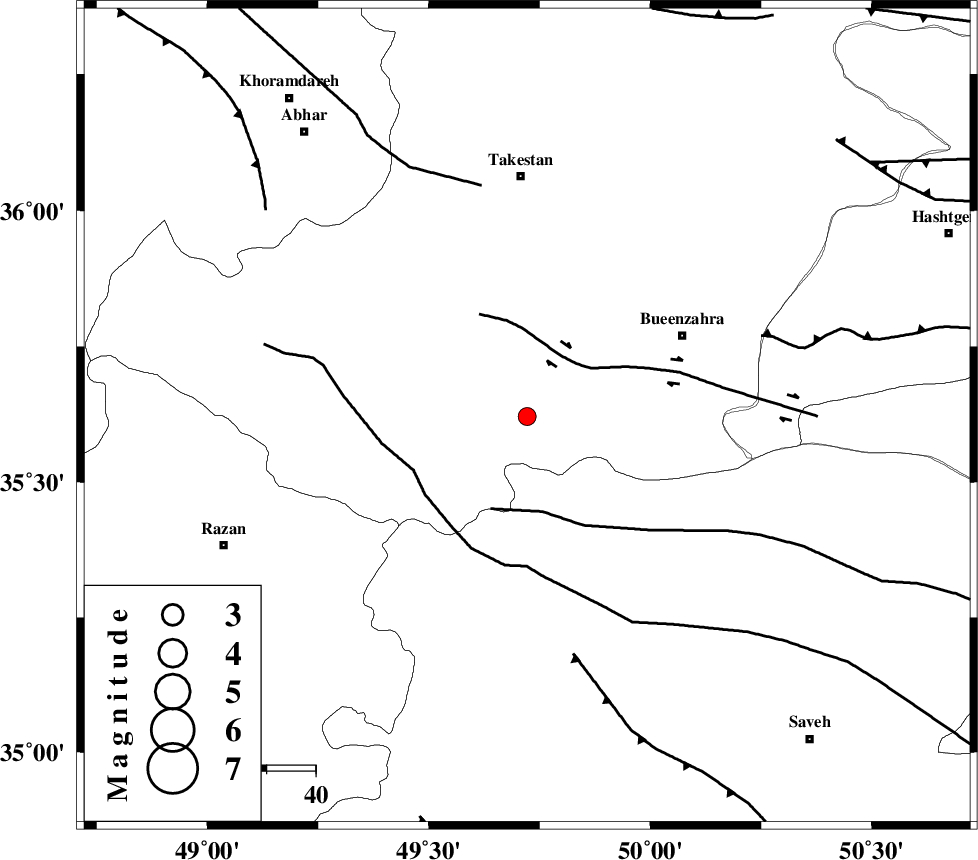

| Location | Lat:35.621 Lon: 49.722 |
| Region | Ghazvin Province, 49 km South of Takestan |
Nearest Cities |
|
| 18 km South of Danesfahan, Ghazvin Province | |
| 23 km North East of Kolanjin, Ghazvin Province | |
| 25 km South West of Sagezabad, Ghazvin Province | |
| 26 km North of Duzaj, Markazi Province | |
| 31 km South of Shal, Ghazvin Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| IPAK_F (Length: 80 km) , Distance to epicenter: 14 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 20 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 26 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127998 | IIEES | THKV | N | 79.7 | 0.18 | 2018-02-06 21:26:03 | 2018-02-07 07:01:00 | n |
| 127999 | IIEES | GIDE | N | 53.1 | 0.34 | 2018-02-06 21:26:16 | 2018-02-07 07:01:00 | n |
| 128000 | IIEES | GHVR | N | 64.2 | 0.24 | 2018-02-06 21:26:21 | 2018-02-07 07:01:00 | n |
| 128001 | IIEES | GHVR | E | 144.6 | 0.22 | 2018-02-06 21:26:26 | 2018-02-07 07:01:00 | n |
| 128002 | IIEES | DAMV | E | 35.7 | 0.3 | 2018-02-06 21:26:28 | 2018-02-07 07:01:00 | n |
| 128003 | IIEES | DAMV | N | 34.2 | 0.24 | 2018-02-06 21:26:28 | 2018-02-07 07:01:00 | n |
| 128004 | IIEES | SNGE | N | 33.2 | 0.53 | 2018-02-06 21:26:31 | 2018-02-07 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2018-02-06 21:25:45 | 0.09 | y | 110 | 72 | |||
| IIEES | ASAO | Z | Pg | E | 2018-02-06 21:25:47 | -0.21 | y | 122 | 167 | |||
| IIEES | CHTH | Z | Pg | E | 2018-02-06 21:25:48 | 0.02 | y | 131 | 76 | |||
| IIEES | GIDE | Z | Pg | E | 2018-02-06 21:25:51 | 0.23 | y | 145 | 7 | |||
| IIEES | ZNJK | Z | Pg | E | 2018-02-06 21:25:51 | -0.16 | y | 149 | 322 | |||
| IIEES | GHVR | Z | Pg | E | 2018-02-06 21:25:57 | -0.28 | y | 188 | 132 | |||
| IIEES | GHVR | N | Sg | E | 2018-02-06 21:26:20 | 0.24 | y | 188 | 132 | |||
| IIEES | DAMV | Z | Pn | E | 2018-02-06 21:26:00 | -0.06 | y | 204 | 89 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-06 21:26:02 | 0.37 | y | 224 | 255 | |||
| IIEES | GRMI | Z | Pn | E | 2018-02-06 21:26:22 | -0.29 | y | 389 | 336 | |||
