Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2018-02-06 12:28:25.6 |
| Date & Time (Local) | 1396/11/17 15:58:25.6 |

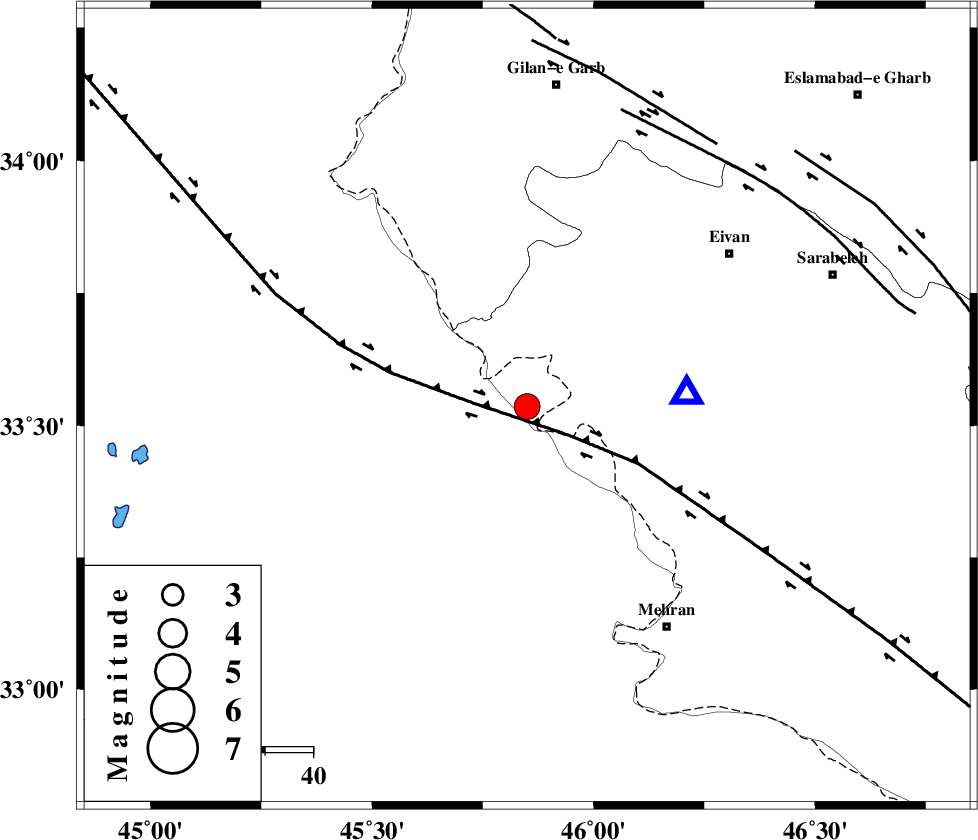

| Location | Lat:33.536 Lon: 45.85 |
| Region | Ilam Province, 68 km South of Gilan-E-Gharb |
Nearest Cities |
|
| 32 km North West of Salehabad, Ilam Province | |
| 42 km South West of Chavar, Ilam Province | |
| 43 km South East of Sumar, Kermanshah Province | |
| 53 km South West of Eyvan, Ilam Province | |
| 53 km South West of Teran, Ilam Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 5 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 18 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 57 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128011 | IIEES | ILBA | E | 13890.7 | 0.27 | 2018-02-06 12:28:38 | 2018-02-07 07:01:00 | n |
| 128012 | IIEES | ILBA | N | 13129 | 0.17 | 2018-02-06 12:28:38 | 2018-02-07 07:01:00 | n |
| 128013 | IIEES | SNGE | E | 249.4 | 0.59 | 2018-02-06 12:29:33 | 2018-02-07 07:01:00 | n |
| 128014 | IIEES | SNGE | N | 411 | 0.65 | 2018-02-06 12:29:33 | 2018-02-07 07:01:00 | n |
| 128015 | IIEES | SRSL | E | 105.3 | 0.58 | 2018-02-06 12:29:55 | 2018-02-07 07:01:00 | n |
| 128016 | IIEES | SRSL | N | 237.9 | 0.84 | 2018-02-06 12:29:57 | 2018-02-07 07:01:00 | n |
| 128017 | IIEES | GHVR | E | 33 | 0.37 | 2018-02-06 12:30:34 | 2018-02-07 07:01:00 | n |
| 128018 | IIEES | GHVR | N | 33.6 | 0.73 | 2018-02-06 12:31:02 | 2018-02-07 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-02-06 12:28:32 | -0.12 | y | 34.6 | 74 | |||
| IIEES | ILBA | N | Sg | E | 2018-02-06 12:28:37 | 0.09 | y | 34.6 | 74 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-06 12:29:00 | -0.19 | y | 221 | 38 | |||
| IIEES | SNGE | N | Sg | E | 2018-02-06 12:29:28 | 0.01 | y | 221 | 38 | |||
| IIEES | SRSL | Z | Pn | E | 2018-02-06 12:29:10 | 0.19 | y | 299 | 353 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-02-06 12:29:20 | 0.11 | y | 382 | 85 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-06 12:29:23 | -0.01 | y | 402 | 73 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-02-06 12:29:27 | 0.01 | y | 433 | 36 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-06 12:29:36 | 0.02 | y | 509 | 77 | |||
| IIEES | GRMI | Z | Pn | E | 2018-02-06 12:29:49 | -0.14 | y | 613 | 17 | |||
