Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2018-02-07 10:40:56.8 |
| Date & Time (Local) | 1396/11/18 14:10:56.8 |

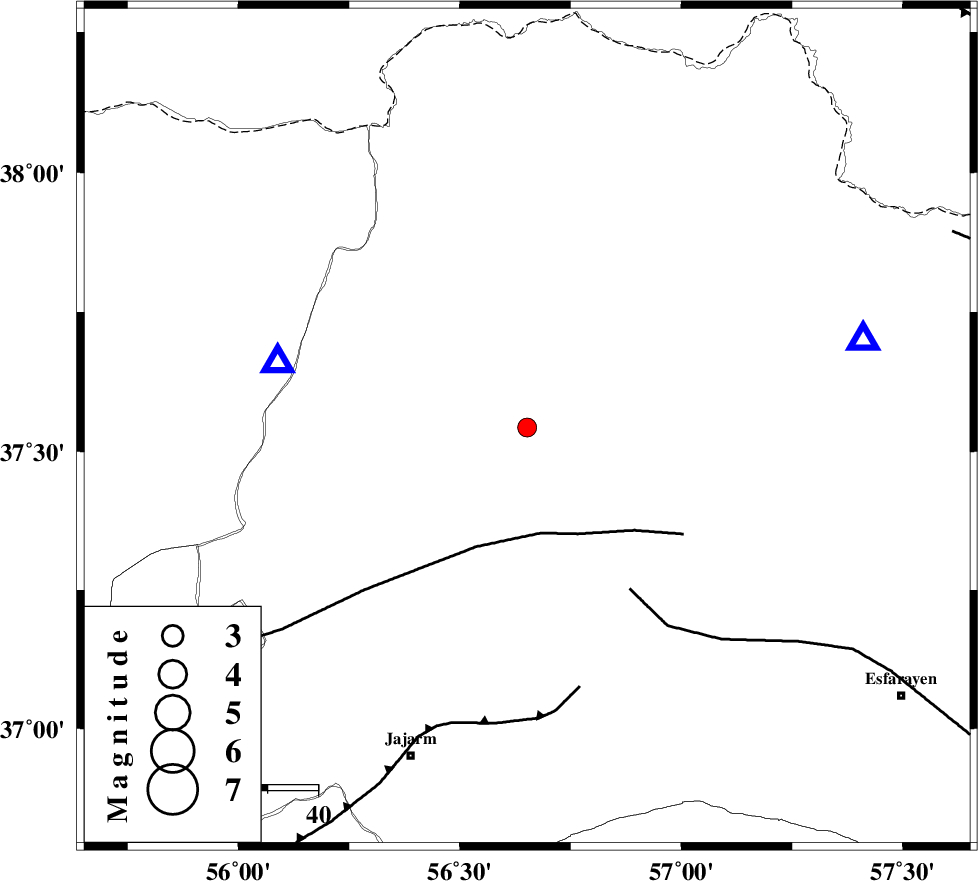

| Location | Lat:37.543 Lon: 56.652 |
| Region | Khorasan(north) Province, 25 km -West of Ashkhaneh |
Nearest Cities |
|
| 25 km West of Ashkhaneh, Khorasan(north) Province | |
| 27 km North West of Shogan, Khorasan(north) Province | |
| 33 km South West of Pish qaleh, Khorasan(north) Province | |
| 36 km South East of Garmab, Khorasan(north) Province | |
| 52 km South West of Tangehzar, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 21 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 38 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 53 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >4 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128025 | IIEES | MRVT | N | 684.4 | 0.18 | 2018-02-07 10:41:13 | 2018-02-07 11:01:00 | n |
| 128026 | IIEES | MRVT | E | 852.1 | 0.13 | 2018-02-07 10:41:14 | 2018-02-07 11:01:00 | n |
| 128027 | IIEES | BJRD | E | 554.9 | 0.17 | 2018-02-07 10:41:19 | 2018-02-07 11:01:00 | n |
| 128028 | IIEES | BJRD | N | 414.9 | 0.23 | 2018-02-07 10:41:20 | 2018-02-07 11:01:00 | n |
| 128029 | IIEES | SHRO | N | 39.7 | 0.37 | 2018-02-07 10:41:52 | 2018-02-07 11:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2018-02-07 10:41:05 | -0.1 | y | 51.3 | 285 | |||
| IIEES | MRVT | N | Sg | E | 2018-02-07 10:41:13 | 0.14 | y | 51.3 | 285 | |||
| IIEES | BJRD | Z | Pg | E | 2018-02-07 10:41:08 | -0.28 | y | 69.2 | 75 | |||
| IIEES | BJRD | N | Sg | E | 2018-02-07 10:41:18 | 0.16 | y | 69.2 | 75 | |||
| IIEES | SHRO | Z | Pg | E | 2018-02-07 10:41:26 | -0.3 | y | 180 | 199 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-07 10:41:58 | 0.56 | y | 434 | 174 | |||
| IIEES | SHRT | Z | Pn | E | 2018-02-07 10:42:11 | -0.06 | y | 544 | 142 | |||
