Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2018-02-14 20:52:59.9 |
| Date & Time (Local) | 1396/11/26 00:22:59.9 |

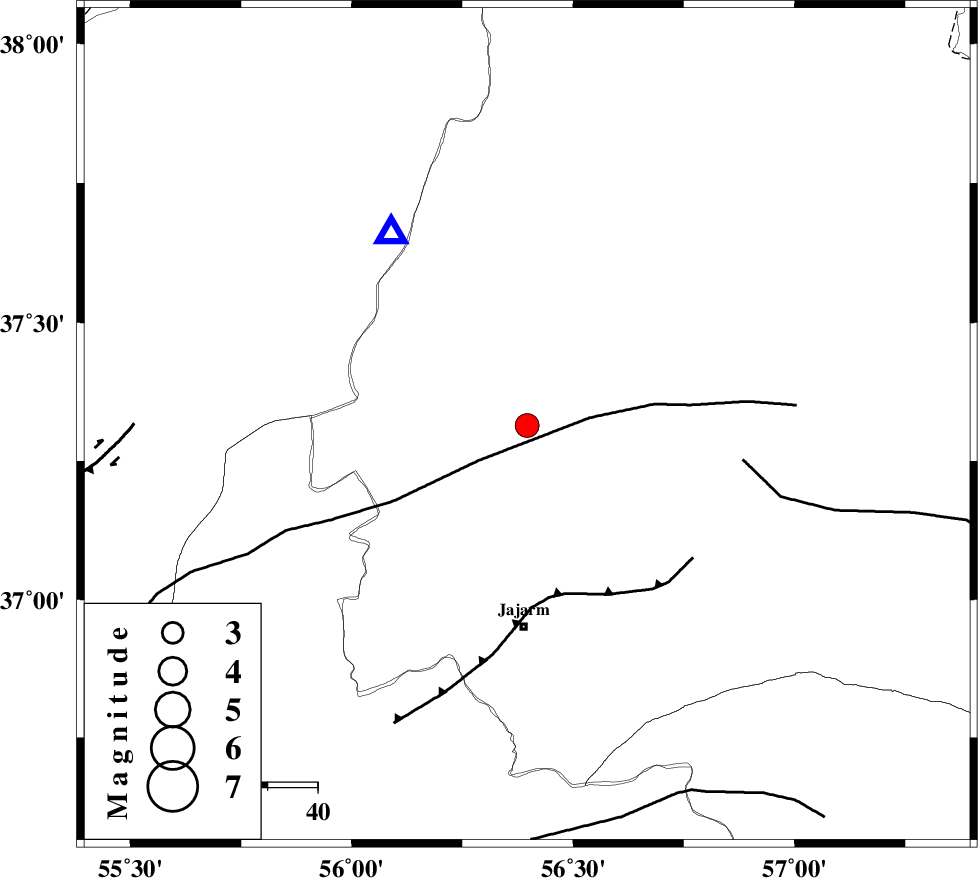

| Location | Lat:37.314 Lon: 56.396 |
| Region | Khorasan(north) Province, 40 km North of Jajarm |
Nearest Cities |
|
| 37 km North East of Garmeh, Khorasan(north) Province | |
| 40 km West of Shogan, Khorasan(north) Province | |
| 40 km North of Jajarm, Khorasan(north) Province | |
| 48 km South of Garmab, Khorasan(north) Province | |
| 54 km South East of Golidagh, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 12 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 35 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 44 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128541 | IIEES | MRVT | N | 2029.3 | 0.48 | 2018-02-14 20:53:19 | 2018-02-15 08:08:00 | n |
| 128542 | IIEES | BJRD | E | 1024.9 | 0.22 | 2018-02-14 20:53:33 | 2018-02-15 08:08:00 | n |
| 128543 | IIEES | BJRD | N | 946.8 | 0.55 | 2018-02-14 20:53:33 | 2018-02-15 08:08:00 | n |
| 128544 | IIEES | SHRO | N | 335.1 | 0.67 | 2018-02-14 20:53:47 | 2018-02-15 08:08:00 | n |
| 128545 | IIEES | TABS | N | 36.7 | 0.59 | 2018-02-14 20:55:13 | 2018-02-15 08:08:00 | n |
| 128546 | IIEES | THKV | N | 24 | 0.62 | 2018-02-14 20:55:41 | 2018-02-15 08:08:00 | n |
| 128547 | IIEES | THKV | E | 36 | 0.72 | 2018-02-14 20:55:46 | 2018-02-15 08:08:00 | n |
| 128548 | IIEES | GHVR | E | 26.7 | 0.56 | 2018-02-14 20:55:52 | 2018-02-15 08:08:00 | n |
| 128549 | IIEES | GHVR | N | 28.3 | 0.72 | 2018-02-14 20:56:01 | 2018-02-15 08:08:00 | n |
| 128550 | IIEES | YZKH | E | 13.9 | 0.72 | 2018-02-14 20:55:48 | 2018-02-15 08:08:00 | n |
| 128551 | IIEES | YZKH | N | 12.3 | 0.31 | 2018-02-14 20:55:59 | 2018-02-15 08:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2018-02-14 20:53:08 | 0.06 | y | 46.9 | 325 | |||
| IIEES | MRVT | N | Sg | E | 2018-02-14 20:53:14 | 0.03 | y | 46.9 | 325 | |||
| IIEES | BJRD | Z | Pg | E | 2018-02-14 20:53:16 | -0.2 | y | 99.4 | 64 | |||
| IIEES | SHRO | Z | Pg | E | 2018-02-14 20:53:23 | -0.68 | y | 149 | 193 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-14 20:53:59 | 1 | y | 412 | 171 | |||
| IIEES | CHTH | Z | Pn | E | 2018-02-14 20:54:09 | 0.31 | y | 497 | 253 | |||
| IIEES | THKV | Z | Pn | E | 2018-02-14 20:54:11 | 0.09 | y | 517 | 254 | |||
| IIEES | SHRT | Z | Pn | E | 2018-02-14 20:54:14 | -0.06 | y | 539 | 138 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-14 20:54:30 | 13.28 | n | 4 | 561 | 237 | ||
| IIEES | YZKH | Z | Pn | E | 2018-02-14 20:54:18 | 0.12 | y | 570 | 197 | |||
| IIEES | NASN | Z | Pn | E | 2018-02-14 20:54:21 | -0.09 | y | 598 | 214 | |||
| IIEES | BSRN | Z | Pn | E | 2018-02-14 20:54:27 | 0 | y | 644 | 156 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-14 20:54:28 | -0.1 | y | 651 | 244 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-02-14 20:54:33 | -0.25 | y | 690 | 266 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-02-14 20:54:35 | -0.16 | y | 705 | 238 | |||
| IIEES | GRMI | Z | Pn | E | 2018-02-14 20:54:40 | -1.93 | n | 4 | 764 | 285 | ||
