Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2018-02-17 15:57:25.6 |
| Date & Time (Local) | 1396/11/28 19:27:25.6 |

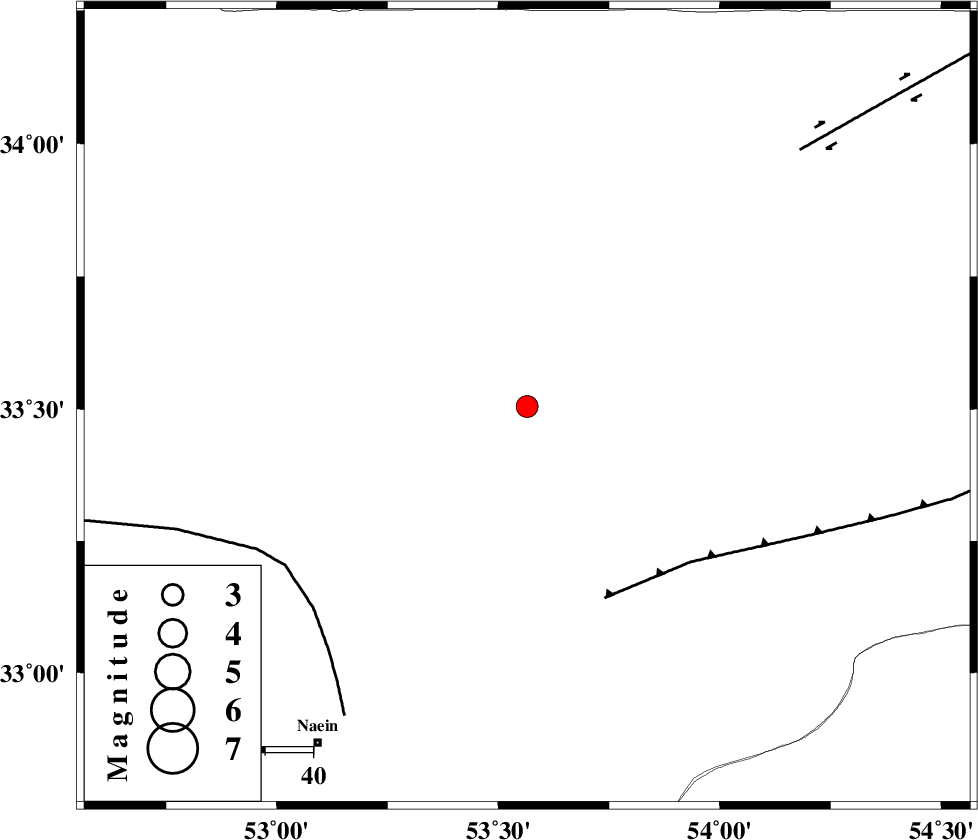

| Location | Lat:33.504 Lon: 53.565 |
| Region | Esfahan Province, 83 km North-East of Nain |
Nearest Cities |
|
| 25 km North West of Anarak, Esfahan Province | |
| 25 km South East of Maedan, Esfahan Province | |
| 72 km North East of Shahrab, Esfahan Province | |
| 76 km South West of Chupanan, Esfahan Province | |
| 83 km North East of Nain, Esfahan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 43 km | |
| CHAH_ZANGUL_F (Length: 123 km) , Distance to epicenter: 61 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 78 km | |
| Number of Phases | 15 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128657 | IIEES | YZKH | E | 201.9 | 0.49 | 2018-02-17 15:58:21 | 2018-02-18 06:38:00 | n |
| 128658 | IIEES | GHVR | E | 78 | 0.19 | 2018-02-17 15:58:35 | 2018-02-18 06:38:00 | n |
| 128659 | IIEES | GHVR | N | 111.4 | 0.51 | 2018-02-17 15:58:37 | 2018-02-18 06:38:00 | n |
| 128660 | IIEES | SHRO | N | 40.4 | 0.52 | 2018-02-17 15:59:20 | 2018-02-18 06:38:00 | n |
| 128661 | IIEES | SHRO | E | 29.2 | 0.37 | 2018-02-17 15:59:21 | 2018-02-18 06:38:00 | n |
| 128662 | IIEES | THKV | N | 24.4 | 0.37 | 2018-02-17 15:59:22 | 2018-02-18 06:38:00 | n |
| 128663 | IIEES | KRBR | E | 13.7 | 0.71 | 2018-02-17 16:00:02 | 2018-02-18 06:38:00 | n |
| 128664 | IIEES | KRBR | N | 21.2 | 0.53 | 2018-02-17 16:00:04 | 2018-02-18 06:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2018-02-17 15:57:43 | -0.22 | y | 105 | 222 | |||
| IIEES | NASN | N | Sg | E | 2018-02-17 15:57:56 | -0.06 | y | 105 | 222 | |||
| IIEES | YZKH | Z | Pg | E | 2018-02-17 15:57:51 | 0.04 | y | 156 | 142 | |||
| IIEES | YZKH | N | Sg | E | 2018-02-17 15:58:10 | 0.16 | y | 156 | 142 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-17 15:58:02 | -0.25 | y | 240 | 297 | |||
| IIEES | GHVR | N | Sg | E | 2018-02-17 15:58:33 | 0.25 | y | 240 | 297 | |||
| IIEES | DAMV | Z | Pn | E | 2018-02-17 15:58:07 | -0.35 | y | 278 | 329 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-17 15:58:14 | 0.04 | y | 330 | 86 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-17 15:58:16 | 0.14 | y | 347 | 290 | |||
| IIEES | CHTH | Z | Pn | E | 2018-02-17 15:58:16 | 0.02 | y | 348 | 321 | |||
| IIEES | SHRO | Z | Pn | E | 2018-02-17 15:58:17 | -0.26 | y | 357 | 38 | |||
| IIEES | THKV | Z | Pn | E | 2018-02-17 15:58:18 | 0.48 | y | 363 | 318 | |||
| IIEES | KRBR | Z | Pn | E | 2018-02-17 15:58:46 | 12.13 | n | 4 | 494 | 141 | ||
| IIEES | BSRN | Z | Pn | E | 2018-02-17 15:58:41 | 0.01 | y | 548 | 107 | |||
| IIEES | SHRT | Z | Pn | E | 2018-02-17 15:58:50 | 0.09 | y | 625 | 87 | |||
