Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2018-02-17 12:02:29.2 |
| Date & Time (Local) | 1396/11/28 15:32:29.2 |

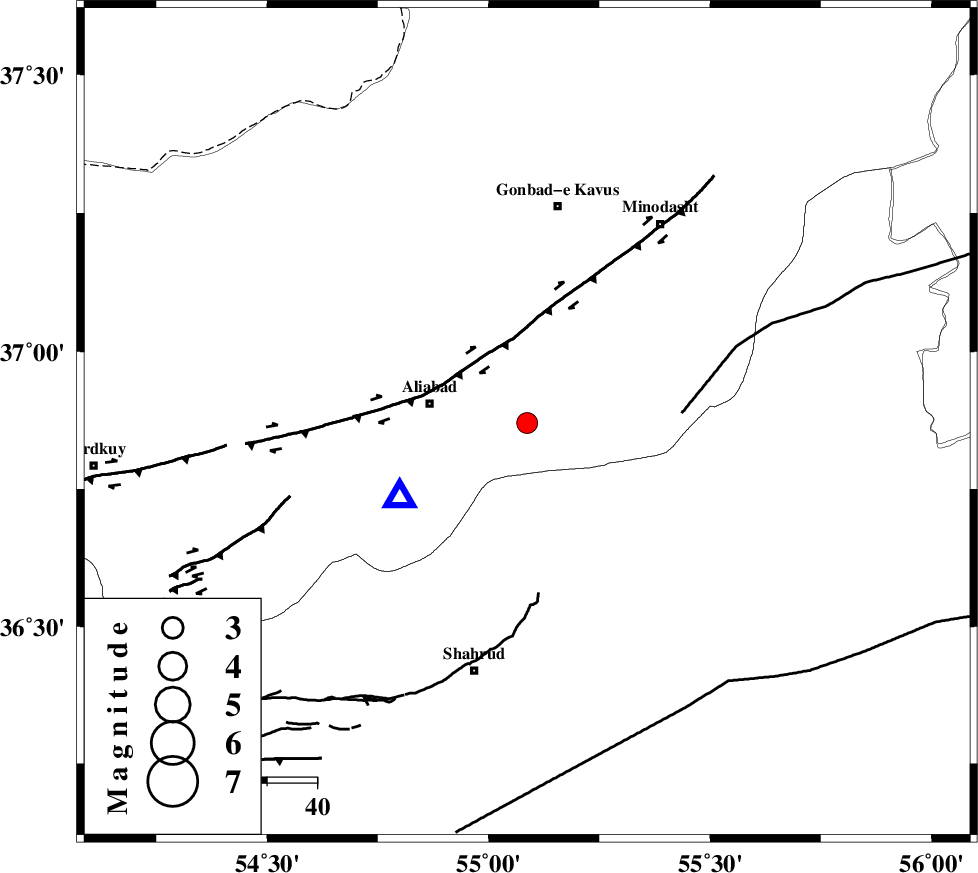

| Location | Lat:36.87 Lon: 55.087 |
| Region | Golestan Province, 17 km South of Ramian |
Nearest Cities |
|
| 17 km South of Ramian, Golestan Province | |
| 18 km South East of Khanbebin, Golestan Province | |
| 19 km South of Deland, Golestan Province | |
| 20 km East of Ali Abad, Golestan Province | |
| 24 km South West of Khanduz, Golestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 14 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 19 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 31 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128668 | IIEES | MRVT | N | 143.2 | 0.24 | 2018-02-17 12:03:12 | 2018-02-18 06:38:00 | n |
| 128669 | IIEES | BJRD | E | 62.4 | 0.31 | 2018-02-17 12:03:39 | 2018-02-18 06:38:00 | n |
| 128670 | IIEES | BJRD | N | 57.5 | 0.44 | 2018-02-17 12:03:40 | 2018-02-18 06:38:00 | n |
| 128671 | IIEES | THKV | N | 28.8 | 0.55 | 2018-02-17 12:04:21 | 2018-02-18 06:38:00 | n |
| 128672 | IIEES | THKV | E | 25.9 | 0.32 | 2018-02-17 12:04:21 | 2018-02-18 06:38:00 | n |
| 128673 | IIEES | GHVR | E | 10.3 | 0.35 | 2018-02-17 12:04:39 | 2018-02-18 06:38:00 | n |
| 128674 | IIEES | GHVR | N | 12.9 | 0.5 | 2018-02-17 12:04:41 | 2018-02-18 06:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2018-02-17 12:02:49 | -0.37 | y | 125 | 45 | |||
| IIEES | SHRO | Z | Pg | E | 2018-02-17 12:02:50 | -0.15 | y | 127 | 139 | |||
| IIEES | SHRO | E | Sg | E | 2018-02-17 12:03:06 | 0.31 | y | 127 | 139 | |||
| IIEES | BJRD | Z | Pn | E | 2018-02-17 12:03:05 | 0.26 | y | 226 | 65 | |||
| IIEES | BJRD | N | Sg | E | 2018-02-17 12:03:33 | 0.2 | y | 226 | 65 | |||
| IIEES | CHTH | Z | Pn | E | 2018-02-17 12:03:22 | -0.21 | y | 371 | 254 | |||
| IIEES | THKV | Z | Pn | E | 2018-02-17 12:03:25 | 0.36 | y | 392 | 256 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-17 12:03:25 | -0.81 | y | 402 | 152 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-17 12:03:31 | 0.24 | y | 437 | 234 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-17 12:03:42 | 0.15 | y | 525 | 242 | |||
