Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2018-02-21 10:14:28.7 |
| Date & Time (Local) | 1396/12/2 13:44:28.7 |

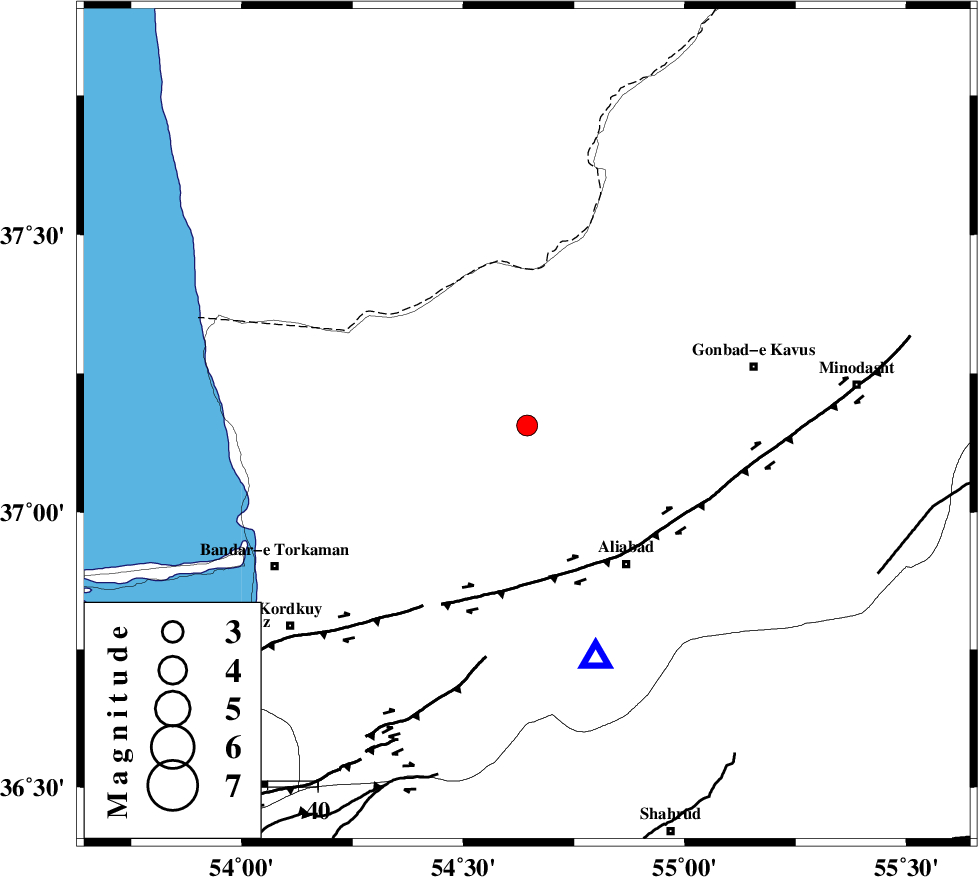

| Location | Lat:37.156 Lon: 54.644 |
| Region | Golestan Province, 23 km North-East of Aq Qaleh |
Nearest Cities |
|
| 11 km North of Gariduji, Golestan Province | |
| 20 km North East of Qanqarmeh, Golestan Province | |
| 21 km North of Nodeh malek, Golestan Province | |
| 23 km North East of Aq Qaleh, Golestan Province | |
| 34 km South of Enchehborun, Golestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 33 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 63 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 65 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128940 | IIEES | MRVT | E | 176.3 | 0.19 | 2018-02-21 10:15:12 | 2018-02-24 07:46:00 | n |
| 128941 | IIEES | DAMV | N | 32.8 | 0.53 | 2018-02-21 10:15:57 | 2018-02-24 07:46:00 | n |
| 128942 | IIEES | THKV | N | 33.6 | 0.41 | 2018-02-21 10:16:17 | 2018-02-24 07:46:00 | n |
| 128943 | IIEES | THKV | E | 39.3 | 0.53 | 2018-02-21 10:16:17 | 2018-02-24 07:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2018-02-21 10:14:51 | -0.36 | y | 140 | 66 | |||
| IIEES | MRVT | N | Sg | E | 2018-02-21 10:15:09 | 0.37 | y | 140 | 66 | |||
| IIEES | SHRO | Z | Pg | E | 2018-02-21 10:14:57 | -0.35 | y | 177 | 136 | |||
| IIEES | SHRO | N | Sg | E | 2018-02-21 10:15:19 | 0.33 | y | 177 | 136 | |||
| IIEES | BJRD | Z | Pn | E | 2018-02-21 10:15:07 | -0.05 | y | 252 | 75 | |||
| IIEES | DAMV | Z | Pn | E | 2018-02-21 10:15:13 | 0.27 | y | 294 | 236 | |||
| IIEES | THKV | Z | Pn | E | 2018-02-21 10:15:21 | 0.13 | y | 364 | 249 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-21 10:15:31 | -0.42 | y | 449 | 149 | |||
