Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2018-03-10 11:47:25.0 |
| Date & Time (Local) | 1396/12/19 15:17:25.0 |

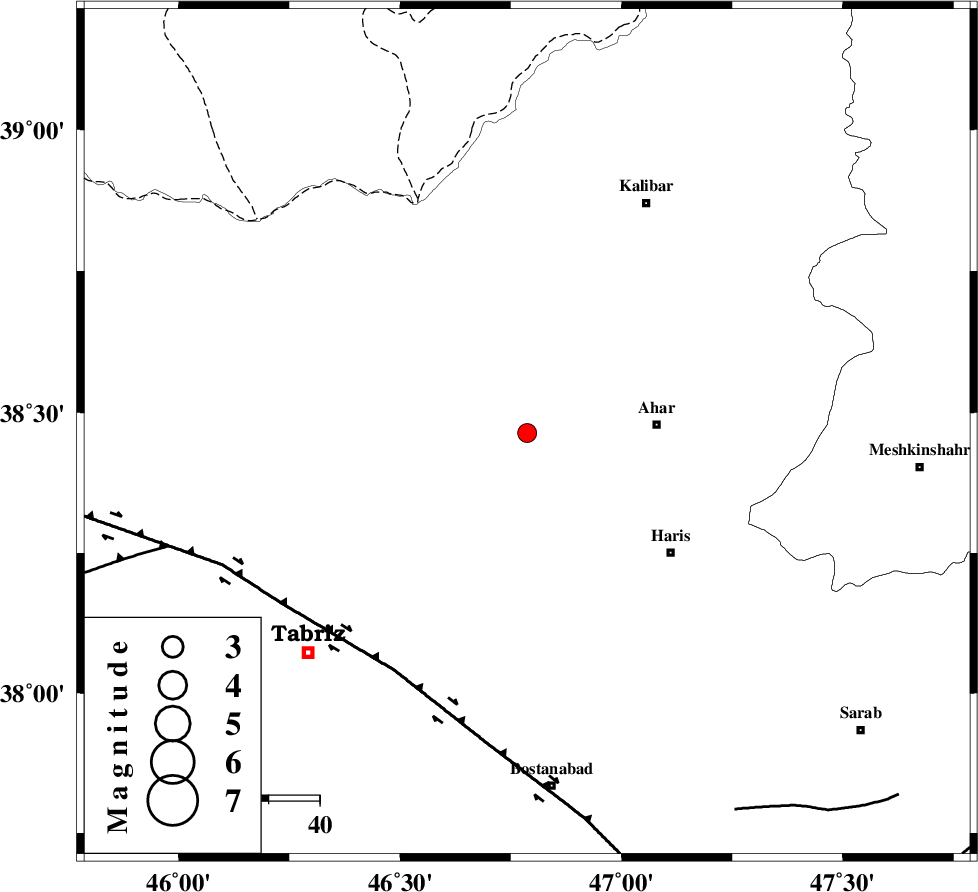

| Location | Lat:38.463 Lon: 46.787 |
| Region | Azarbaijan Sharghi Province, 26 km -West of Ahar |
Nearest Cities |
|
| 13 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 14 km East of Varzagan, Azarbaijan Sharghi Province | |
| 18 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 19 km South West of Azghan, Azarbaijan Sharghi Province | |
| 21 km North West of Khuniq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 74 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 85 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 129321 | IIEES | GRMI | E | 211.3 | 0.27 | 2018-03-10 11:47:56 | 2018-03-11 06:15:00 | n |
| 129322 | IIEES | GRMI | N | 121.3 | 0.18 | 2018-03-10 11:47:59 | 2018-03-11 06:15:00 | n |
| 129323 | IIEES | MAKU | E | 67.7 | 0.31 | 2018-03-10 11:48:25 | 2018-03-11 06:15:00 | n |
| 129324 | IIEES | MAKU | N | 68.6 | 0.22 | 2018-03-10 11:48:25 | 2018-03-11 06:15:00 | n |
| 129325 | IIEES | SRSL | E | 29.2 | 0.39 | 2018-03-10 11:48:49 | 2018-03-11 06:15:00 | n |
| 129326 | IIEES | SRSL | N | 28 | 0.67 | 2018-03-10 11:48:53 | 2018-03-11 06:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2018-03-10 11:47:42 | -0.17 | y | 104 | 68 | |||
| IIEES | GRMI | N | Sg | E | 2018-03-10 11:47:55 | 0.17 | y | 104 | 68 | |||
| IIEES | MAKU | Z | Pn | E | 2018-03-10 11:47:58 | 0.03 | y | 208 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2018-03-10 11:48:24 | -0.04 | y | 208 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-03-10 11:48:05 | -0.18 | y | 260 | 139 | |||
| IIEES | SRSL | Z | Pn | E | 2018-03-10 11:48:07 | 0.2 | y | 277 | 206 | |||
