Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2018-04-06 10:15:30.6 |
| Date & Time (Local) | 1397/1/17 14:45:30.6 |
| Location | Lat:33.505 Lon: 57.471 |
| Region | Khorasan(center) Province, 52 km -East of Tabas |
Nearest Cities |
|
| 23 km South of Arsak, Khorasan(center) Province | |
| 24 km North of Dihuk, Yazd Province | |
| 40 km South East of Reqqeh, Khorasan(center) Province | |
| 40 km South of Boshravieh, Khorasan(center) Province | |
| 50 km North East of Kerit, Yazd Province | |
| Depth | 6 km |
| Agency | |

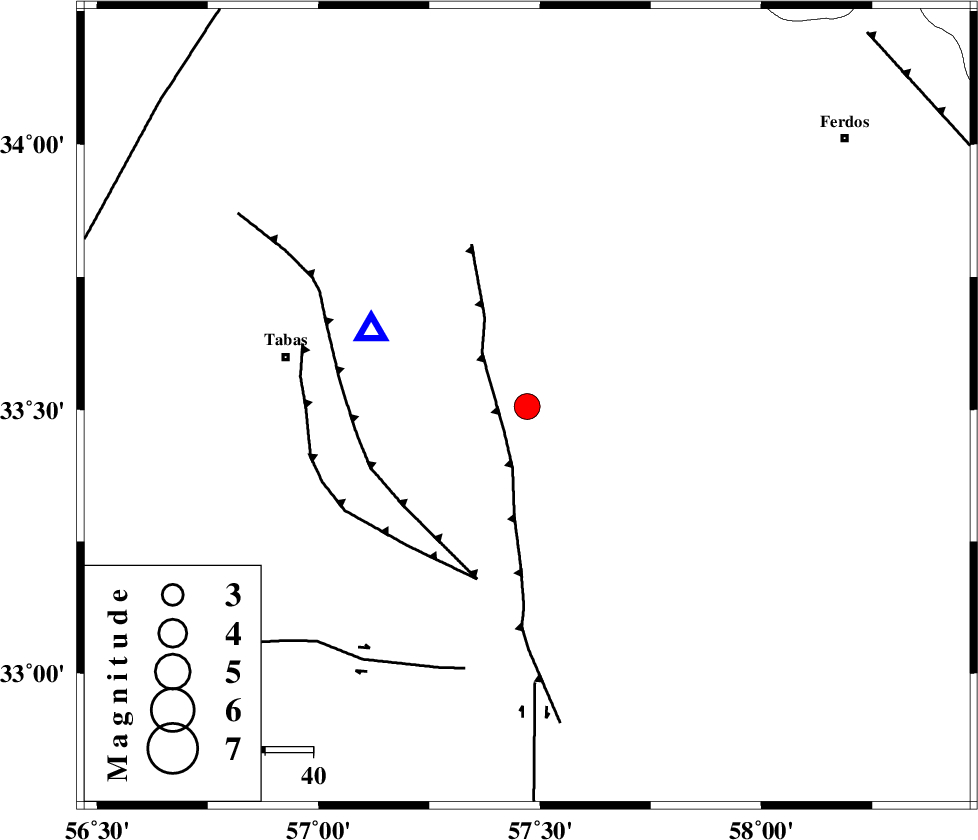

Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 7 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 33 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 38 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >6.2 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 129944 | IIEES | TABS | N | 5230.6 | 0.32 | 2018-04-06 10:15:43 | 2018-04-07 06:38:00 | n |
| 129945 | IIEES | YZKH | E | 274.8 | 0.54 | 2018-04-06 10:16:55 | 2018-04-07 06:38:00 | n |
| 129946 | IIEES | YZKH | N | 164.4 | 0.54 | 2018-04-06 10:17:00 | 2018-04-07 06:38:00 | n |
| 129947 | IIEES | KRBR | E | 169.2 | 0.37 | 2018-04-06 10:17:26 | 2018-04-07 06:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2018-04-06 10:15:37 | -0.38 | y | 36.3 | 296 | |||
| IIEES | TABS | N | Sg | E | 2018-04-06 10:15:42 | -0.09 | y | 36.3 | 296 | |||
| IIEES | BSRN | Z | Pn | E | 2018-04-06 10:16:08 | 0.66 | y | 231 | 137 | |||
| IIEES | BSRN | N | S | E | 2018-04-06 10:16:34 | -0.83 | y | 231 | 137 | |||
| IIEES | SHRT | Z | Pn | E | 2018-04-06 10:16:12 | 0.14 | y | 262 | 86 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-06 10:16:16 | 0.32 | y | 296 | 246 | |||
| IIEES | SHRO | Z | Pn | E | 2018-04-06 10:16:17 | 0.06 | y | 308 | 335 | |||
| IIEES | KRBR | Z | Pn | E | 2018-04-06 10:16:28 | 0.2 | y | 396 | 190 | |||
