Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2018-04-07 08:48:56.2 |
| Date & Time (Local) | 1397/1/18 13:18:56.2 |

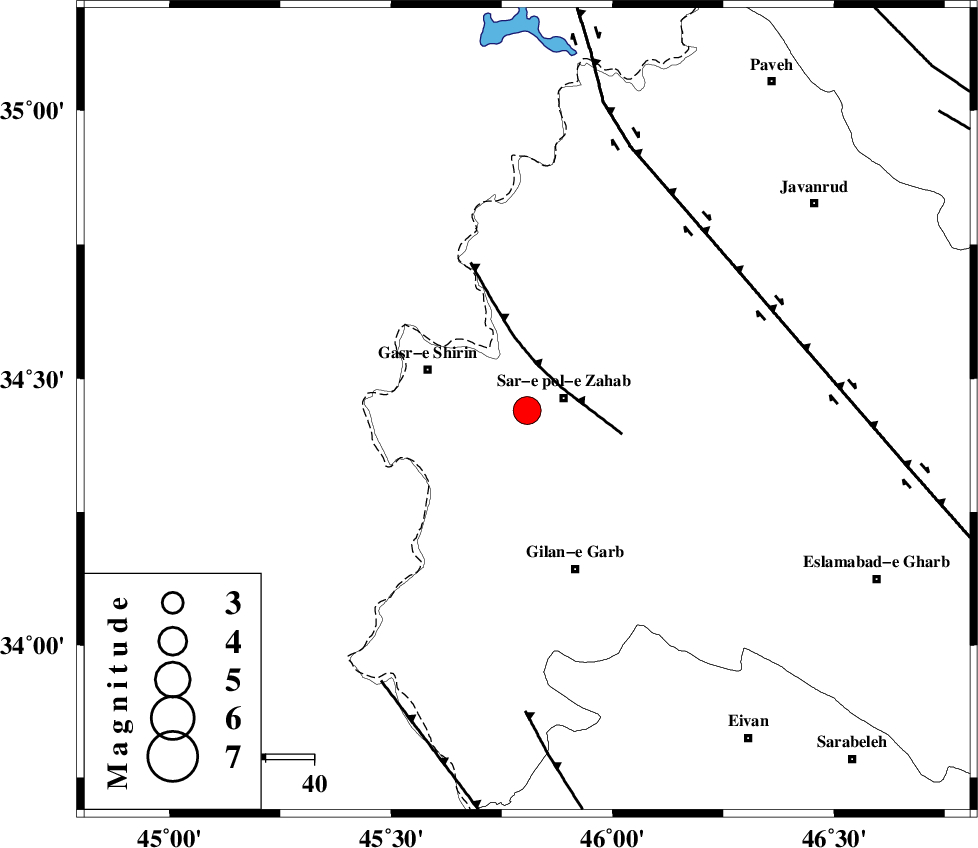

| Location | Lat:34.44 Lon: 45.807 |
| Region | Kermanshah Province, 8 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 6 km of Qareh belagh, Kermanshah Province | |
| 8 km of Sar-e pol-e zahab, Kermanshah Province | |
| 11 km North West of Tarkveys, Kermanshah Province | |
| 14 km South of Mirmiru, Kermanshah Province | |
| 15 km North of Chub baghan, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 9 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 52 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 63 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130051 | IIEES | ILBA | N | 3406.1 | 0.37 | 2018-04-07 08:49:32 | 2018-04-07 09:52:00 | n |
| 130052 | IIEES | ILBA | E | 3268.3 | 0.26 | 2018-04-07 08:49:33 | 2018-04-07 09:52:00 | n |
| 130053 | IIEES | SNGE | E | 1114.1 | 0.73 | 2018-04-07 08:49:48 | 2018-04-07 09:52:00 | n |
| 130054 | IIEES | SNGE | N | 1687.8 | 0.73 | 2018-04-07 08:49:49 | 2018-04-07 09:52:00 | n |
| 130055 | IIEES | SRSL | E | 2017.7 | 0.46 | 2018-04-07 08:49:57 | 2018-04-07 09:52:00 | n |
| 130056 | IIEES | GHVR | E | 50.5 | 0.5 | 2018-04-07 08:51:31 | 2018-04-07 09:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-04-07 08:49:12 | -0.22 | y | 97.7 | 158 | |||
| IIEES | ILBA | N | Sg | E | 2018-04-07 08:49:25 | 0.15 | y | 97.7 | 158 | |||
| IIEES | SNGE | Z | Pg | E | 2018-04-07 08:49:22 | -0.31 | y | 158 | 62 | |||
| IIEES | SNGE | N | Sg | E | 2018-04-07 08:49:41 | 0.03 | y | 158 | 62 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-07 08:49:29 | 0.32 | y | 200 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-07 08:49:52 | 0.56 | y | 388 | 87 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-04-07 08:49:52 | 0.05 | y | 391 | 100 | |||
| IIEES | THKV | Z | Pn | E | 2018-04-07 08:50:04 | -0.5 | y | 490 | 69 | |||
| IIEES | GHVR | Z | Pn | E | 2018-04-07 08:50:06 | 0.47 | y | 500 | 88 | |||
| IIEES | CHTH | Z | Pn | E | 2018-04-07 08:50:07 | 0.07 | y | 511 | 70 | |||
| IIEES | GRMI | Z | Pn | E | 2018-04-07 08:50:08 | 0.42 | y | 519 | 20 | |||
| IIEES | MAKU | Z | Pn | E | 2018-04-07 08:50:12 | -0.63 | y | 555 | 350 | |||
| IIEES | DAMV | Z | Pn | E | 2018-04-07 08:50:15 | -0.06 | y | 578 | 75 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-07 08:50:26 | -1.04 | y | 674 | 104 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-07 08:50:49 | 0.41 | y | 848 | 103 | |||
