Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2018-04-29 15:41:43.2 |
| Date & Time (Local) | 1397/2/9 20:11:43.2 |

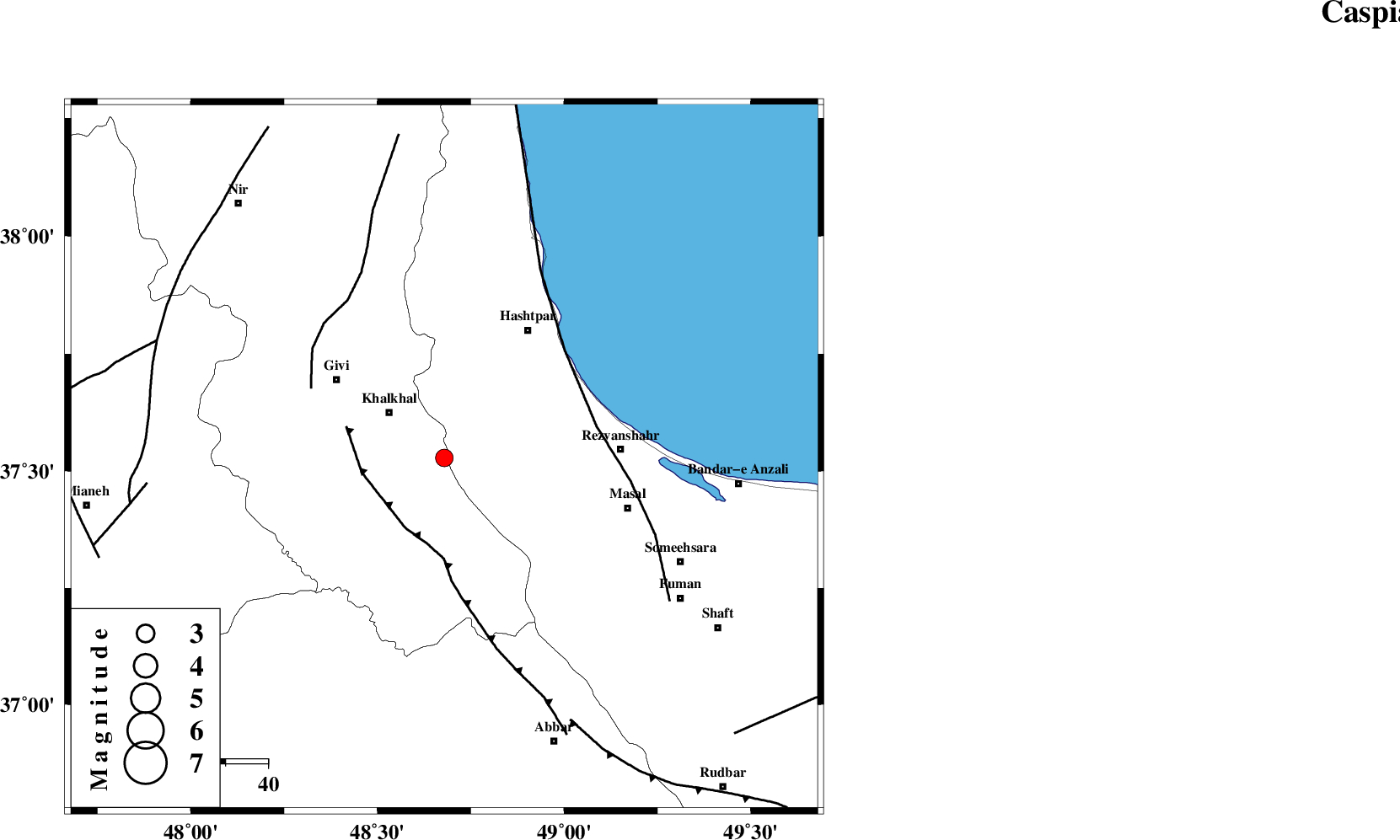

| Location | Lat:37.528 Lon: 48.679 |
| Region | Ardebil Province, 17 km -East of Khalkhal |
Nearest Cities |
|
| 14 km East of Khojin, Ardebil Province | |
| 16 km North of Kalur, Ardebil Province | |
| 17 km East of Khalkhal, Ardebil Province | |
| 18 km West of Ardeh, Gilan Province | |
| 23 km North West of Shal, Ardebil Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 18 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 35 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 37 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 8 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130974 | IIEES | ZNJK | E | 238.1 | 0.26 | 2018-04-29 15:42:12 | 2018-04-30 04:58:00 | n |
| 130975 | IIEES | GIDE | N | 620.3 | 0.23 | 2018-04-29 15:42:24 | 2018-04-30 04:58:00 | n |
| 130976 | IIEES | GIDE | E | 408.5 | 0.38 | 2018-04-29 15:42:28 | 2018-04-30 04:58:00 | n |
| 130977 | IIEES | GRMI | N | 208.1 | 0.27 | 2018-04-29 15:42:31 | 2018-04-30 04:58:00 | n |
| 130978 | IIEES | GRMI | E | 194.7 | 0.37 | 2018-04-29 15:42:31 | 2018-04-30 04:58:00 | n |
| 130979 | IIEES | THKV | E | 38.3 | 0.36 | 2018-04-29 15:43:03 | 2018-04-30 04:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2018-04-29 15:41:59 | -0.04 | y | 95.1 | 180 | |||
| IIEES | ZNJK | E | Sg | E | 2018-04-29 15:42:11 | -0.46 | y | 95.1 | 180 | |||
| IIEES | GIDE | Z | Pg | E | 2018-04-29 15:42:04 | -0.84 | y | 128 | 121 | |||
| IIEES | GIDE | N | Sg | E | 2018-04-29 15:42:21 | 0.01 | y | 128 | 121 | |||
| IIEES | GRMI | Z | Pg | E | 2018-04-29 15:42:10 | -0.12 | y | 158 | 334 | |||
| IIEES | THKV | Z | Pn | E | 2018-04-29 15:42:25 | 0.64 | y | 266 | 132 | |||
| IIEES | CHTH | Z | Pn | E | 2018-04-29 15:42:27 | 0.43 | y | 283 | 129 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-29 15:42:29 | 1.03 | y | 296 | 204 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-29 15:42:31 | -0.28 | y | 324 | 244 | |||
| IIEES | MAKU | Z | Pn | E | 2018-04-29 15:42:41 | -0.39 | y | 403 | 301 | |||
