Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2018-04-30 05:49:59.2 |
| Date & Time (Local) | 1397/2/10 10:19:59.2 |

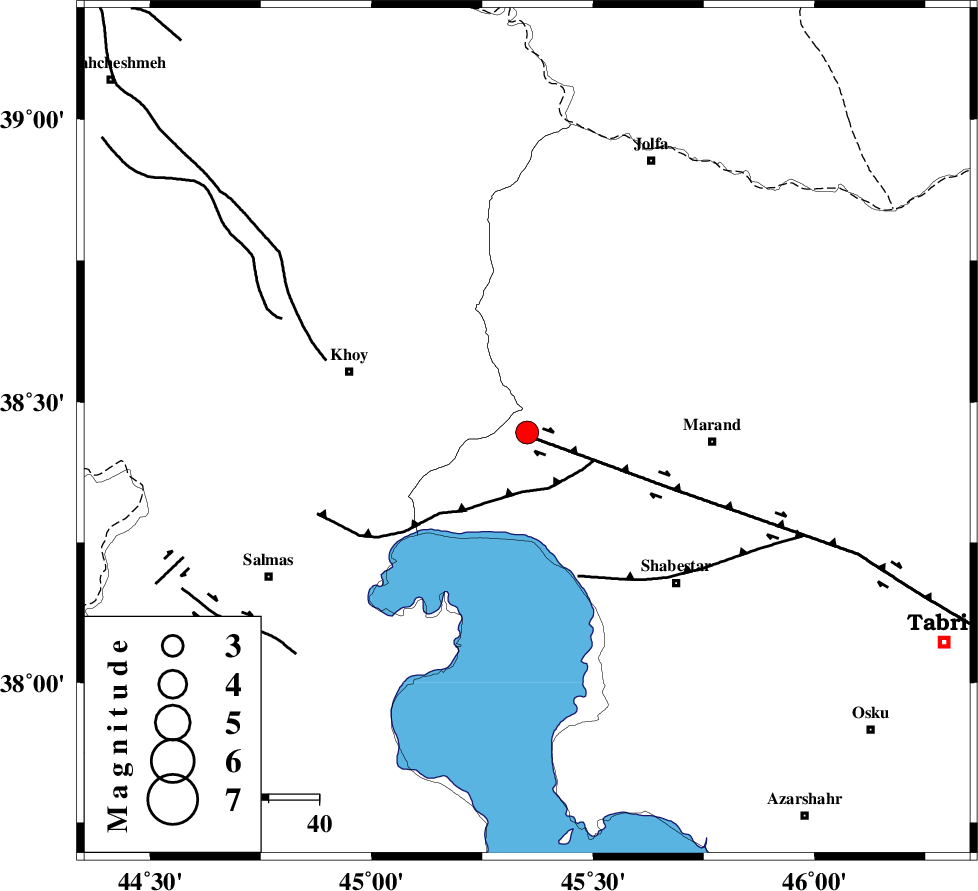

| Location | Lat:38.446 Lon: 45.351 |
| Region | Azarbaijan Sharghi Province, 36 km -West of Marand |
Nearest Cities |
|
| 13 km North of Jahregan, Azarbaijan Sharghi Province | |
| 16 km North of Tasuj, Azarbaijan Sharghi Province | |
| 19 km West of Kashksaray, Azarbaijan Sharghi Province | |
| 25 km South West of Yekan kahriz, Azarbaijan Sharghi Province | |
| 26 km West of Yamchi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 2 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 12 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 30 km | |
| Number of Phases | 8 |
| RMS | 0 |
| Number of Stations | 7 |
| Error in Latitude | >0.9 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131008 | IIEES | MAKU | N | 357.5 | 0.27 | 2018-04-30 05:50:41 | 2018-04-30 06:28:00 | n |
| 131009 | IIEES | GRMI | E | 189.6 | 0.49 | 2018-04-30 05:51:03 | 2018-04-30 06:28:00 | n |
| 131010 | IIEES | GRMI | N | 123.3 | 0.3 | 2018-04-30 05:51:04 | 2018-04-30 06:28:00 | n |
| 131011 | IIEES | SRSL | N | 132.6 | 0.53 | 2018-04-30 05:51:13 | 2018-04-30 06:28:00 | n |
| 131012 | IIEES | SRSL | E | 83.8 | 0.35 | 2018-04-30 05:51:18 | 2018-04-30 06:28:00 | n |
| 131013 | IIEES | THKV | E | 14.3 | 0.41 | 2018-04-30 05:52:44 | 2018-04-30 06:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-04-30 05:50:18 | -0.02 | y | 116 | 330 | |||
| IIEES | MAKU | N | Sg | E | 2018-04-30 05:50:33 | 0.01 | y | 116 | 330 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-30 05:50:37 | 0 | y | 248 | 178 | |||
| IIEES | SRSL | N | Sg | E | 2018-04-30 05:51:09 | -0.01 | y | 248 | 178 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-04-30 05:50:51 | -0.06 | y | 354 | 123 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-30 05:50:58 | 0.04 | y | 413 | 154 | |||
| IIEES | GIDE | Z | Pn | E | 2018-04-30 05:51:01 | 0.02 | y | 436 | 111 | |||
| IIEES | THKV | Z | Pn | E | 2018-04-30 05:51:17 | 0.02 | y | 565 | 118 | |||
