Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2018-05-20 14:49:54.1 |
| Date & Time (Local) | 1397/2/30 19:19:54.1 |

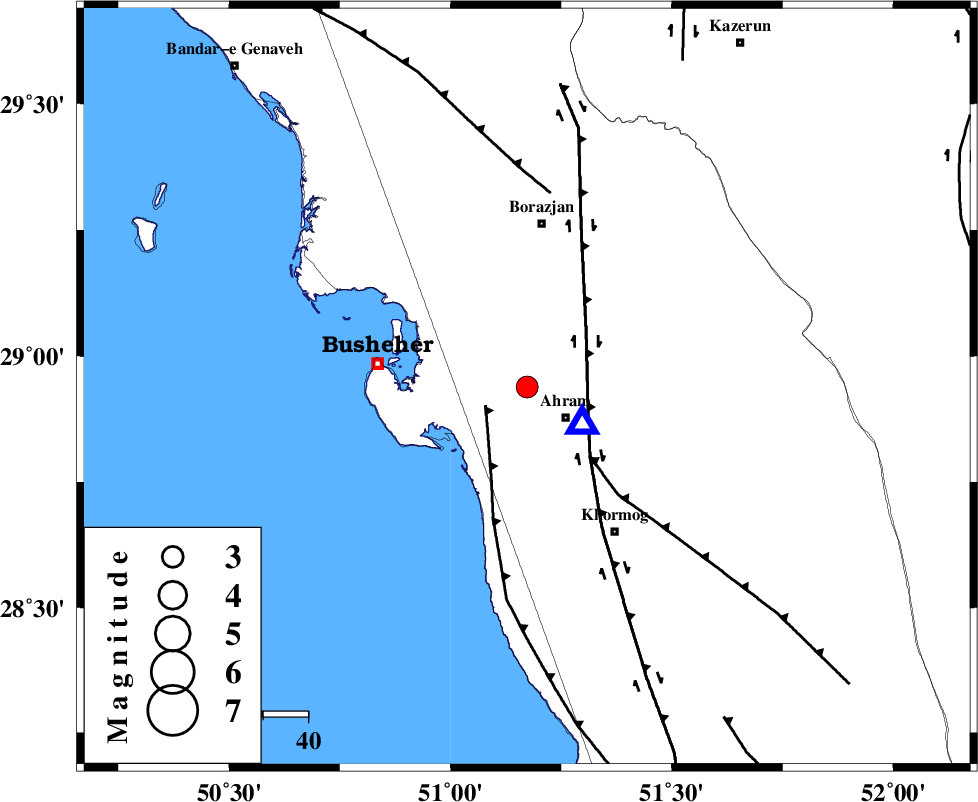

| Location | Lat:28.938 Lon: 51.173 |
| Region | Bushehr Province, 11 km of Ahram |
Nearest Cities |
|
| 9 km of Bazuei, Bushehr Province | |
| 11 km North of Ahram, Bushehr Province | |
| 15 km East of Choghadak, Bushehr Province | |
| 22 km North East of Delvar, Bushehr Province | |
| 28 km West of Kalameh, Bushehr Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF2 (Length: 84 km) , Distance to epicenter: 10 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 14 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 21 km | |
| Number of Phases | 11 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132061 | IIEES | AHRM | E | 11305.9 | 0.37 | 2018-05-20 14:50:00 | 2018-05-21 04:12:00 | n |
| 132062 | IIEES | AHRM | N | 5584.9 | 0.37 | 2018-05-20 14:50:02 | 2018-05-21 04:12:00 | n |
| 132063 | IIEES | KHMZ | N | 4.4 | 0.31 | 2018-05-20 14:52:14 | 2018-05-21 04:12:00 | n |
| 132064 | IIEES | KHMZ | E | 6.6 | 0.44 | 2018-05-20 14:52:15 | 2018-05-21 04:12:00 | n |
| 132065 | IIEES | KRBR | E | 9.8 | 0.48 | 2018-05-20 14:52:17 | 2018-05-21 04:12:00 | n |
| 132066 | IIEES | KRBR | N | 9.6 | 0.4 | 2018-05-20 14:52:40 | 2018-05-21 04:12:00 | n |
| 132067 | IIEES | ASAO | N | 3.9 | 0.64 | 2018-05-20 14:52:31 | 2018-05-21 04:12:00 | n |
| 132068 | IIEES | ASAO | E | 5.8 | 0.71 | 2018-05-20 14:52:33 | 2018-05-21 04:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2018-05-20 14:49:57 | 0.1 | y | 14.5 | 124 | |||
| IIEES | AHRM | N | Sg | E | 2018-05-20 14:50:00 | -0.13 | y | 14.5 | 124 | |||
| IIEES | GHIR | Z | Pg | E | 2018-05-20 14:50:25 | 0.06 | y | 192 | 112 | |||
| IIEES | GHIR | Z | Sg | E | 2018-05-20 14:50:48 | 0.01 | y | 192 | 112 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-20 14:50:58 | 0.04 | y | 456 | 20 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-20 14:51:04 | -0.01 | y | 504 | 40 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-20 14:51:09 | 0.03 | y | 545 | 348 | |||
| IIEES | KRBR | Z | Pn | E | 2018-05-20 14:51:10 | 0.08 | y | 554 | 77 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-20 14:51:20 | -0.25 | y | 632 | 350 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-20 14:51:29 | 0.14 | y | 702 | 319 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-20 14:51:37 | -0.17 | y | 770 | 46 | |||
