Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2017-11-14 01:22:20.2 |
| Date & Time (Local) | 1396/8/23 04:52:20.2 |

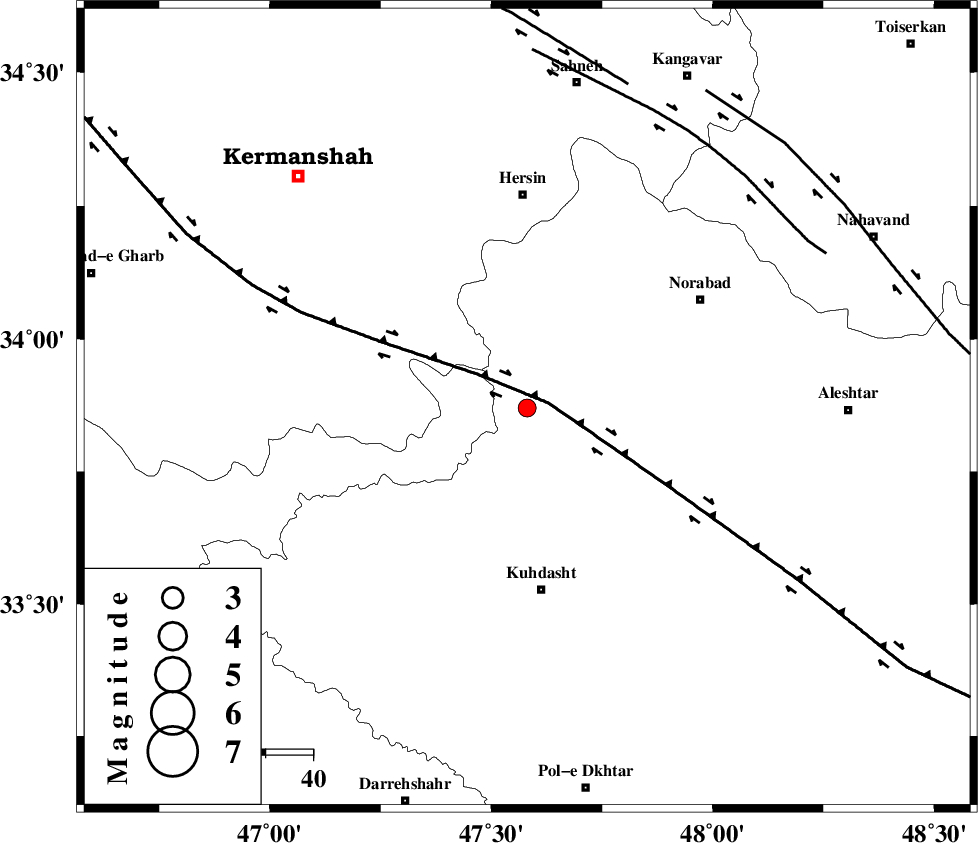

| Location | Lat:33.87 Lon: 47.581 |
| Region | Lorestan Province, 38 km North of Kuhdasht |
Nearest Cities |
|
| 26 km South West of Kahrizvardasht-e olia, Lorestan Province | |
| 37 km South West of Zafarabad, Lorestan Province | |
| 38 km North of Kuhdasht, Lorestan Province | |
| 41 km South East of Cheshmeh kabud, Kermanshah Province | |
| 41 km South West of Farhadabad, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 5 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 66 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 71 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132813 | IIEES | ILBA | N | 135.3 | 0.26 | 2017-11-14 01:23:03 | 2018-05-29 08:05:00 | n |
| 132814 | IIEES | SNGE | N | 107.3 | 0.61 | 2017-11-14 01:23:07 | 2018-05-29 08:05:00 | n |
| 132815 | IIEES | SNGE | E | 92.1 | 0.61 | 2017-11-14 01:23:08 | 2018-05-29 08:05:00 | n |
| 132816 | IIEES | GHVR | N | 12.9 | 0.56 | 2017-11-14 01:24:04 | 2018-05-29 08:05:00 | n |
| 132817 | IIEES | GHVR | E | 17.5 | 0.78 | 2017-11-14 01:24:05 | 2018-05-29 08:05:00 | n |
| 132818 | IIEES | GIDE | N | 7.4 | 0.45 | 2017-11-14 01:24:29 | 2018-05-29 08:05:00 | n |
| 132819 | IIEES | GIDE | E | 5.4 | 0.54 | 2017-11-14 01:24:31 | 2018-05-29 08:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-11-14 01:22:41 | -0.01 | y | 130 | 258 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-14 01:22:57 | 0.06 | y | 130 | 258 | |||
| IIEES | SNGE | Z | Pg | E | 2017-11-14 01:22:43 | -0.13 | y | 137 | 351 | |||
| IIEES | SNGE | N | Sg | E | 2017-11-14 01:22:59 | -0.08 | y | 137 | 351 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-14 01:22:55 | -0.23 | y | 221 | 93 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-14 01:22:57 | -0.07 | y | 238 | 71 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-14 01:23:08 | 0.2 | y | 327 | 18 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-14 01:23:14 | 3.35 | n | 4 | 345 | 78 | ||
| IIEES | GIDE | Z | Pn | E | 2017-11-14 01:23:17 | 0.34 | y | 399 | 31 | |||
