Event Specification

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 3.1
Date & Time (UTC) 2018-05-31 07:45:18.2
Date & Time (Local) 1397/3/10  12:15:18.2

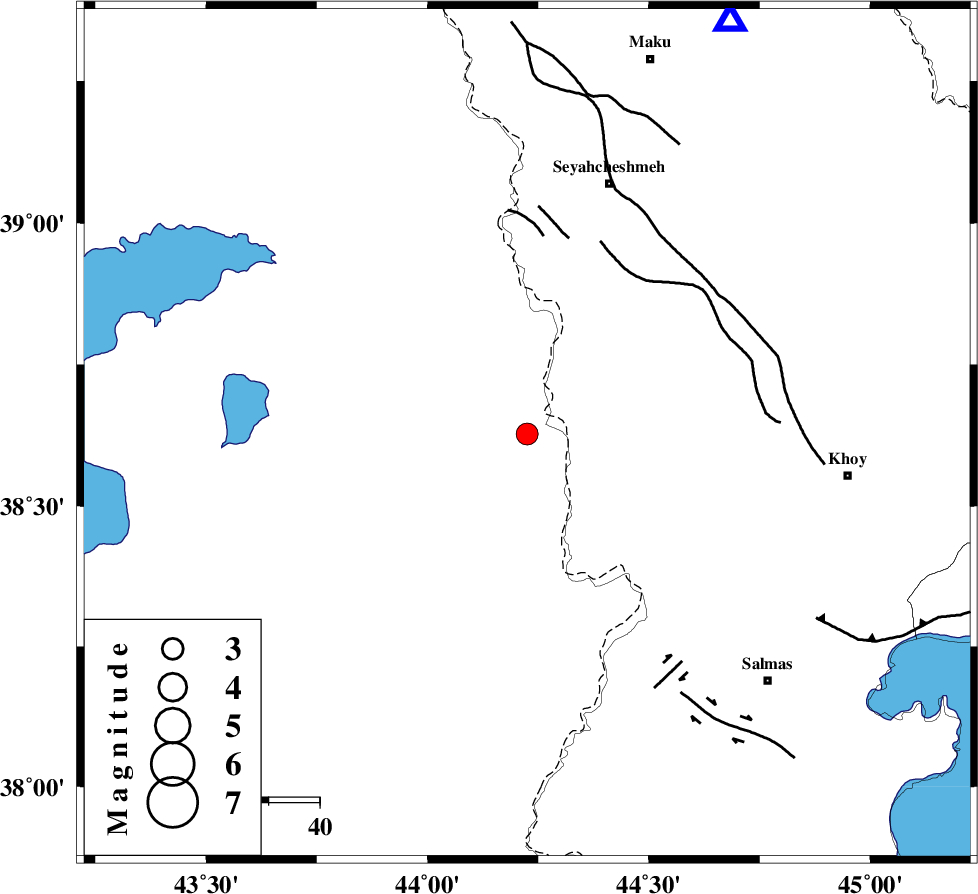

Location Lat:38.627 Lon: 44.225
Region Turkey, 52 km South-West of Seyah Cheshmah
Nearest Cities
23 km West of Baleh sur-e sofla, Azarbaijan Gharbi Province
24 km North West of Gatur, Azarbaijan Gharbi Province
35 km South West of Zarabad, Azarbaijan Gharbi Province
47 km South of Sheykh selu-e paein, Azarbaijan Gharbi Province
51 km North West of Beyk sofla, Azarbaijan Gharbi Province
Depth 14 km
Agency
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 39 km
SALMAS (Length: 20 km) , Distance to epicenter: 54 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 67 km
Number of Phases 6
RMS 0.2
Number of Stations 4
Error in Latitude >3.3 km
Error in Longitude 4.9 km
Error in Depth 9.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
132992IIEESMAKUE 724.20.242018-05-31 07:45:462018-06-02 05:44:00n
132993IIEESMAKUN 816.50.452018-05-31 07:45:462018-06-02 05:44:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESMAKUZ Pg E2018-05-31 07:45:33-0.34y9026
IIEESMAKUN Sg E2018-05-31 07:45:450.25y9026
IIEESSRSLZ Pn E2018-05-31 07:46:010.09y289158
IIEESGRMIZ Pn E2018-05-31 07:46:050.06y32085
IIEESGRMIN Sg E2018-05-31 07:46:47-0.07y32085
IIEESSNGEZ Pn E2018-05-31 07:46:250.03y481144
