Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2018-04-02 13:23:55.6 |
| Date & Time (Local) | 1397/1/13 17:53:55.6 |

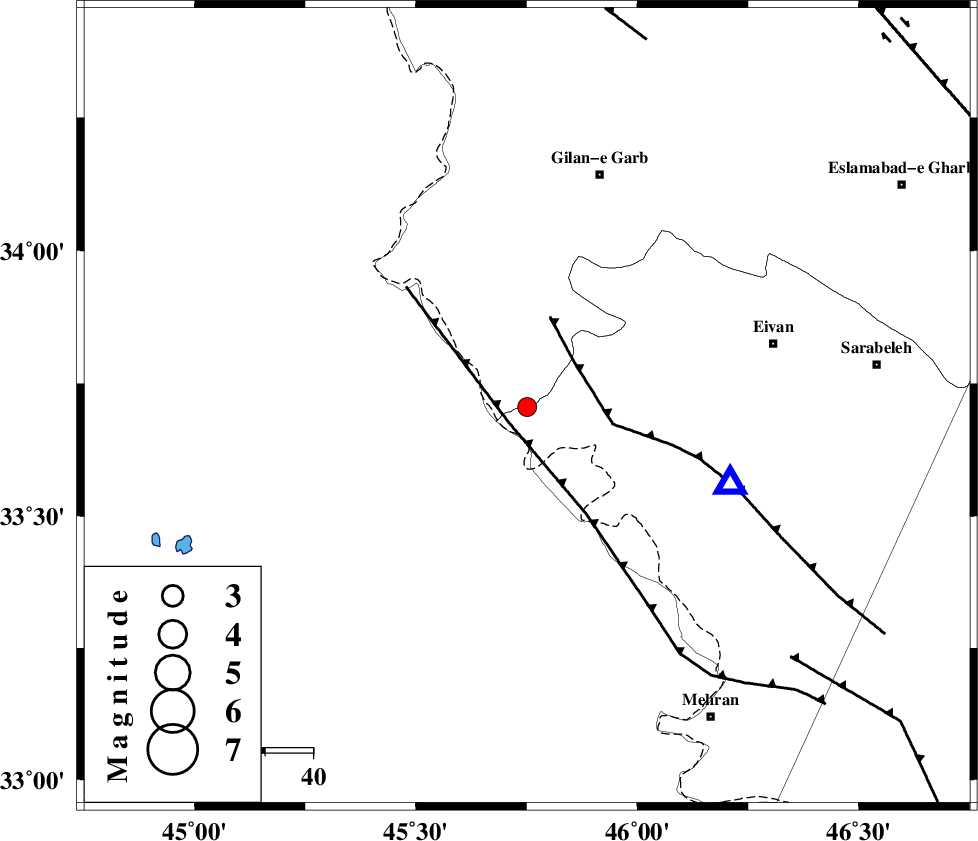

| Location | Lat:33.706 Lon: 45.751 |
| Region | Kermanshah Province, 51 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 22 km South East of Sumar, Kermanshah Province | |
| 41 km South West of Nian, Kermanshah Province | |
| 44 km South West of Teran, Ilam Province | |
| 47 km South West of Zarneh, Ilam Province | |
| 48 km North West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 5 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 14 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 76 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133196 | IIEES | ILBA | E | 787.5 | 0.3 | 2018-04-02 13:24:11 | 2018-06-03 11:40:00 | n |
| 133197 | IIEES | ILBA | N | 843 | 0.3 | 2018-04-02 13:24:14 | 2018-06-03 11:40:00 | n |
| 133198 | IIEES | KHMZ | E | 13.9 | 0.54 | 2018-04-02 13:25:38 | 2018-06-03 11:40:00 | n |
| 133199 | IIEES | KHMZ | N | 9.6 | 0.35 | 2018-04-02 13:25:39 | 2018-06-03 11:40:00 | n |
| 133200 | IIEES | ASAO | N | 9.8 | 0.22 | 2018-04-02 13:25:41 | 2018-06-03 11:40:00 | n |
| 133201 | IIEES | ASAO | E | 7.9 | 0.28 | 2018-04-02 13:25:42 | 2018-06-03 11:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-04-02 13:24:03 | -0.3 | y | 43.3 | 102 | |||
| IIEES | ILBA | N | Sg | E | 2018-04-02 13:24:09 | 0.1 | y | 43.3 | 102 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-02 13:24:29 | 0.04 | y | 213 | 43 | |||
| IIEES | SNGE | Z | Sg | E | 2018-04-02 13:24:56 | -0.04 | y | 213 | 43 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-04-02 13:24:52 | 0.26 | y | 391 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-02 13:24:53 | 0 | y | 405 | 75 | |||
