Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2018-06-11 20:31:47.6 |
| Date & Time (Local) | 1397/3/22 01:01:47.6 |

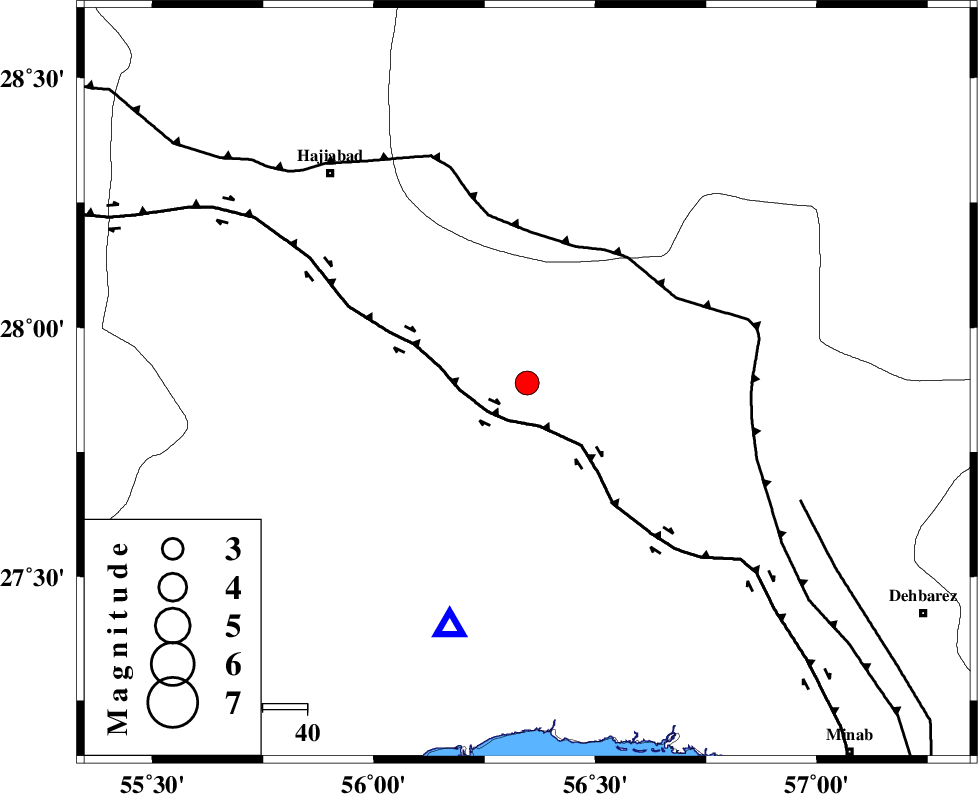

| Location | Lat:27.889 Lon: 56.346 |
| Region | Hormozgan Province, 79 km North of Bandar-e abbas |
Nearest Cities |
|
| 18 km South East of Fareqan, Hormozgan Province | |
| 52 km North East of Fin, Hormozgan Province | |
| 61 km South of Arzuieeh, Kerman Province | |
| 63 km South of Shahmaran, Kerman Province | |
| 64 km South East of Hajiabad, Hormozgan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 9 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 32 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 66 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133466 | IIEES | KRBR | E | 382.8 | 0.61 | 2018-06-11 20:32:58 | 2018-06-12 04:24:00 | n |
| 133467 | IIEES | KRBR | N | 291.2 | 0.56 | 2018-06-11 20:32:58 | 2018-06-12 04:24:00 | n |
| 133468 | IIEES | BSRN | E | 15 | 0.68 | 2018-06-11 20:34:22 | 2018-06-12 04:24:00 | n |
| 133469 | IIEES | BSRN | N | 12.5 | 0.48 | 2018-06-11 20:34:28 | 2018-06-12 04:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2018-06-11 20:31:57 | -0.04 | y | 57 | 198 | |||
| IIEES | KRBR | Z | Pn | E | 2018-06-11 20:32:24 | 0.32 | y | 235 | 10 | |||
| IIEES | KRBR | N | Sg | E | 2018-06-11 20:32:54 | 0.03 | y | 235 | 10 | |||
| IIEES | GHIR | Z | Pn | E | 2018-06-11 20:32:36 | 0.25 | y | 333 | 278 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-06-11 20:32:53 | -0.19 | y | 473 | 65 | |||
| IIEES | BSRN | Z | Pn | E | 2018-06-11 20:33:00 | 0.34 | y | 526 | 30 | |||
| IIEES | NASN | Z | Pn | E | 2018-06-11 20:33:14 | -0.7 | y | 642 | 329 | |||
| IIEES | TABS | Z | Pn | E | 2018-06-11 20:33:14 | -0.53 | y | 643 | 6 | |||
