Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2018-06-14 13:20:11.6 |
| Date & Time (Local) | 1397/3/24 17:50:11.6 |

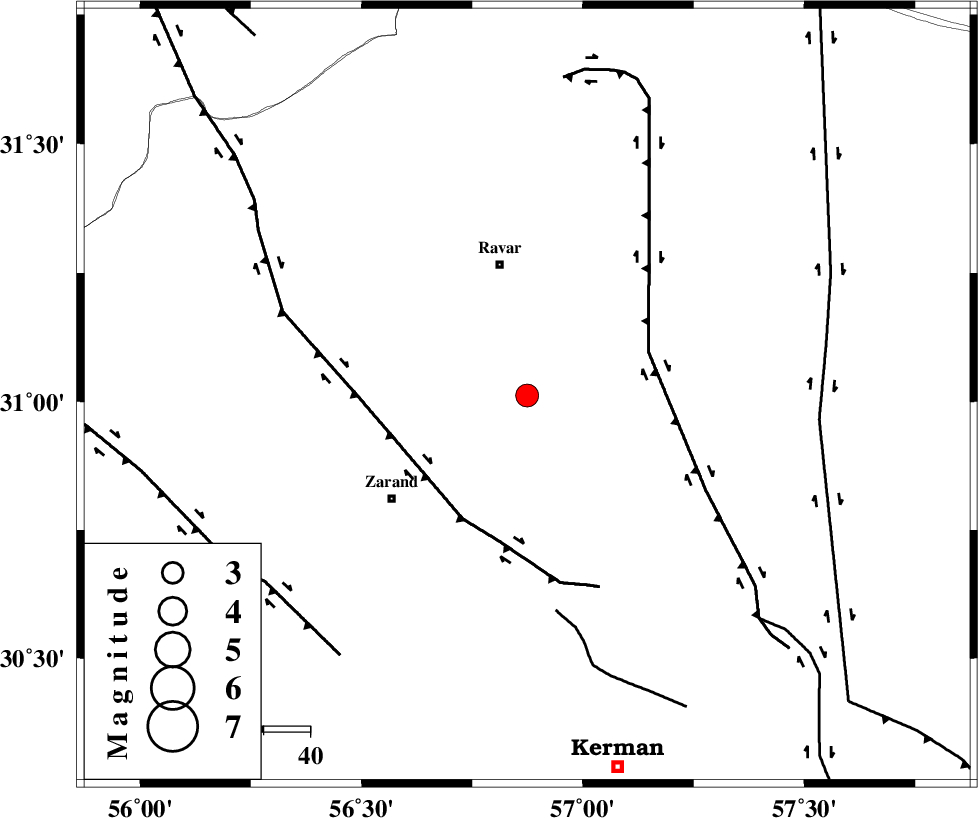

| Location | Lat:31.012 Lon: 56.874 |
| Region | Kerman Province, 29 km South of Ravar |
Nearest Cities |
|
| 20 km North of Hatkan, Kerman Province | |
| 23 km North East of Ahmadi, Kerman Province | |
| 29 km South of Ravar, Kerman Province | |
| 30 km North West of Hejdak, Kerman Province | |
| 30 km East of Dasht-e khak, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 28 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 30 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 47 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133674 | IIEES | YZKH | E | 152.9 | 0.63 | 2018-06-14 13:21:33 | 2018-06-19 08:51:00 | n |
| 133675 | IIEES | YZKH | N | 98.3 | 0.47 | 2018-06-14 13:21:34 | 2018-06-19 08:51:00 | n |
| 133676 | IIEES | TABS | N | 71.7 | 0.47 | 2018-06-14 13:21:49 | 2018-06-19 08:51:00 | n |
| 133677 | IIEES | SHRO | E | 13.9 | 0.47 | 2018-06-14 13:22:58 | 2018-06-19 08:51:00 | n |
| 133678 | IIEES | SHRO | N | 15 | 0.66 | 2018-06-14 13:23:04 | 2018-06-19 08:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-06-14 13:20:30 | -0.43 | y | 115 | 185 | |||
| IIEES | BSRN | Z | Pn | E | 2018-06-14 13:20:48 | -0.34 | y | 239 | 63 | |||
| IIEES | BSRN | N | Sg | E | 2018-06-14 13:21:19 | -0.19 | y | 239 | 63 | |||
| IIEES | YZKH | Z | Pn | E | 2018-06-14 13:20:52 | 0.33 | y | 265 | 306 | |||
| IIEES | YZKH | N | Sg | E | 2018-06-14 13:21:26 | -0.52 | y | 265 | 306 | |||
| IIEES | TABS | Z | Pn | E | 2018-06-14 13:20:55 | 0.07 | y | 293 | 4 | |||
| IIEES | BNDS | Z | Pn | E | 2018-06-14 13:21:10 | 0.4 | y | 406 | 190 | |||
| IIEES | NASN | Z | Pn | E | 2018-06-14 13:21:13 | 0.37 | y | 433 | 298 | |||
| IIEES | SHRT | Z | Pn | E | 2018-06-14 13:21:13 | 0.54 | y | 435 | 47 | |||
| IIEES | SHRO | Z | Pn | E | 2018-06-14 13:21:29 | 0.16 | y | 560 | 352 | |||
