Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2018-06-14 15:42:21.5 |
| Date & Time (Local) | 1397/3/24 20:12:21.5 |

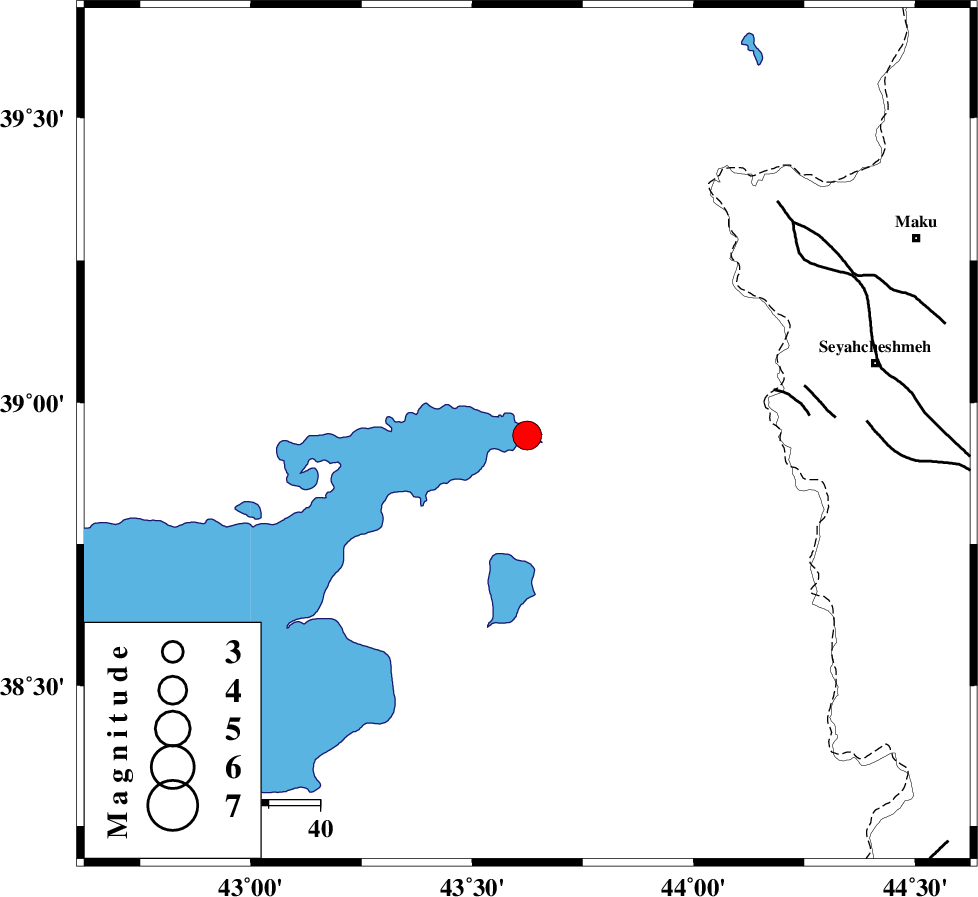

| Location | Lat:38.942 Lon: 43.624 |
| Region | Turkey, 69 km South-West of Seyah Cheshmah |
Nearest Cities |
|
| 55 km South West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 56 km South West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 67 km South West of Arab dizaj, Azarbaijan Gharbi Province | |
| 68 km South West of Zavieh, Azarbaijan Gharbi Province | |
| 69 km South West of Seyah Cheshmah, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 49 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 115 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 130 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 7.7 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133683 | IIEES | GRMI | E | 213.2 | 0.71 | 2018-06-14 15:44:12 | 2018-06-19 08:51:00 | n |
| 133684 | IIEES | GIDE | N | 105.6 | 0.62 | 2018-06-14 15:45:25 | 2018-06-19 08:51:00 | n |
| 133685 | IIEES | GIDE | E | 74 | 0.73 | 2018-06-14 15:45:25 | 2018-06-19 08:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-06-14 15:42:38 | -0.15 | y | 102 | 63 | |||
| IIEES | MAKU | N | Sg | E | 2018-06-14 15:42:51 | -0.04 | y | 102 | 63 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-14 15:43:15 | 0.33 | y | 371 | 91 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-06-14 15:43:33 | 0.05 | y | 512 | 118 | |||
| IIEES | SNGE | Z | Pn | E | 2018-06-14 15:43:36 | -0.1 | y | 540 | 141 | |||
| IIEES | GIDE | Z | Pn | E | 2018-06-14 15:43:43 | 0.04 | y | 596 | 110 | |||
| IIEES | ILBA | Z | Pn | E | 2018-06-14 15:43:47 | -0.11 | y | 634 | 158 | |||
| IIEES | ILBA | N | Sg | E | 2018-06-14 15:45:17 | -0.05 | y | 634 | 158 | |||
