Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2018-06-26 05:00:09.0 |
| Date & Time (Local) | 1397/4/5 09:30:09.0 |

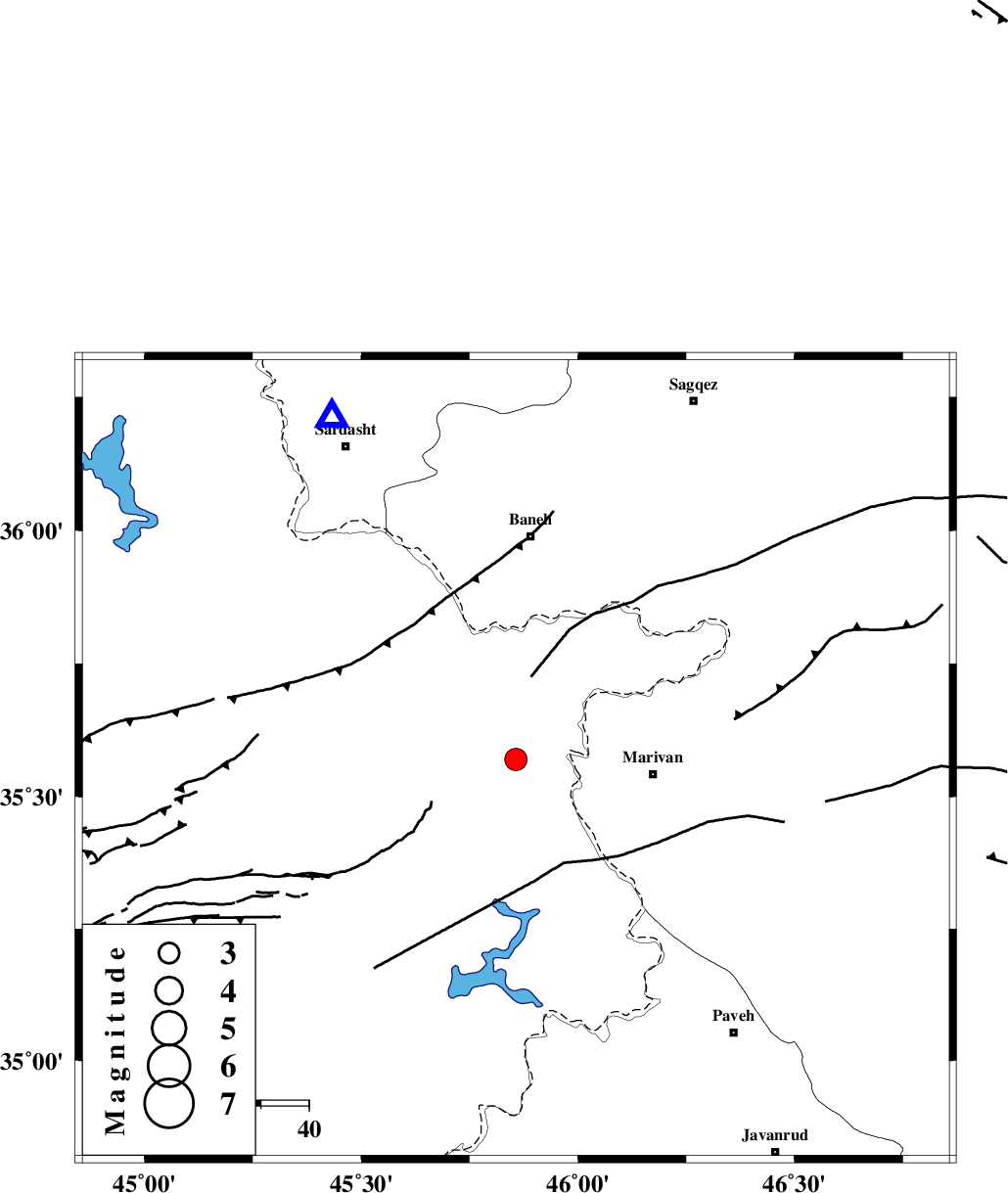

| Location | Lat:35.57 Lon: 45.857 |
| Region | Iraq, 29 km -West of Marivan |
Nearest Cities |
|
| 21 km West of Bardeh rasheh, Kurdistan Province | |
| 21 km North West of Ney, Kurdistan Province | |
| 23 km West of Savoji, Kurdistan Province | |
| 29 km North West of Marivan, Kurdistan Province | |
| 33 km North West of Kanidinar, Kurdistan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 14 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 25 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 96 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 5 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133865 | IIEES | SRSL | E | 1082.1 | 0.36 | 2018-06-26 05:00:37 | 2018-06-26 08:31:00 | n |
| 133866 | IIEES | SRSL | N | 1007.4 | 0.49 | 2018-06-26 05:00:38 | 2018-06-26 08:31:00 | n |
| 133867 | IIEES | ILBA | E | 132.9 | 0.49 | 2018-06-26 05:01:15 | 2018-06-26 08:31:00 | n |
| 133868 | IIEES | ILBA | N | 174.4 | 0.8 | 2018-06-26 05:01:16 | 2018-06-26 08:31:00 | n |
| 133869 | IIEES | GIDE | N | 49.9 | 0.65 | 2018-06-26 05:02:05 | 2018-06-26 08:31:00 | n |
| 133870 | IIEES | GIDE | E | 44.1 | 0.72 | 2018-06-26 05:02:06 | 2018-06-26 08:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SRSL | Z | Pg | E | 2018-06-26 05:00:22 | -0.4 | y | 80.9 | 332 | |||
| IIEES | SNGE | Z | Pg | E | 2018-06-26 05:00:14 | -18.5 | n | 4 | 145 | 111 | ||
| IIEES | ILBA | Z | Pn | E | 2018-06-26 05:00:43 | -0.15 | y | 218 | 171 | |||
| IIEES | ILBA | E | Sg | E | 2018-06-26 05:01:10 | -0.18 | y | 218 | 171 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-06-26 05:00:51 | -0.52 | y | 282 | 64 | |||
| IIEES | GIDE | Z | Pn | E | 2018-06-26 05:01:06 | 0.31 | y | 394 | 66 | |||
| IIEES | GIDE | E | Sg | E | 2018-06-26 05:01:59 | -0.29 | y | 394 | 66 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-26 05:01:06 | 0.65 | y | 397 | 105 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-26 05:01:06 | -0.17 | y | 402 | 26 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-06-26 05:01:10 | 0.32 | y | 428 | 117 | |||
| IIEES | MAKU | Z | Pn | E | 2018-06-26 05:01:11 | 0.78 | y | 433 | 346 | |||
