Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2018-06-26 22:35:44.9 |
| Date & Time (Local) | 1397/4/6 03:05:44.9 |

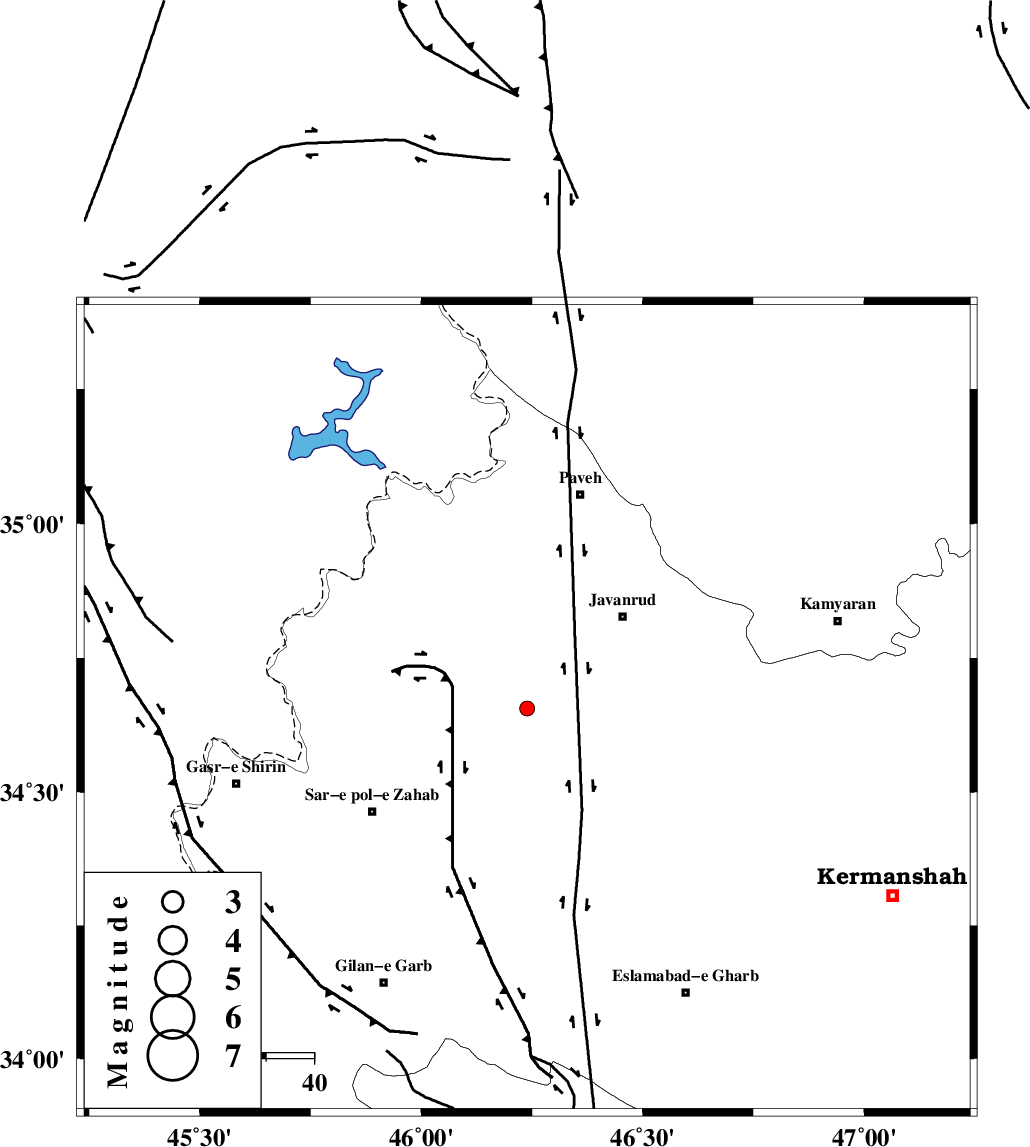

| Location | Lat:34.656 Lon: 46.239 |
| Region | Kermanshah Province, 27 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Mirabad, Kermanshah Province | |
| 10 km of Qolqoleh, Kermanshah Province | |
| 19 km North of Zavleh olia, Kermanshah Province | |
| 21 km South of Shervineh, Kermanshah Province | |
| 21 km West of Dolatabad, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 35 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133930 | IIEES | ILBA | N | 46 | 0.5 | 2018-06-26 22:36:26 | 2018-06-27 06:24:00 | n |
| 133931 | IIEES | ILBA | E | 38.7 | 0.42 | 2018-06-26 22:36:26 | 2018-06-27 06:24:00 | n |
| 133932 | IIEES | SRSL | E | 19.5 | 0.26 | 2018-06-26 22:36:48 | 2018-06-27 06:24:00 | n |
| 133933 | IIEES | SRSL | N | 20 | 0.47 | 2018-06-26 22:36:48 | 2018-06-27 06:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-06-26 22:36:04 | -0.26 | y | 112 | 64 | |||
| IIEES | SNGE | N | Sg | E | 2018-06-26 22:36:18 | -0.02 | y | 112 | 64 | |||
| IIEES | ILBA | Z | Pg | E | 2018-06-26 22:36:05 | 0.27 | y | 114 | 181 | |||
| IIEES | ILBA | N | Sg | E | 2018-06-26 22:36:19 | -0.26 | y | 114 | 181 | |||
| IIEES | SRSL | Z | Pg | E | 2018-06-26 22:36:17 | -0.06 | y | 187 | 337 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-26 22:36:37 | 0.38 | y | 348 | 91 | |||
