Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2018-06-30 06:08:07.6 |
| Date & Time (Local) | 1397/4/9 10:38:07.6 |

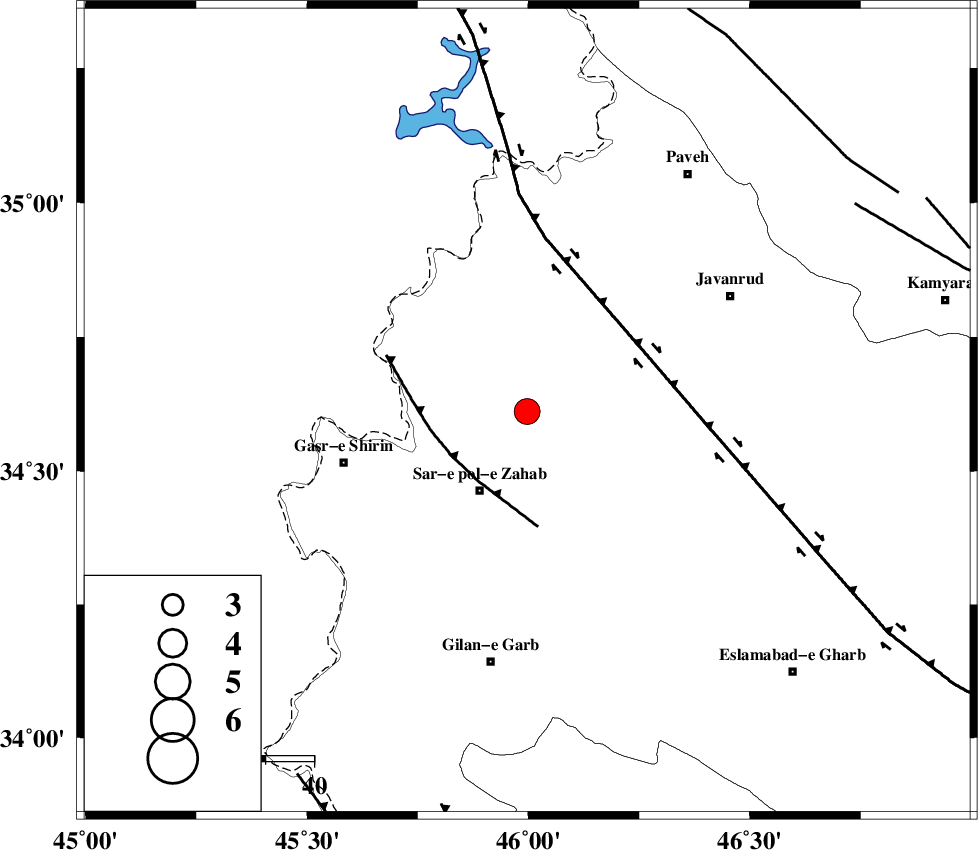

| Location | Lat:34.611 Lon: 45.997 |
| Region | Kermanshah Province, 19 km North-East of Sar-e pol-e zahab |
Nearest Cities |
|
| 8 km of Bazmirabad, Kermanshah Province | |
| 19 km North of Rijab, Kermanshah Province | |
| 19 km North East of Sar-e pol-e zahab, Kermanshah Province | |
| 20 km South West of Qolqoleh, Kermanshah Province | |
| 21 km South East of Gardehnu, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 18 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 27 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 80 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134019 | IIEES | SRSL | E | 942.4 | 0.88 | 2018-06-30 06:09:06 | 2018-06-30 07:01:00 | n |
| 134020 | IIEES | SRSL | N | 1115 | 0.41 | 2018-06-30 06:09:08 | 2018-06-30 07:01:00 | n |
| 134021 | IIEES | ASAO | N | 79.9 | 0.69 | 2018-06-30 06:10:05 | 2018-06-30 07:01:00 | n |
| 134022 | IIEES | GIDE | N | 116.5 | 0.83 | 2018-06-30 06:10:25 | 2018-06-30 07:01:00 | n |
| 134023 | IIEES | GIDE | E | 59.5 | 0.65 | 2018-06-30 06:10:28 | 2018-06-30 07:01:00 | n |
| 134024 | IIEES | GHVR | N | 36.3 | 0.48 | 2018-06-30 06:10:38 | 2018-06-30 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-06-30 06:08:13 | -16.8 | n | 4 | 134 | 66 | ||
| IIEES | SRSL | Z | Pg | E | 2018-06-30 06:08:38 | 0 | y | 185 | 344 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-06-30 06:08:57 | 0.08 | y | 334 | 46 | |||
| IIEES | ZNJK | N | Sg | E | 2018-06-30 06:09:41 | -0.01 | y | 334 | 46 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-30 06:09:01 | 0.11 | y | 370 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-06-30 06:09:02 | -0.21 | y | 378 | 104 | |||
| IIEES | GIDE | Z | Pn | E | 2018-06-30 06:09:09 | 0 | y | 437 | 53 | |||
| IIEES | THKV | Z | Pn | E | 2018-06-30 06:09:13 | 0.1 | y | 467 | 71 | |||
| IIEES | GHVR | Z | Pn | E | 2018-06-30 06:09:15 | 0.36 | y | 482 | 90 | |||
| IIEES | CHTH | Z | Pn | E | 2018-06-30 06:09:15 | -0.42 | y | 488 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-30 06:09:16 | -0.02 | y | 496 | 19 | |||
