Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2018-07-11 02:30:26.7 |
| Date & Time (Local) | 1397/4/20 07:00:26.7 |

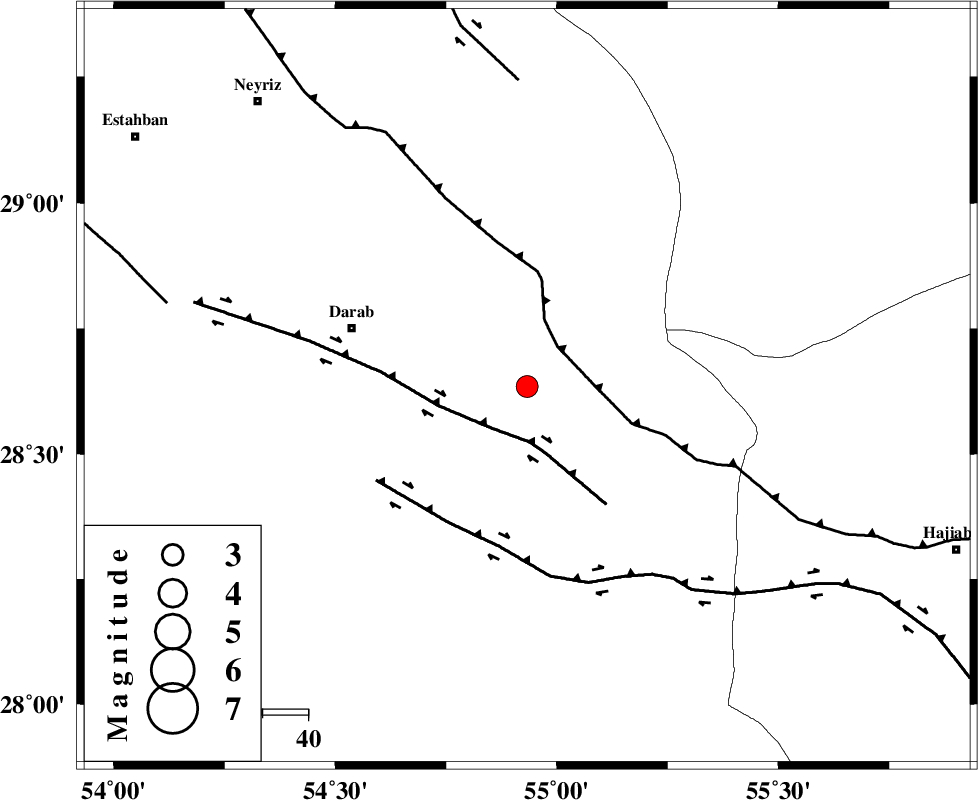

| Location | Lat:28.635 Lon: 54.933 |
| Region | Fars Province, 41 km South-East of Darab |
Nearest Cities |
|
| 24 km East of Dehkheyr, Fars Province | |
| 25 km North West of Rostaq, Fars Province | |
| 41 km North West of Tal bargah, Fars Province | |
| 41 km South East of Darab, Fars Province | |
| 41 km East of Shahnan, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 11 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 12 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 35 km | |
| Number of Phases | 6 |
| RMS | 0.4 |
| Number of Stations | 4 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134393 | IIEES | KRBR | E | 105.9 | 0.84 | 2018-07-11 02:31:38 | 2018-07-11 03:15:00 | n |
| 134394 | IIEES | KRBR | N | 110.1 | 0.52 | 2018-07-11 02:31:40 | 2018-07-11 03:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2018-07-11 02:30:56 | -0.39 | y | 183 | 138 | |||
| IIEES | BNDS | N | Sg | E | 2018-07-11 02:31:19 | 0.27 | y | 183 | 138 | |||
| IIEES | GHIR | Z | Pg | E | 2018-07-11 02:30:58 | 0 | y | 194 | 259 | |||
| IIEES | KRBR | Z | Pn | E | 2018-07-11 02:31:03 | -0.21 | y | 232 | 49 | |||
| IIEES | KRBR | N | Sg | E | 2018-07-11 02:31:32 | -0.15 | y | 232 | 49 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-11 02:31:43 | 0.79 | y | 547 | 46 | |||
