Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2018-07-18 01:30:32.6 |
| Date & Time (Local) | 1397/4/27 06:00:32.6 |

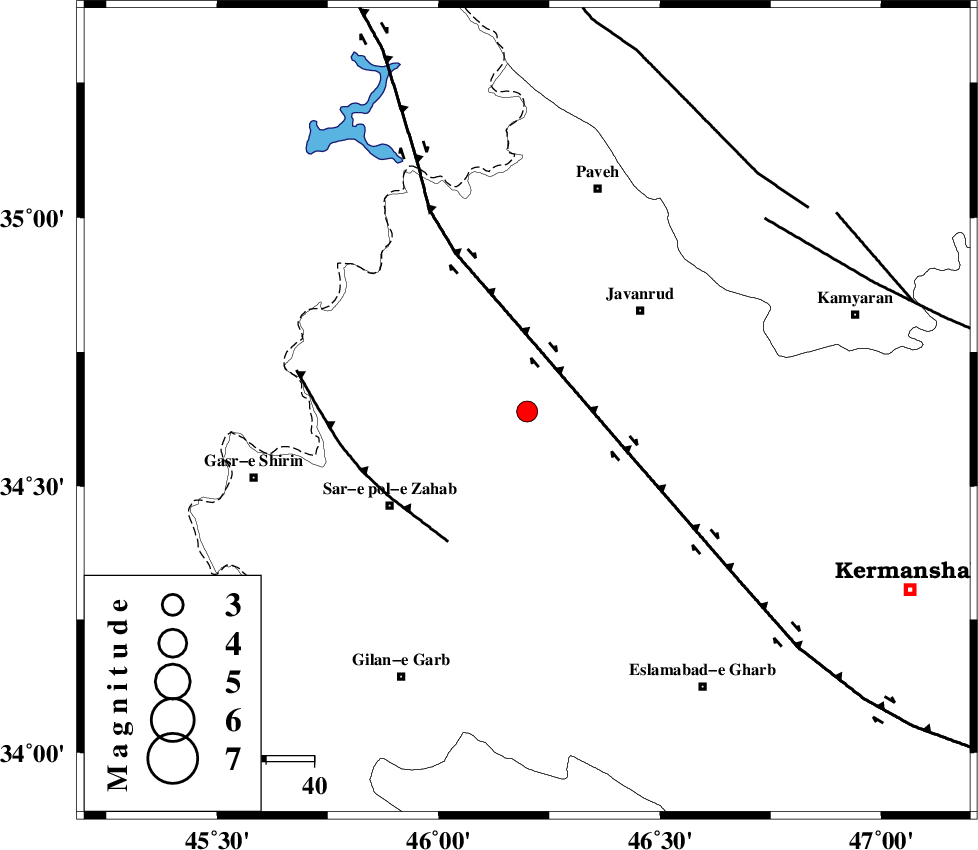

| Location | Lat:34.639 Lon: 46.2 |
| Region | Kermanshah Province, 31 km South-West of Javanrud |
Nearest Cities |
|
| 10 km of Qolqoleh, Kermanshah Province | |
| 11 km West of Mirabad, Kermanshah Province | |
| 19 km North West of Zavleh olia, Kermanshah Province | |
| 24 km South of Shervineh, Kermanshah Province | |
| 25 km West of Dolatabad, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 13 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 32 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 63 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134788 | IIEES | ILBA | E | 329.8 | 0.6 | 2018-07-18 01:31:07 | 2018-07-18 06:48:00 | n |
| 134789 | IIEES | ILBA | N | 300.5 | 0.6 | 2018-07-18 01:31:13 | 2018-07-18 06:48:00 | n |
| 134790 | IIEES | SNGE | N | 170.1 | 0.35 | 2018-07-18 01:30:54 | 2018-07-18 06:48:00 | n |
| 134791 | IIEES | SRSL | N | 86.4 | 0.44 | 2018-07-18 01:31:32 | 2018-07-18 06:48:00 | n |
| 134792 | IIEES | ASAO | E | 42.2 | 0.98 | 2018-07-18 01:32:21 | 2018-07-18 06:48:00 | n |
| 134793 | IIEES | GHVR | E | 10.5 | 0.71 | 2018-07-18 01:32:55 | 2018-07-18 06:48:00 | n |
| 134794 | IIEES | GHVR | N | 8.8 | 0.45 | 2018-07-18 01:33:05 | 2018-07-18 06:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-18 01:30:51 | -0.08 | y | 113 | 180 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-18 01:31:05 | -0.01 | y | 113 | 180 | |||
| IIEES | SNGE | Z | Pg | E | 2018-07-18 01:30:35 | -16.5 | n | 4 | 116 | 64 | ||
| IIEES | SRSL | Z | Pg | E | 2018-07-18 01:31:03 | -0.05 | y | 188 | 338 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-18 01:31:19 | -0.23 | y | 318 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-18 01:31:23 | -0.21 | y | 351 | 91 | |||
| IIEES | ASAO | N | Sg | E | 2018-07-18 01:32:11 | -0.1 | y | 351 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-18 01:31:25 | 0.62 | y | 361 | 105 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-18 01:31:38 | 0.17 | y | 463 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-18 01:31:38 | -0.38 | y | 470 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-18 01:31:41 | 0.35 | y | 487 | 18 | |||
