Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2018-07-21 18:24:13.9 |
| Date & Time (Local) | 1397/4/30 22:54:13.9 |

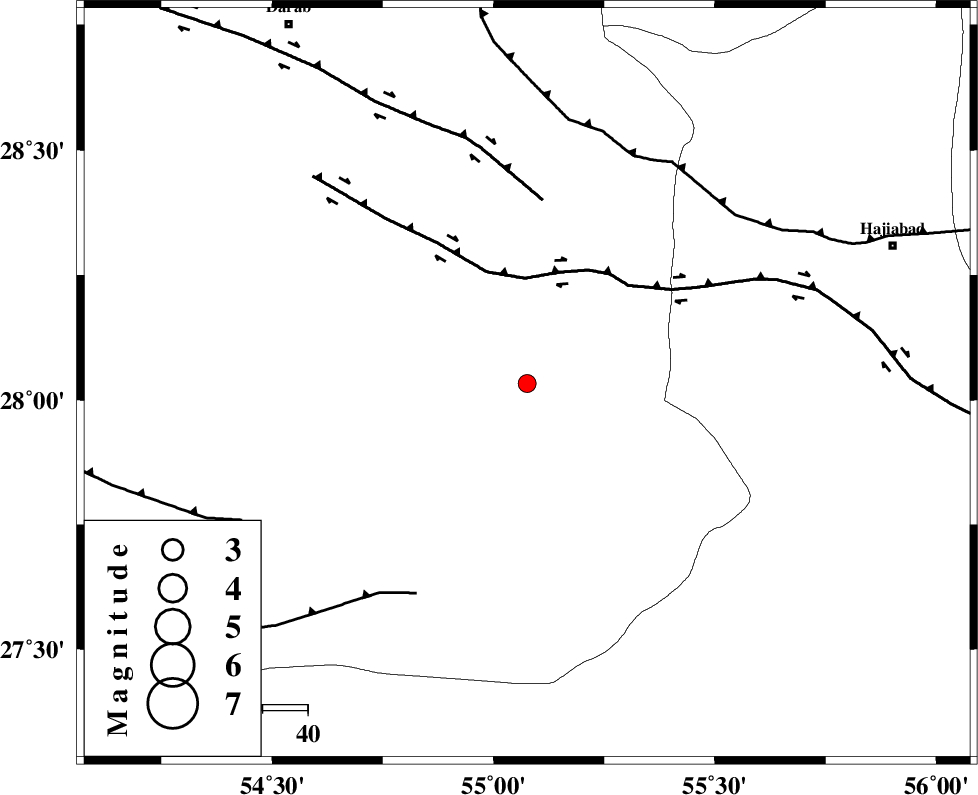

| Location | Lat:28.033 Lon: 55.076 |
| Region | Fars Province, 82 km North-East of Lar |
Nearest Cities |
|
| 22 km South West of Fadami, Fars Province | |
| 33 km South West of Doborji, Fars Province | |
| 39 km North West of Darz, Fars Province | |
| 46 km South of Rostaq, Fars Province | |
| 65 km South West of Tal bargah, Fars Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 23 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 41 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 53 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >7 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134949 | IIEES | BNDS | E | 96.4 | 0.43 | 2018-07-21 18:24:57 | 2018-07-22 04:55:00 | n |
| 134950 | IIEES | KRBR | E | 25.6 | 0.41 | 2018-07-21 18:25:38 | 2018-07-22 04:55:00 | n |
| 134951 | IIEES | KRBR | N | 24.9 | 0.54 | 2018-07-21 18:25:42 | 2018-07-22 04:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2018-07-21 18:24:38 | 0.23 | y | 129 | 123 | |||
| IIEES | BNDS | N | Sg | E | 2018-07-21 18:24:55 | -0.15 | y | 129 | 123 | |||
| IIEES | GHIR | Z | Pn | E | 2018-07-21 18:24:48 | -0.01 | y | 207 | 278 | |||
| IIEES | KRBR | Z | Pn | E | 2018-07-21 18:24:56 | -0.21 | y | 271 | 37 | |||
| IIEES | KRBR | N | S | E | 2018-07-21 18:25:27 | 0.13 | y | 271 | 37 | |||
