Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2018-07-22 16:48:49.4 |
| Date & Time (Local) | 1397/4/31 21:18:49.4 |

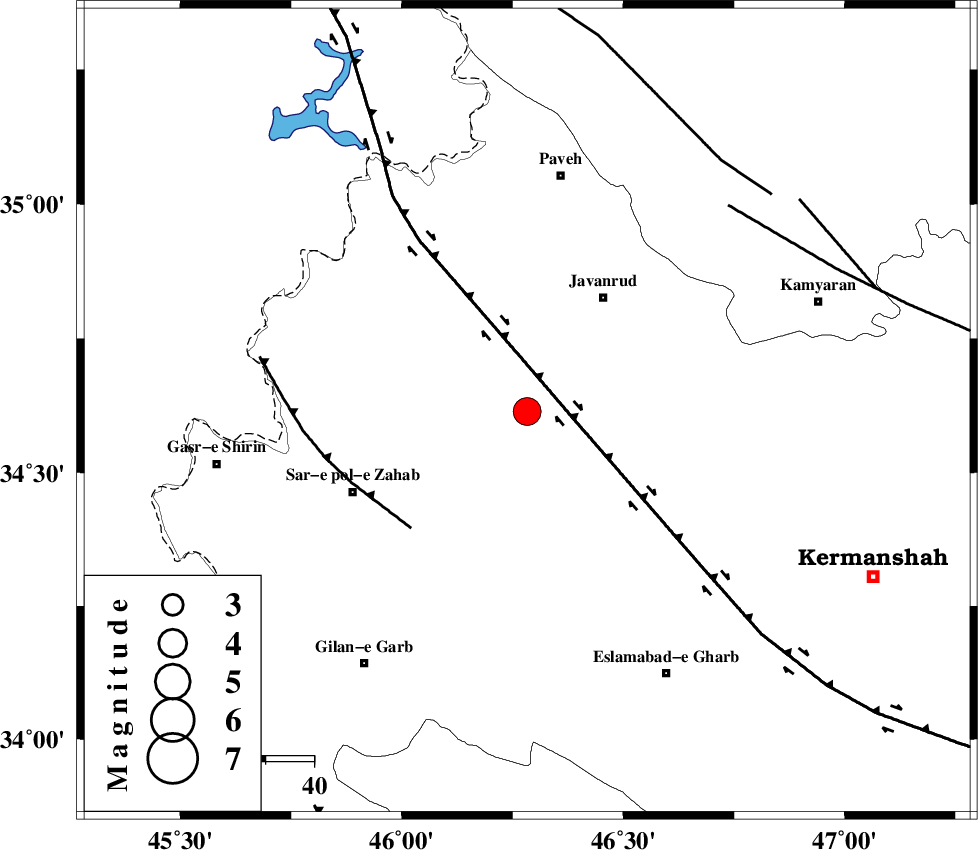

| Location | Lat:34.614 Lon: 46.283 |
| Region | Kermanshah Province, 28 km South-West of Javanrud |
Nearest Cities |
|
| 8 km of Mirabad, Kermanshah Province | |
| 13 km North of Zavleh olia, Kermanshah Province | |
| 16 km South East of Qolqoleh, Kermanshah Province | |
| 19 km West of Dolatabad, Kermanshah Province | |
| 22 km South West of Sarukhan, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 12 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 34 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 60 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134976 | IIEES | ILBA | E | 3921.2 | 0.68 | 2018-07-22 16:49:23 | 2018-07-23 04:19:00 | n |
| 134977 | IIEES | SNGE | E | 2890.4 | 0.53 | 2018-07-22 16:49:26 | 2018-07-23 04:19:00 | n |
| 134978 | IIEES | SNGE | N | 3179.8 | 0.62 | 2018-07-22 16:49:26 | 2018-07-23 04:19:00 | n |
| 134979 | IIEES | GIDE | E | 174.8 | 0.76 | 2018-07-22 16:51:03 | 2018-07-23 04:19:00 | n |
| 134980 | IIEES | GIDE | N | 188.6 | 0.54 | 2018-07-22 16:51:17 | 2018-07-23 04:19:00 | n |
| 134981 | IIEES | GHVR | E | 165 | 0.76 | 2018-07-22 16:51:09 | 2018-07-23 04:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-22 16:49:07 | -0.45 | y | 110 | 184 | |||
| IIEES | ILBA | E | Sg | E | 2018-07-22 16:49:21 | 0.17 | y | 110 | 184 | |||
| IIEES | SNGE | Z | Pg | E | 2018-07-22 16:49:07 | -0.4 | y | 111 | 61 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-22 16:49:21 | -0.11 | y | 111 | 61 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-22 16:49:36 | -0.1 | y | 315 | 43 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-22 16:49:39 | -0.06 | y | 343 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-22 16:49:41 | 0.31 | y | 353 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2018-07-22 16:49:49 | 0.2 | y | 416 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-07-22 16:49:51 | -0.56 | y | 442 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-22 16:49:53 | 0.1 | y | 456 | 90 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-22 16:49:54 | -0.55 | y | 463 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-22 16:49:59 | 1.41 | y | 487 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-22 16:50:03 | 0.55 | y | 531 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2018-07-22 16:50:04 | -0.67 | y | 545 | 345 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-22 16:50:17 | 0.52 | y | 637 | 107 | |||
| IIEES | AHRM | Z | Pn | E | 2018-07-22 16:50:35 | 0.27 | y | 795 | 142 | |||
