Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2018-07-24 17:10:39.7 |
| Date & Time (Local) | 1397/5/2 21:40:39.7 |

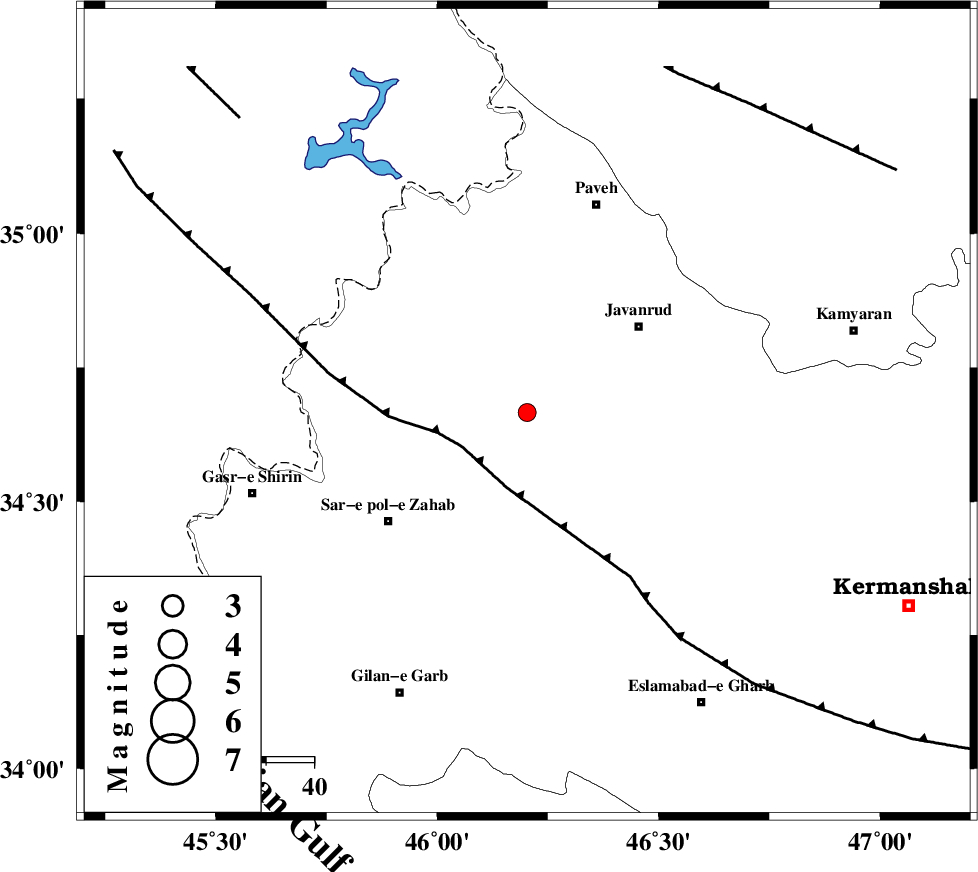

| Location | Lat:34.667 Lon: 46.203 |
| Region | Kermanshah Province, 29 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Qolqoleh, Kermanshah Province | |
| 10 km West of Mirabad, Kermanshah Province | |
| 21 km South of Shervineh, Kermanshah Province | |
| 21 km North West of Zavleh olia, Kermanshah Province | |
| 25 km West of Dolatabad, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 10 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 34 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 61 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135147 | IIEES | SNGE | E | 114.8 | 0.45 | 2018-07-24 17:11:16 | 2018-07-25 09:14:00 | n |
| 135148 | IIEES | SNGE | N | 84.9 | 0.42 | 2018-07-24 17:11:16 | 2018-07-25 09:14:00 | n |
| 135149 | IIEES | ILBA | N | 149.4 | 0.46 | 2018-07-24 17:11:20 | 2018-07-25 09:14:00 | n |
| 135150 | IIEES | ILBA | E | 232.6 | 0.5 | 2018-07-24 17:11:21 | 2018-07-25 09:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-07-24 17:10:58 | -0.38 | y | 115 | 65 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-24 17:11:13 | 0.15 | y | 115 | 65 | |||
| IIEES | ILBA | Z | Pg | E | 2018-07-24 17:10:59 | 0.16 | y | 116 | 180 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-24 17:11:13 | -0.08 | y | 116 | 180 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-24 17:11:26 | 0.07 | y | 316 | 45 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-24 17:11:31 | 0.31 | y | 351 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-24 17:11:32 | -0.22 | y | 362 | 105 | |||
