Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2018-07-28 01:58:37.7 |
| Date & Time (Local) | 1397/5/6 06:28:37.7 |

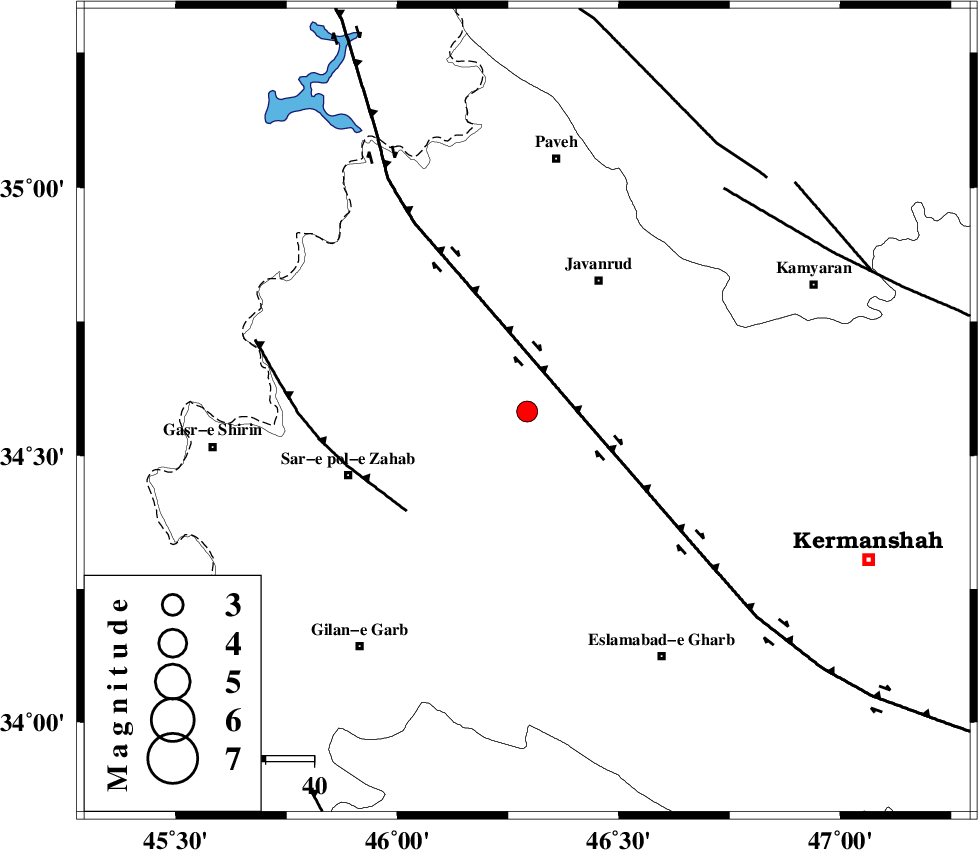

| Location | Lat:34.582 Lon: 46.293 |
| Region | Kermanshah Province, 31 km South-West of Javanrud |
Nearest Cities |
|
| 9 km North of Zavleh olia, Kermanshah Province | |
| 12 km South of Mirabad, Kermanshah Province | |
| 20 km South East of Qolqoleh, Kermanshah Province | |
| 20 km South West of Dolatabad, Kermanshah Province | |
| 24 km South West of Sarukhan, Kermanshah Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 32 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 62 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135194 | IIEES | ILBA | E | 513.8 | 0.52 | 2018-07-28 01:59:12 | 2018-07-28 05:07:00 | n |
| 135195 | IIEES | ILBA | N | 428.8 | 0.47 | 2018-07-28 01:59:18 | 2018-07-28 05:07:00 | n |
| 135196 | IIEES | SNGE | N | 255.4 | 0.37 | 2018-07-28 01:59:14 | 2018-07-28 05:07:00 | n |
| 135197 | IIEES | KHMZ | E | 19.6 | 0.38 | 2018-07-28 02:00:26 | 2018-07-28 05:07:00 | n |
| 135198 | IIEES | GIDE | E | 14.2 | 0.45 | 2018-07-28 02:00:53 | 2018-07-28 05:07:00 | n |
| 135199 | IIEES | GIDE | N | 24 | 0.65 | 2018-07-28 02:00:56 | 2018-07-28 05:07:00 | n |
| 135200 | IIEES | GHVR | E | 17.1 | 0.59 | 2018-07-28 02:00:59 | 2018-07-28 05:07:00 | n |
| 135201 | IIEES | GHVR | N | 13.3 | 0.66 | 2018-07-28 02:01:06 | 2018-07-28 05:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-28 01:58:56 | 0.14 | y | 107 | 184 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-28 01:59:09 | -0.18 | y | 107 | 184 | |||
| IIEES | SNGE | Z | Pg | E | 2018-07-28 01:58:57 | 0.05 | y | 112 | 59 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-28 01:59:11 | -0.02 | y | 112 | 59 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-28 01:59:25 | -0.5 | y | 317 | 42 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-28 01:59:29 | 0.08 | y | 343 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-28 01:59:30 | 0.21 | y | 351 | 104 | |||
| IIEES | GIDE | Z | Pn | E | 2018-07-28 01:59:38 | -0.02 | y | 418 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-07-28 01:59:41 | 0.07 | y | 443 | 69 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-28 01:59:43 | 0.54 | y | 455 | 90 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-28 01:59:43 | -0.76 | y | 464 | 70 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-28 01:59:47 | 0.46 | y | 490 | 16 | |||
