Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2018-07-28 12:02:07.4 |
| Date & Time (Local) | 1397/5/6 16:32:07.4 |

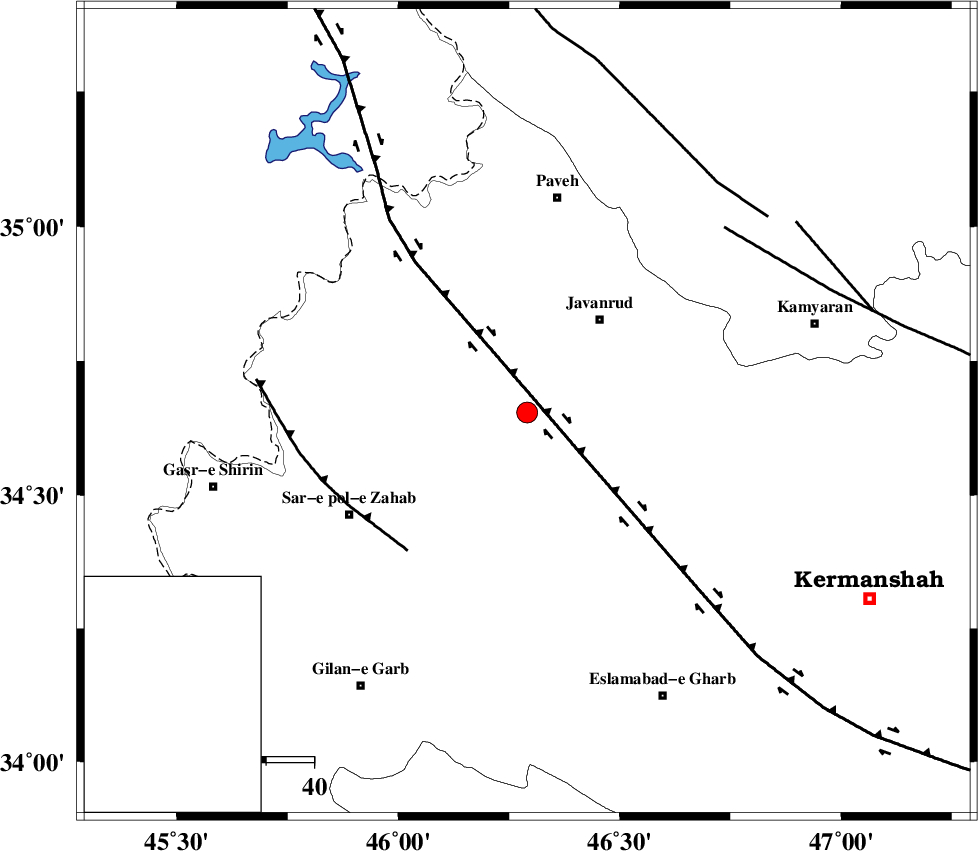

| Location | Lat:34.654 Lon: 46.291 |
| Region | Kermanshah Province, 24 km South-West of Javanrud |
Nearest Cities |
|
| 4 km of Mirabad, Kermanshah Province | |
| 14 km East of Qolqoleh, Kermanshah Province | |
| 17 km West of Dolatabad, Kermanshah Province | |
| 17 km North of Zavleh olia, Kermanshah Province | |
| 19 km South West of Sarukhan, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 12 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 38 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 56 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 8.3 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135234 | IIEES | SNGE | N | 211.8 | 0.48 | 2018-07-28 12:02:44 | 2018-07-29 03:52:00 | n |
| 135235 | IIEES | ILBA | E | 318.6 | 0.49 | 2018-07-28 12:02:51 | 2018-07-29 03:52:00 | n |
| 135236 | IIEES | ILBA | N | 317.5 | 0.41 | 2018-07-28 12:02:51 | 2018-07-29 03:52:00 | n |
| 135237 | IIEES | GHVR | N | 16.7 | 0.58 | 2018-07-28 12:04:30 | 2018-07-29 03:52:00 | n |
| 135238 | IIEES | GHVR | E | 29.4 | 0.86 | 2018-07-28 12:04:33 | 2018-07-29 03:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-07-28 12:02:26 | -0.07 | y | 108 | 63 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-28 12:02:39 | -0.22 | y | 108 | 63 | |||
| IIEES | ILBA | Z | Pg | E | 2018-07-28 12:02:26 | -0.37 | y | 114 | 184 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-28 12:02:41 | 0.09 | y | 114 | 184 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-28 12:02:54 | 0.08 | y | 312 | 43 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-28 12:02:58 | -0.2 | y | 343 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-28 12:03:00 | 0.22 | y | 353 | 106 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-28 12:03:13 | 0.67 | y | 455 | 91 | |||
