Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2018-07-28 20:50:59.4 |
| Date & Time (Local) | 1397/5/7 01:20:59.4 |

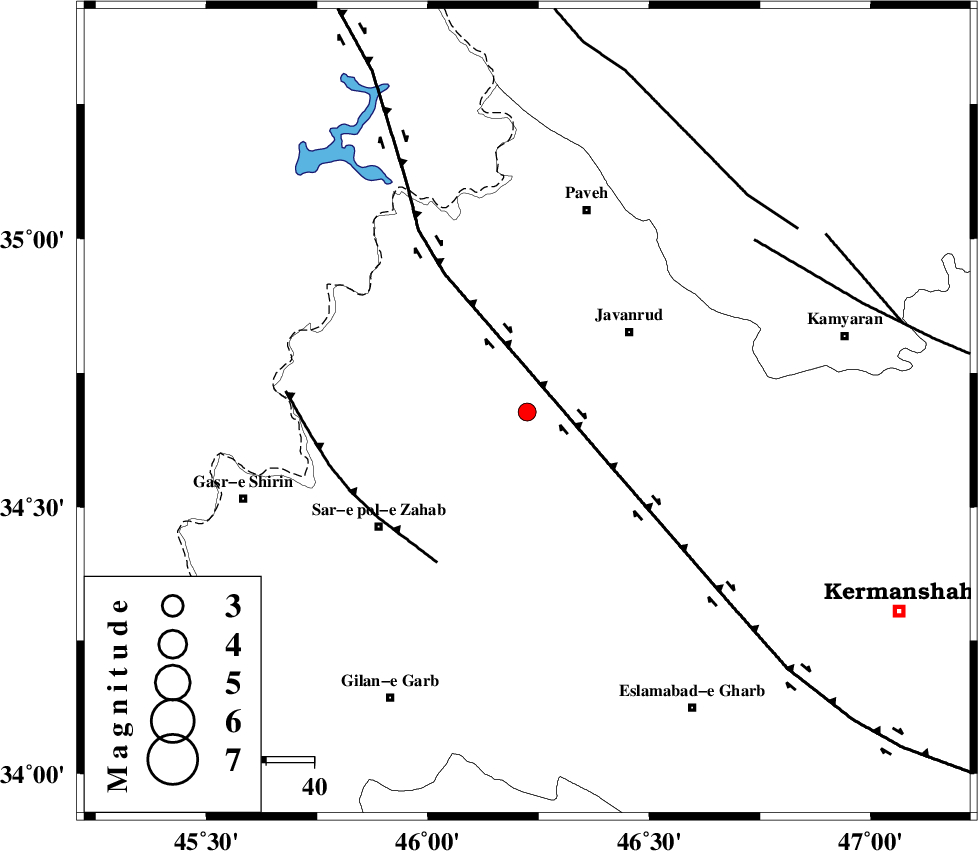

| Location | Lat:34.677 Lon: 46.224 |
| Region | Kermanshah Province, 27 km South-West of Javanrud |
Nearest Cities |
|
| 8 km of Qolqoleh, Kermanshah Province | |
| 8 km of Mirabad, Kermanshah Province | |
| 19 km South of Shervineh, Kermanshah Province | |
| 22 km North of Zavleh olia, Kermanshah Province | |
| 23 km West of Dolatabad, Kermanshah Province | |
| Depth | 23 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 8 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 36 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 8 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135269 | IIEES | SNGE | N | 130.1 | 0.58 | 2018-07-28 20:51:35 | 2018-07-29 05:02:00 | n |
| 135270 | IIEES | SNGE | E | 109.3 | 0.55 | 2018-07-28 20:51:35 | 2018-07-29 05:02:00 | n |
| 135271 | IIEES | ILBA | E | 149 | 0.33 | 2018-07-28 20:51:40 | 2018-07-29 05:02:00 | n |
| 135272 | IIEES | ILBA | N | 125.6 | 0.37 | 2018-07-28 20:51:41 | 2018-07-29 05:02:00 | n |
| 135273 | IIEES | ASAO | E | 7.9 | 0.5 | 2018-07-28 20:52:54 | 2018-07-29 05:02:00 | n |
| 135274 | IIEES | ASAO | N | 6.1 | 0.59 | 2018-07-28 20:52:58 | 2018-07-29 05:02:00 | n |
| 135275 | IIEES | KHMZ | N | 8.5 | 0.62 | 2018-07-28 20:52:57 | 2018-07-29 05:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-07-28 20:51:18 | -0.02 | y | 113 | 65 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-28 20:51:32 | 0.01 | y | 113 | 65 | |||
| IIEES | ILBA | Z | Pg | E | 2018-07-28 20:51:18 | 0.01 | y | 117 | 181 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-28 20:51:49 | 0.05 | y | 349 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-28 20:51:51 | -0.05 | y | 360 | 106 | |||
