Event Specification
Magnitude |
2.2 |
| Date & Time (UTC) | 2018-07-26 00:42:39.8 |
| Date & Time (Local) | 1397/5/4 05:12:39.8 |

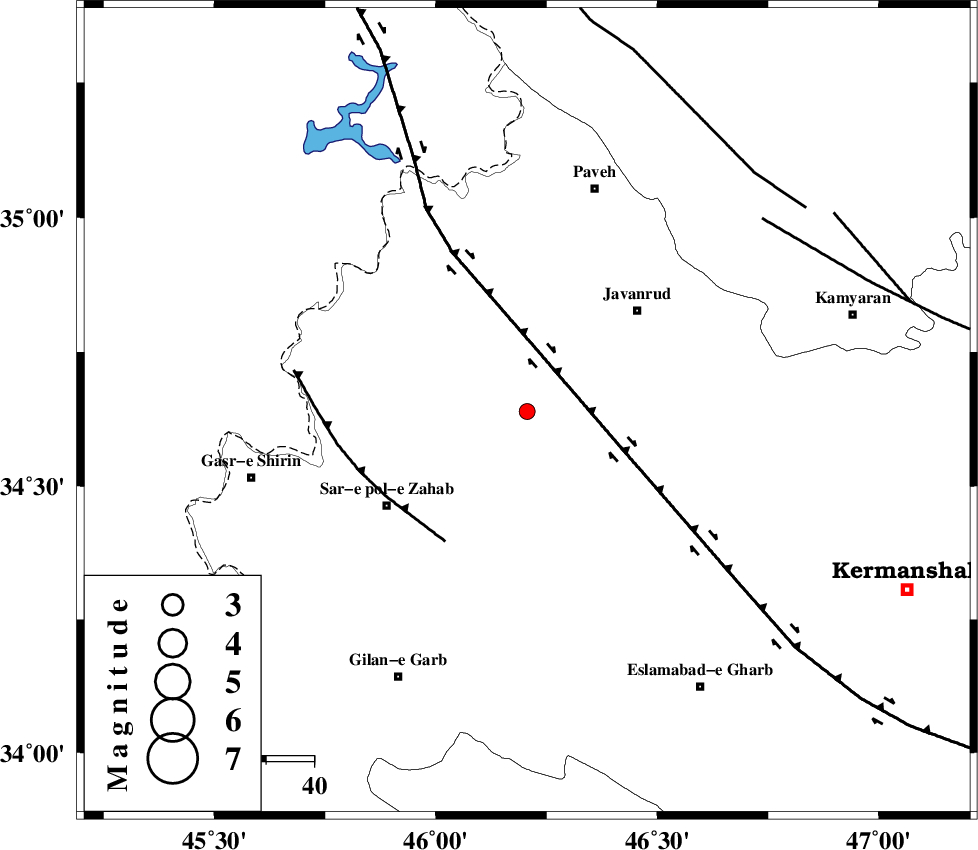

| Location | Lat:34.639 Lon: 46.206 |
| Region | Kermanshah Province, 31 km South-West of Javanrud |
Nearest Cities |
|
| 10 km of Qolqoleh, Kermanshah Province | |
| 11 km West of Mirabad, Kermanshah Province | |
| 19 km North West of Zavleh olia, Kermanshah Province | |
| 24 km South of Shervineh, Kermanshah Province | |
| 25 km West of Dolatabad, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 13 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 32 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 63 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135287 | IIEES | ILBA | E | 77.1 | 0.61 | 2018-07-26 00:43:14 | 2018-07-29 08:19:00 | n |
| 135288 | IIEES | ILBA | N | 45.3 | 0.31 | 2018-07-26 00:43:19 | 2018-07-29 08:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-26 00:42:58 | -0.02 | y | 112 | 180 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-26 00:43:12 | -0.02 | y | 112 | 180 | |||
| IIEES | SNGE | Z | Pg | E | 2018-07-26 00:42:59 | -0.08 | y | 116 | 64 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-26 00:43:13 | -0.04 | y | 116 | 64 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-26 00:43:31 | 0.17 | y | 351 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-26 00:43:32 | 0.01 | y | 360 | 105 | |||
