Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2018-07-26 02:18:49.1 |
| Date & Time (Local) | 1397/5/4 06:48:49.1 |

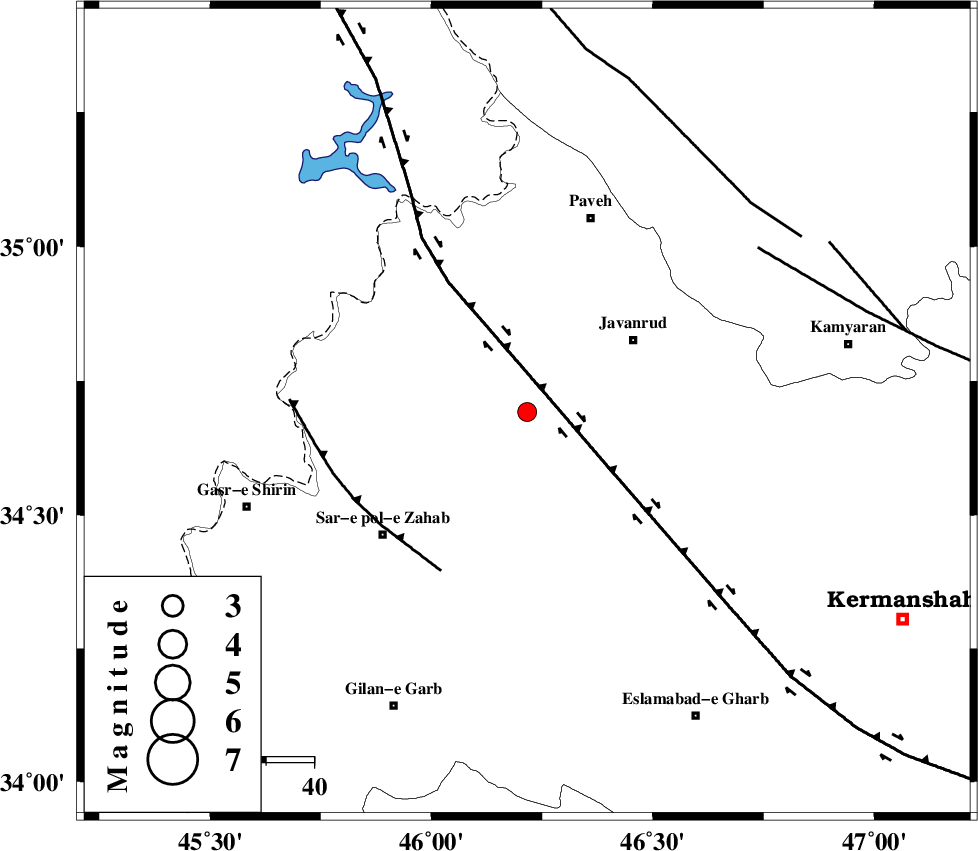

| Location | Lat:34.692 Lon: 46.216 |
| Region | Kermanshah Province, 26 km South-West of Javanrud |
Nearest Cities |
|
| 6 km of Qolqoleh, Kermanshah Province | |
| 9 km North of Mirabad, Kermanshah Province | |
| 18 km South of Shervineh, Kermanshah Province | |
| 23 km West of Sarukhan, Kermanshah Province | |
| 23 km North West of Dolatabad, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 7 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 37 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 58 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135294 | IIEES | SNGE | E | 163.6 | 0.33 | 2018-07-26 02:19:25 | 2018-07-29 08:19:00 | n |
| 135295 | IIEES | SNGE | N | 178.8 | 0.49 | 2018-07-26 02:19:26 | 2018-07-29 08:19:00 | n |
| 135296 | IIEES | ILBA | N | 236.1 | 0.28 | 2018-07-26 02:19:24 | 2018-07-29 08:19:00 | n |
| 135297 | IIEES | ILBA | E | 249.2 | 0.53 | 2018-07-26 02:19:30 | 2018-07-29 08:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-07-26 02:19:08 | -0.12 | y | 112 | 66 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-26 02:19:22 | -0.1 | y | 112 | 66 | |||
| IIEES | ILBA | Z | Pg | E | 2018-07-26 02:19:08 | -0.03 | y | 118 | 180 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-26 02:19:23 | -0.09 | y | 118 | 180 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-26 02:19:35 | -0.03 | y | 313 | 45 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-26 02:19:40 | 0.17 | y | 350 | 92 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-26 02:19:42 | 0.25 | y | 361 | 106 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-26 02:19:54 | 0.02 | y | 462 | 91 | |||
