Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2018-07-30 20:09:54.2 |
| Date & Time (Local) | 1397/5/9 00:39:54.2 |

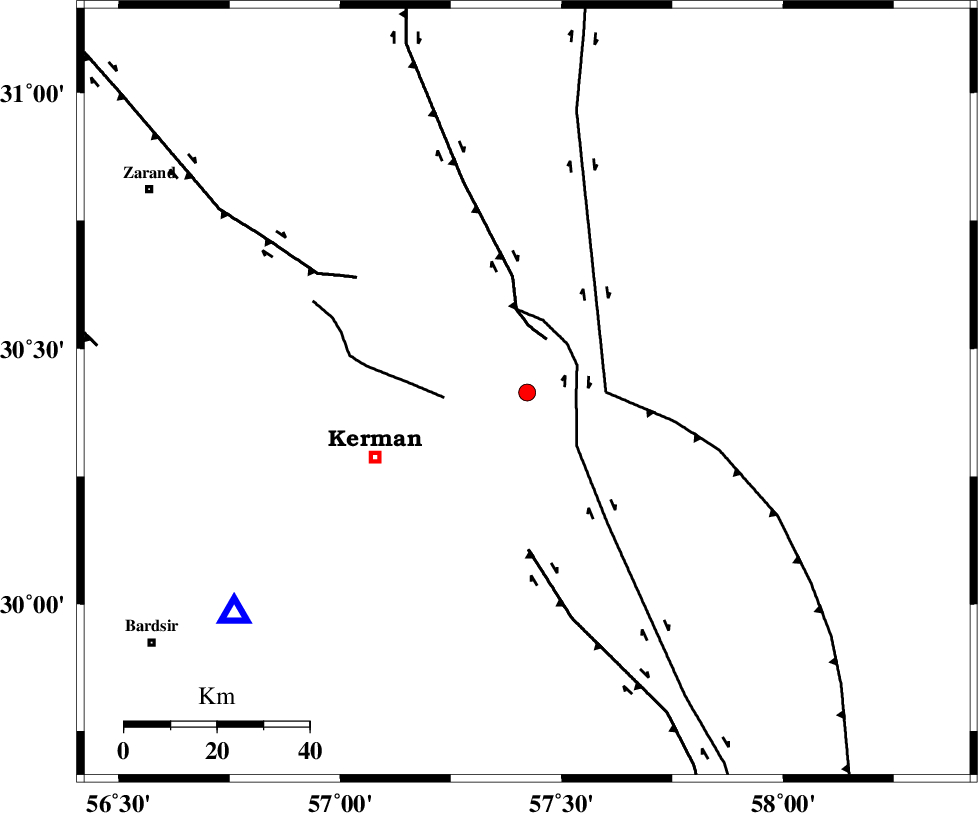

| Location | Lat:30.414 Lon: 57.422 |
| Region | Kerman Province, 36 km North-East of Kerman |
Nearest Cities |
|
| 17 km East of Dehlulu, Kerman Province | |
| 27 km North West of Shahdad, Kerman Province | |
| 28 km North West of Sirch, Kerman Province | |
| 31 km North East of Sarasiyab-e ferangi, Kerman Province | |
| 36 km North East of Kerman, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 11 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 12 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 17 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135393 | IIEES | KRBR | N | 165 | 0.18 | 2018-07-30 20:10:18 | 2018-07-31 06:43:00 | n |
| 135394 | IIEES | KRBR | E | 192.7 | 0.07 | 2018-07-30 20:10:18 | 2018-07-31 06:43:00 | n |
| 135395 | IIEES | BSRN | N | 16.9 | 0.18 | 2018-07-30 20:11:03 | 2018-07-31 06:43:00 | n |
| 135396 | IIEES | BSRN | E | 20.4 | 0.33 | 2018-07-30 20:11:05 | 2018-07-31 06:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-07-30 20:10:08 | 0.22 | y | 79.7 | 233 | |||
| IIEES | KRBR | N | Sg | E | 2018-07-30 20:10:18 | -0.16 | y | 79.7 | 233 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-30 20:10:31 | 0.22 | y | 237 | 43 | |||
| IIEES | BSRN | N | Sg | E | 2018-07-30 20:11:01 | -0.09 | y | 237 | 43 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-07-30 20:10:43 | -0.11 | y | 335 | 105 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-30 20:10:46 | -0.11 | y | 360 | 356 | |||
