Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2018-07-27 05:23:43.0 |
| Date & Time (Local) | 1397/5/5 09:53:43.0 |

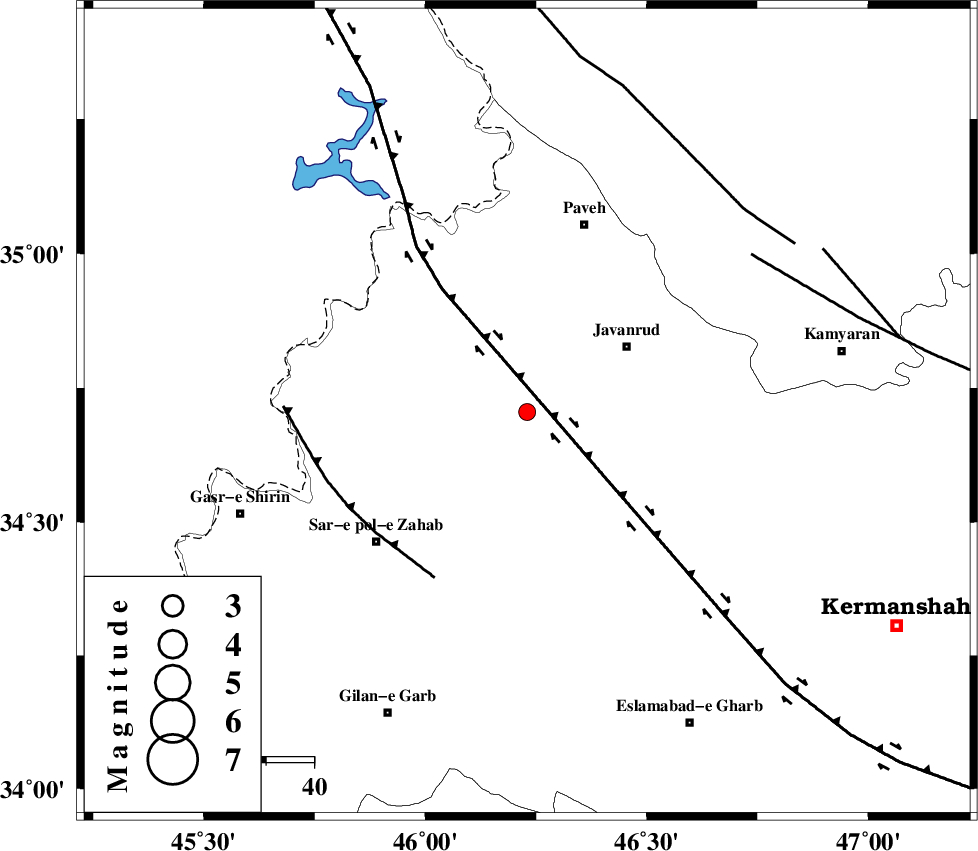

| Location | Lat:34.705 Lon: 46.23 |
| Region | Kermanshah Province, 25 km South-West of Javanrud |
Nearest Cities |
|
| 6 km of Qolqoleh, Kermanshah Province | |
| 8 km North of Mirabad, Kermanshah Province | |
| 16 km South of Shervineh, Kermanshah Province | |
| 21 km West of Sarukhan, Kermanshah Province | |
| 22 km North West of Dolatabad, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 5 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 39 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 57 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 7.8 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135445 | IIEES | ILBA | N | 94.1 | 0.38 | 2018-07-27 05:24:25 | 2018-08-01 06:47:00 | n |
| 135446 | IIEES | ILBA | E | 95.2 | 0.51 | 2018-07-27 05:24:25 | 2018-08-01 06:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-07-27 05:24:01 | 0.12 | y | 111 | 67 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-27 05:24:15 | -0.14 | y | 111 | 67 | |||
| IIEES | ILBA | Z | Pg | E | 2018-07-27 05:24:02 | -0.22 | y | 120 | 181 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-27 05:24:17 | 0.11 | y | 120 | 181 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-27 05:24:34 | 0.15 | y | 348 | 92 | |||
