Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2018-08-31 11:50:24.1 |
| Date & Time (Local) | 1397/6/9 16:20:24.1 |

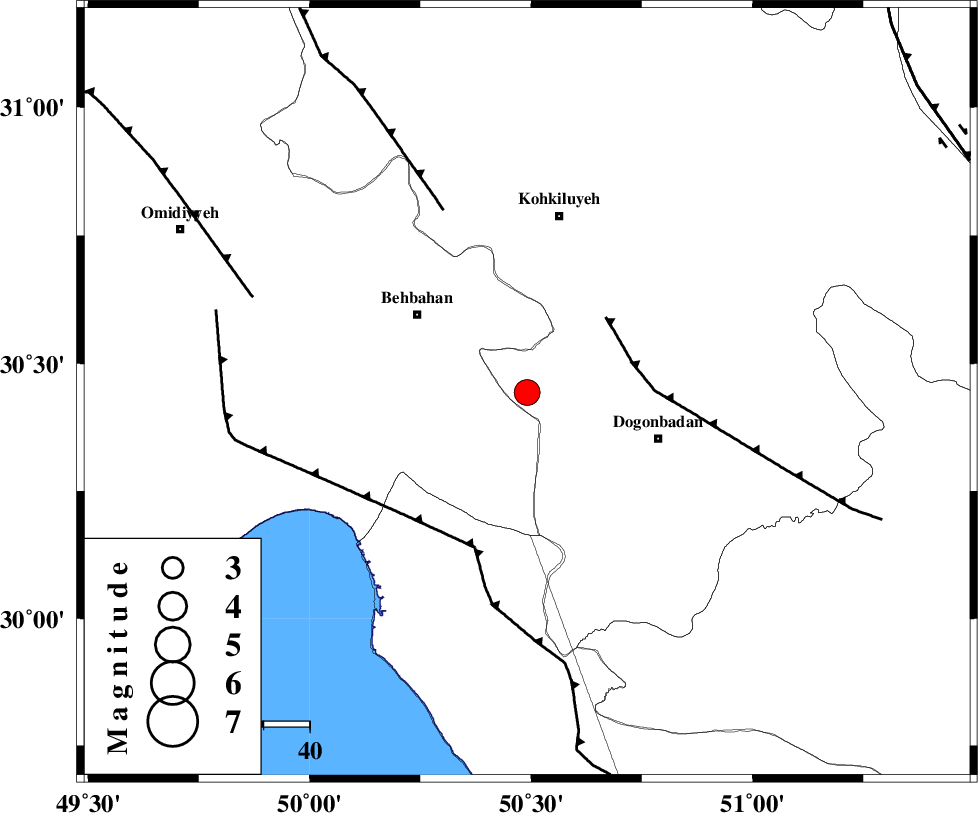

| Location | Lat:30.443 Lon: 50.491 |
| Region | Kohkiluieh va boyerahmad Province, 30 km -West of Dogonbadan |
Nearest Cities |
|
| 28 km South East of Mansuriyeh, Khoozestan Province | |
| 29 km South East of Behbahan, Khoozestan Province | |
| 29 km North East of Sardasht, Khoozestan Province | |
| 30 km North West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 39 km South of Dehdasht, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 24 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 36 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 36 km | |
| Number of Phases | 11 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136243 | IIEES | AHRM | E | 569.6 | 0.24 | 2018-08-31 11:51:21 | 2018-09-01 05:38:00 | n |
| 136244 | IIEES | GHVR | N | 69.3 | 0.28 | 2018-08-31 11:52:22 | 2018-09-01 05:38:00 | n |
| 136245 | IIEES | SNGE | N | 25.5 | 0.45 | 2018-08-31 11:52:52 | 2018-09-01 05:38:00 | n |
| 136246 | IIEES | SNGE | E | 29.7 | 0.68 | 2018-08-31 11:52:58 | 2018-09-01 05:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2018-08-31 11:50:55 | -0.1 | y | 191 | 156 | |||
| IIEES | AHRM | N | Sg | E | 2018-08-31 11:51:18 | 0.07 | y | 191 | 156 | |||
| IIEES | NASN | Z | Pn | E | 2018-08-31 11:51:14 | 0.03 | y | 341 | 39 | |||
| IIEES | NASN | N | S | E | 2018-08-31 11:51:51 | -0.04 | y | 341 | 39 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-31 11:51:17 | 0.11 | y | 369 | 352 | |||
| IIEES | YZKH | Z | Pn | E | 2018-08-31 11:51:27 | 0.01 | y | 446 | 60 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-31 11:51:27 | -0.06 | y | 453 | 9 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-31 11:51:28 | 0.04 | y | 457 | 355 | |||
| IIEES | SNGE | Z | Pn | E | 2018-08-31 11:51:45 | -0.09 | y | 594 | 331 | |||
| IIEES | KRBR | Z | Pn | E | 2018-08-31 11:51:47 | -0.06 | y | 606 | 93 | |||
| IIEES | TABS | Z | Pn | E | 2018-08-31 11:52:01 | 0.1 | y | 720 | 59 | |||
