Systems
Event Specification

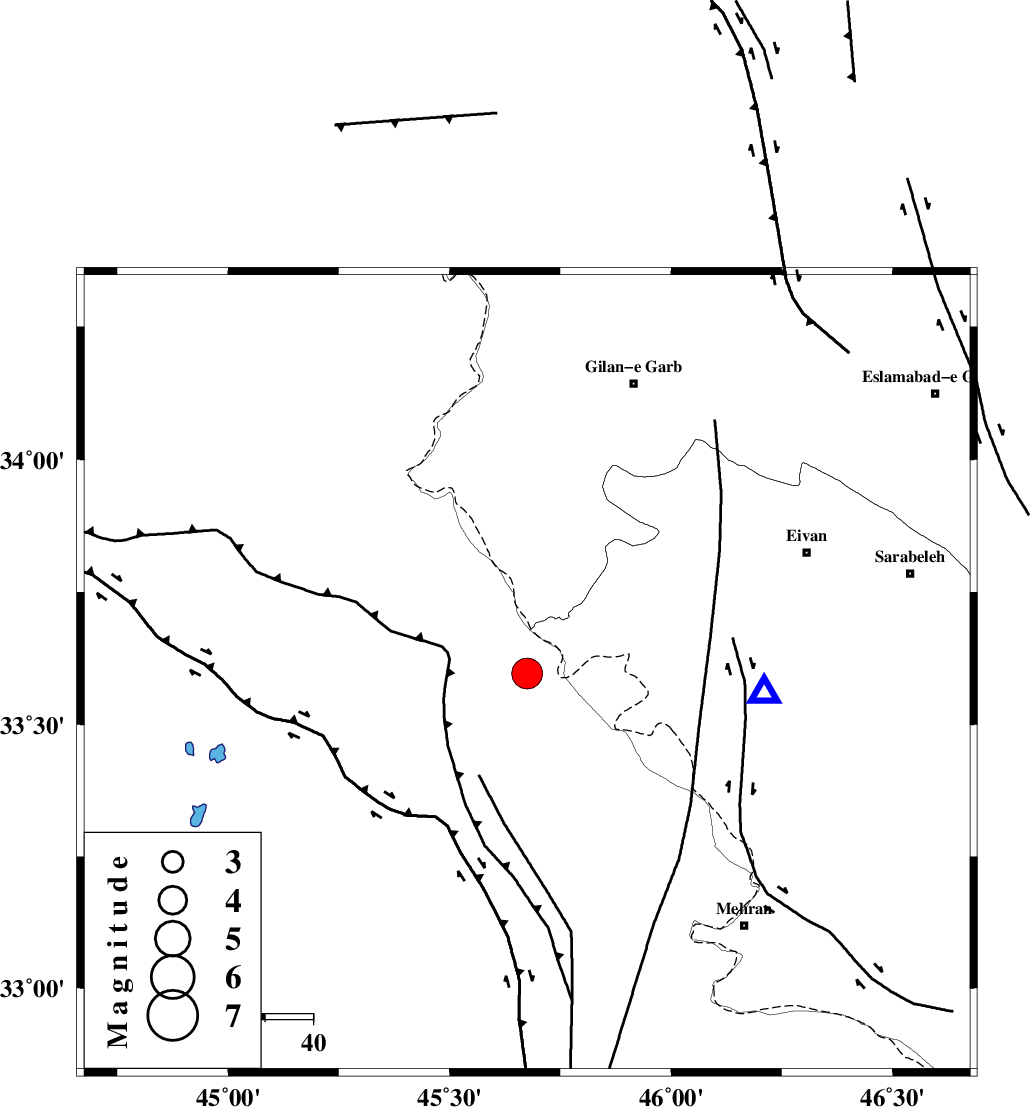

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 4.4
Date & Time (UTC) 2018-09-19 19:29:19.6
Date & Time (Local) 1397/6/28  23:59:19.6
Location Lat:33.597 Lon: 45.675
Region Iraq, 65 km South-West of Gilan-E-Gharb
Nearest Cities
32 km South of Sumar, Kermanshah Province
49 km North West of Salehabad, Ilam Province
55 km South West of Nian, Kermanshah Province
56 km West of Chavar, Ilam Province
57 km South West of Teran, Ilam Province
Depth 15 km
Agency
Faults within 150 km:
ZFF4 (Length: 128 km) , Distance to epicenter: 10 km
MFF7 (Length: 99 km) , Distance to epicenter: 26 km
MFF6 (Length: 144 km) , Distance to epicenter: 74 km
Number of Phases 21
RMS 0.5
Number of Stations 19
Error in Latitude >4.2 km
Error in Longitude 9 km
Error in Depth 9.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
136974IIEESSNGEE 1997.90.662018-09-19 19:30:282018-09-22 11:32:00n
136975IIEESSNGEN 2431.70.662018-09-19 19:30:302018-09-22 11:32:00n
136976IIEESSRSLN 2429.30.652018-09-19 19:30:442018-09-22 11:32:00n
136977IIEESSRSLE 1867.40.532018-09-19 19:30:502018-09-22 11:32:00n
136978IIEESGHVRE 203.40.852018-09-19 19:31:572018-09-22 11:32:00n
136979IIEESGHVRN 101.30.372018-09-19 19:32:162018-09-22 11:32:00n
136980IIEESGIDEN 2060.722018-09-19 19:32:032018-09-22 11:32:00n
136981IIEESGIDEE 164.40.842018-09-19 19:32:122018-09-22 11:32:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESILBAZ Pg E2018-09-19 19:29:280.4y49.586
IIEESSNGEZ Pn E2018-09-19 19:29:55-0.14y22642
IIEESSNGEN Sg E2018-09-19 19:30:23-0.28y22642
IIEESSRSLZ Pn E2018-09-19 19:30:030.26y291356
IIEESSRSLN S E2018-09-19 19:30:350.14y291356
IIEESKHMZZ Pn E2018-09-19 19:30:170.32y39887
IIEESASAOZ Pn E2018-09-19 19:30:190.82y41574
IIEESZNJKZ Pn E2018-09-19 19:30:21-0.09y43838
IIEESGHVRZ Pn E2018-09-19 19:30:330.75y52478
IIEESGIDEZ Pn E2018-09-19 19:30:330y53345
IIEESTHKVZ Pn E2018-09-19 19:30:34-0.28y54160
IIEESCHTHZ Pn E2018-09-19 19:30:36-0.57y56161
IIEESGRMIZ Pn E2018-09-19 19:30:42-0.41y61218
IIEESDAMVZ Pn E2018-09-19 19:30:43-0.71y62067
IIEESMAKUZ Pn E2018-09-19 19:30:47-0.09y645352
IIEESNASNZ Pn E2018-09-19 19:30:500.07y67196
IIEESAHRMZ Pn E2018-09-19 19:31:000.28y749133
IIEESYZKHZ Pn E2018-09-19 19:31:11-1.07y84497
IIEESTABSZ Pn E2018-09-19 19:31:38-0.85y106187
IIEESBNDSZ Pn E2018-09-19 19:31:56-1.82y1218122
IIEESBSRNN Pn E2018-09-19 19:32:05-0.29y127295
